RTP 3021/00 Replacement Solution for SER 3000: Seamless Transition from Legacy Analog I/O Systems

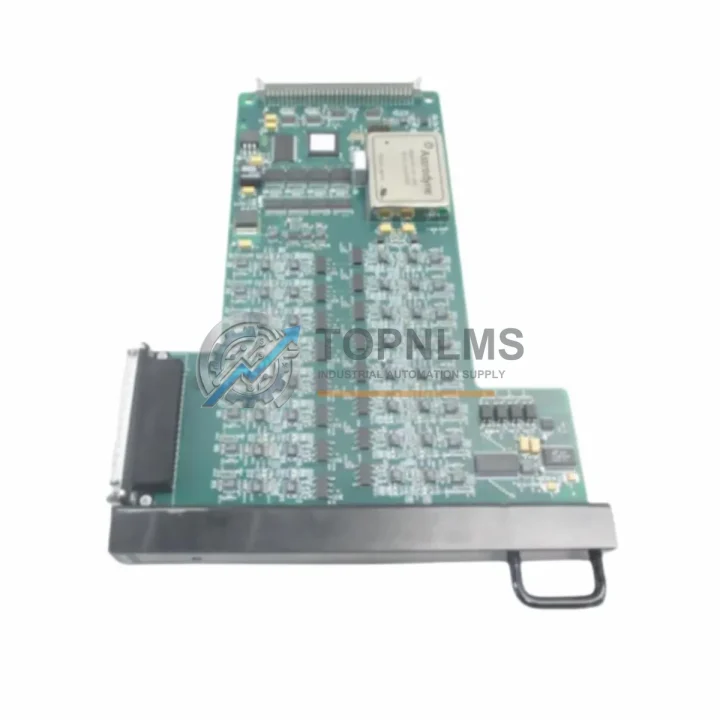

The RTP 3021/00 is a high-density analog I/O module designed for the RTP SER 3000 distributed control platform — a system widely deployed across petrochemical, power generation, oil & gas, and continuous process industries. As original equipment manufacturers phase out legacy SER 3000 components, facilities running aging control architectures face increasing pressure to source verified replacement modules before critical spares inventories are exhausted. TOPNLMS maintains ready stock of the RTP 3021/00 to support both emergency replacement and planned migration projects, with same-week dispatch from our Xiamen warehouse.

The 3021/00 module provides 16-channel analog input capability with configurable signal ranges, making it a direct functional replacement for worn or failed units within existing SER 3000 racks. Its form factor, backplane connector pinout, and firmware compatibility are fully aligned with the SER 3000 chassis, meaning no mechanical modification to the control cabinet is required. Engineers performing a like-for-like swap can retain existing field wiring terminations, preserving the original marshalling cabinet layout and avoiding costly rewiring during a planned or emergency outage window.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RTP 3021/00 replacement rarely occurs in isolation. In most SER 3000 installations, the analog I/O module operates alongside a broader ecosystem of components that may also require attention during a planned maintenance window or system modernization project. The SER 3000 rack chassis itself — typically a 4-slot or 8-slot backplane assembly — must be inspected for backplane connector wear before a new 3021/00 is seated, as degraded connectors can cause intermittent signal faults that are difficult to diagnose after the module swap.

The RTP 3000 Series controller module, which manages scan cycle execution and communicates with the host DCS or SCADA layer, is a frequent co-replacement item. If the controller module firmware version is outdated, it may not correctly initialize a newly installed 3021/00, particularly if the replacement unit carries a later hardware revision. Verifying controller firmware compatibility before installation eliminates the most common cause of post-swap commissioning failures.

Power supply modules within the SER 3000 rack — typically redundant 24 VDC units — should be load-tested when adding or replacing analog I/O modules, as increased channel density can push aging power supplies toward their rated limits. Similarly, the RTP communication interface module, which bridges the SER 3000 rack to Modbus RTU, PROFIBUS DP, or proprietary DCS networks, should be confirmed operational before the new analog module is brought online, since communication faults at the interface level will prevent the 3021/00 from reporting correctly to the control system.

Field-side termination assemblies — including the marshalling terminal blocks and signal isolators used to condition 4–20 mA loops from transmitters — are often overlooked during module replacement. Corroded or loose terminal connections will introduce measurement errors that appear to originate from the new module, leading to unnecessary re-replacement cycles. A systematic loop check using a portable loop calibrator across all 16 channels immediately after installation is strongly recommended.

For facilities planning a broader migration from the SER 3000 platform to a modern DCS or safety instrumented system, the 3021/00 can serve as a bridge component — maintaining analog I/O continuity while the host controller layer is upgraded. In this scenario, the RTP 3000 Series digital output module and the RTP 3000 Series digital input module are typically retained in parallel, allowing phased migration of I/O subsystems without a full plant shutdown. The programming environment for the SER 3000 controller supports online configuration changes, meaning the 3021/00 channel assignments can be remapped without taking the controller offline, significantly reducing migration risk.

Retrofit Guidance FAQ

Q: Can I replace the RTP 3021/00 without modifying existing field wiring?
A: Yes. The 3021/00 uses the same backplane connector and field terminal interface as the original SER 3000 analog I/O modules. Existing 4–20 mA or voltage signal wiring can remain connected to the marshalling terminals throughout the swap. No rewiring is required for a like-for-like replacement.

Q: Do I need to update the SER 3000 controller program after installing the 3021/00?
A: In most cases, no. If the replacement module carries the same hardware revision as the failed unit, the controller will recognize it automatically on the next scan cycle. If the hardware revision differs, a minor configuration update in the SER 3000 programming environment may be required to map the new module’s channel addresses correctly. TOPNLMS can provide the hardware revision details of the specific unit shipped upon request.

Q: Is the 3021/00 compatible with both Modbus RTU and proprietary RTP communication protocols?
A: The 3021/00 itself communicates via the SER 3000 backplane bus and does not directly implement Modbus RTU or other external protocols. External protocol conversion is handled by the SER 3000 communication interface module. As long as the communication interface module remains unchanged, the 3021/00 replacement will be transparent to the host SCADA or DCS system.

Q: What are the physical space requirements for installation?
A: The 3021/00 occupies a single slot in the SER 3000 rack chassis. No additional panel space or DIN rail mounting is required. The module can be inserted and removed with the rack powered on, provided the SER 3000 controller is configured for hot-swap operation.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After seating the 3021/00, confirm the module status LED indicates normal operation. Perform a 16-channel loop check using a calibrated loop calibrator to verify signal accuracy across the full 4–20 mA range. Cross-reference the readings at the SCADA or DCS operator station to confirm end-to-end signal integrity before returning the loop to automatic control.

Q: Can the 3021/00 be used as part of a migration from SER 3000 to a modern DCS platform?
A: Yes. The 3021/00 is well-suited for phased migration strategies where the analog I/O layer is retained while the controller and communication layers are upgraded. Its standard 4–20 mA interface allows signal conditioning equipment and field transmitters to remain in service throughout the migration, reducing total project cost and downtime exposure.

Warranty Assurance

Every RTP 3021/00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of dispatch. Prior to shipment, each module undergoes a functional verification process that includes power-on testing, channel signal integrity checks, and backplane connector inspection. Units that do not pass verification are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, minimizing the impact on plant operations. Our technical support team is available to assist with installation guidance, firmware compatibility questions, and post-installation commissioning support via email and phone.

For time-critical replacement requirements, expedited shipping options are available to most destinations in Asia, Europe, the Middle East, and the Americas. Customers requiring advance replacement units — where the replacement is shipped before the failed unit is returned — may request this arrangement subject to a refundable deposit.

TOPNLMS maintains a dedicated inventory of SER 3000 platform components to support both emergency and planned procurement cycles. Bulk purchase agreements and consignment stock arrangements are available for facilities with ongoing SER 3000 maintenance requirements.
