Rotork MOD-6G Ruggedized Control Module: Industrial Resilience for Harsh Environments

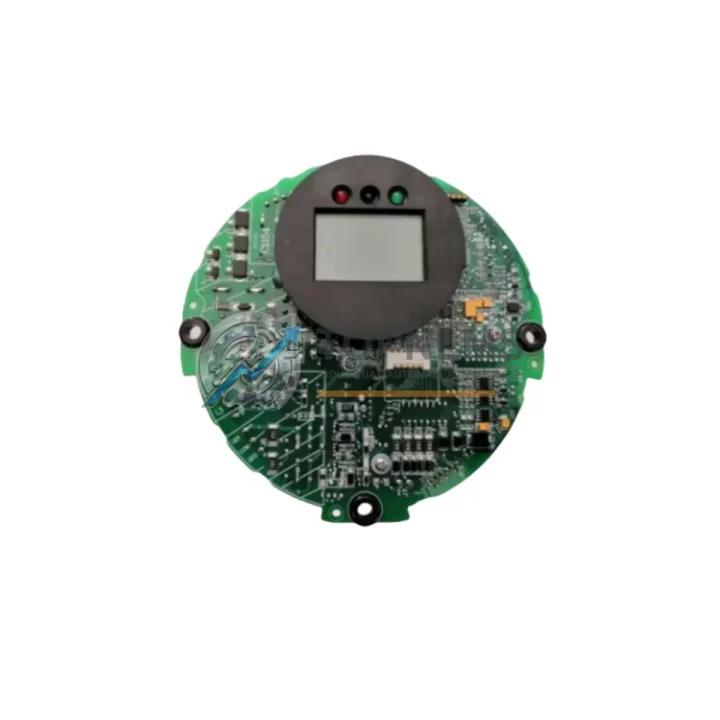

The Rotork MOD-6G is the main PCB control module engineered specifically for the Rotork IQ and IQT series electric actuators — one of the most widely deployed actuator platforms in critical industrial infrastructure worldwide. Designed to operate reliably under extreme thermal cycling, high humidity, persistent vibration, airborne particulates, and intense electromagnetic interference, the MOD-6G delivers the kind of uncompromising control-board performance that process engineers and maintenance teams depend on when downtime is not an option.

In oil and gas terminals, petrochemical refineries, water treatment facilities, power generation plants, and heavy metallurgical operations, the Rotork IQ/IQT actuator is the last line of mechanical defense between a process control command and a physical valve position. The MOD-6G is the intelligence at the heart of that actuator — governing torque management, position feedback, fault diagnostics, and communication with upstream PLC and DCS systems. When this board fails, the entire actuator becomes inoperable. Sourcing a verified, tested replacement quickly is not a convenience — it is a production-critical necessity.

Rugged Specifications Table

Comprehensive Protection Solutions

The MOD-6G does not operate in isolation. In a properly engineered control cabinet or field installation, it works in concert with a full ecosystem of protection, power, and communication components. At the actuator level, the MOD-6G interfaces directly with the Rotork IQ35 and IQT35 actuator bodies, coordinating valve travel limits and torque thresholds through the onboard firmware. The position feedback signals it generates are typically wired back to a Siemens S7-300 or S7-1500 PLC via a Profibus DP communication module such as the Siemens 6GK7 343-1EX30-0XE0, enabling real-time valve status monitoring from the control room.

In DCS-integrated plants running ABB 800xA or Honeywell Experion PKS, the MOD-6G’s HART output connects through HART multiplexers and I/O marshalling panels to the process controller, allowing asset management software to read diagnostic data without interrupting the control loop. For installations where the actuator is powered from a 24 VDC industrial power supply — such as a Phoenix Contact QUINT-PS or Siemens SITOP PSU300M — the MOD-6G’s onboard power regulation circuitry ensures stable operation even during supply voltage fluctuations common in heavy industrial environments.

In safety-instrumented systems (SIS), the MOD-6G-equipped actuator is often paired with a Pilz PNOZ safety relay or a Rockwell GuardLogix safety PLC to implement emergency shutdown (ESD) valve logic. The actuator’s hardwired ESD input, managed by the MOD-6G, ensures that a safety command from the SIS overrides all other control signals — a critical requirement in SIL 2 and SIL 3 rated loops. Supplementary terminal modules and marshalling racks from brands such as Weidmüller or Phoenix Contact are commonly used to organize field wiring to and from the actuator junction box, ensuring clean signal segregation and ease of maintenance.

For installations in high-vibration environments such as compressor stations or pump skids, the MOD-6G is typically mounted within the actuator’s sealed enclosure alongside the Rotork IQ Bluetooth Setting Tool interface board, allowing non-intrusive commissioning and parameter adjustment without opening the enclosure — a significant safety advantage in classified hazardous areas.

Application in Critical Infrastructure

The Rotork MOD-6G sees its most demanding service in the world’s most unforgiving industrial environments. In offshore oil and gas platforms, where salt-laden air, constant mechanical vibration, and explosive atmospheres coexist, the MOD-6G’s sealed installation within the IQ/IQT actuator body provides the isolation necessary to maintain reliable valve control over years of continuous operation. Pipeline operators rely on Rotork IQ-series actuators — and by extension the MOD-6G — to manage block valves, control valves, and emergency isolation valves across hundreds of kilometers of transmission infrastructure.

In thermal and hydroelectric power generation, the MOD-6G governs actuators controlling cooling water flow, steam bypass valves, and fuel feed systems. Any failure in these control loops can trigger turbine trips or boiler shutdowns with significant financial and safety consequences. Maintenance teams at these facilities maintain critical spare parts inventories — including the MOD-6G — to minimize mean time to repair (MTTR) when a board-level fault is diagnosed.

In municipal water treatment and distribution, Rotork IQT actuators with MOD-6G control boards manage inlet valves, filter backwash valves, and chlorination dosing systems. These applications demand continuous, unattended operation with remote monitoring via SCADA systems. The MOD-6G’s Modbus RTU and HART communication capabilities make it directly compatible with the RTUs and PLCs used in water utility SCADA architectures.

In mining and mineral processing, where dust ingress, extreme temperatures, and high-current electrical noise are constant challenges, the MOD-6G’s robust design within the IP68-rated actuator enclosure ensures that slurry pipeline valves and tailings management systems remain under reliable automated control. Metallurgical plants operating continuous casting lines and blast furnace cooling circuits similarly depend on the reliability of Rotork IQ-series actuators to maintain process stability around the clock.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the Rotork MOD-6G?
All MOD-6G units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Our warranty process is straightforward: contact us, describe the fault, and we will arrange replacement or repair without bureaucratic delay. We stand behind every component we ship.

Q2: How is the MOD-6G tested before shipment?
Every MOD-6G unit undergoes a full functional inspection prior to dispatch. This includes visual inspection for physical damage, board-level continuity checks, and where test fixtures are available, powered functional verification. We do not ship untested boards. Our goal is zero DOA (dead-on-arrival) incidents, and our pre-shipment process is designed to achieve that.

Q3: Is the MOD-6G compatible with all IQ and IQT series actuators?
The MOD-6G is the main control PCB for the Rotork IQ and IQT series actuator range. Compatibility depends on the specific actuator generation and firmware revision. We recommend confirming your actuator’s serial number and build date before ordering. Our technical team at [email protected] can assist with cross-referencing your actuator’s documentation to confirm fitment before purchase.

Q4: Can TOPNLMS support long-term or repeat supply of the MOD-6G?
Yes. TOPNLMS maintains ongoing stock of high-demand Rotork IQ/IQT spare parts including the MOD-6G. For maintenance contracts, planned shutdowns, or multi-site spare parts programs, we can discuss reserved stock arrangements and volume pricing. Contact us at [email protected] or +86 18359293191 to discuss your procurement requirements.
