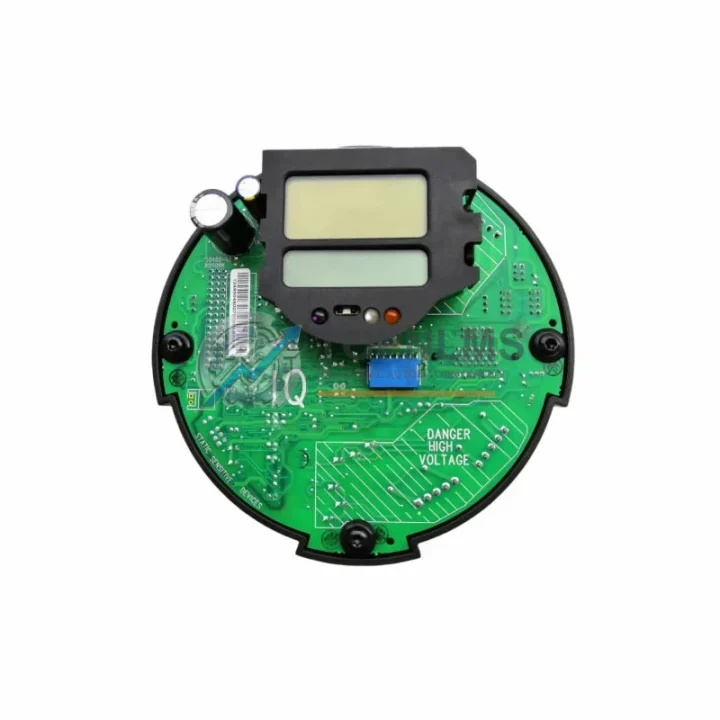

Rotork IQT MOD6G Replacement Module for IQT Series

Product Overview

Rotork IQT MOD6G Replacement Module for IQT Series: Smooth Transition, Zero Compromise

When a Rotork IQT MOD6G quarter-turn electric actuator module reaches end-of-life or fails unexpectedly on a critical valve automation line, every hour of downtime translates directly into production loss and safety risk. The IQT MOD6G is a core component of Rotork’s IQT Series intelligent quarter-turn actuator platform — a system widely deployed across oil and gas pipelines, water treatment facilities, power generation plants, and chemical processing sites worldwide. TOPNLMS maintains verified stock of the IQT MOD6G to support urgent replacement, planned maintenance, and system upgrade projects, ensuring your IQT Series actuators return to full operational status with minimal disruption.

The IQT Series platform was engineered by Rotork to deliver precise quarter-turn valve control with integrated intelligence, non-intrusive commissioning, and robust environmental protection. The MOD6G module specifically provides the modular interface and control logic that governs actuator positioning, torque management, and feedback signaling within the IQT assembly. Whether you are replacing a failed unit on an existing IQT actuator body or upgrading an older IQ Series installation to the IQT platform, the MOD6G integrates directly into the established IQT mechanical and electrical architecture — preserving your existing wiring infrastructure, conduit entries, and valve mounting arrangements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IQT MOD6G replacement or IQ-to-IQT migration rarely involves a single component in isolation. In practice, field engineers upgrading from older Rotork IQ Series actuators to the IQT platform will also evaluate the Rotork IQ3 actuator body as the mechanical host for the new module, ensuring the quarter-turn torque output and valve interface remain correctly matched. Where digital communication is being introduced for the first time, the Rotork Pakscan P3 field control unit or a compatible Profibus DP segment coupler is typically added to the control loop to enable centralized valve management from the DCS or SCADA layer.

On the control cabinet side, the Rotork IQT actuator’s 4–20 mA position feedback signal integrates cleanly with Yokogawa CENTUM VP or Honeywell Experion PKS DCS I/O cards, eliminating the need for additional signal converters in most installations. For sites running Modbus RTU networks, the IQT MOD6G communicates natively with Schneider Electric Modicon M340 or M580 PLCs via standard RS-485 wiring, making it straightforward to incorporate the actuator into an existing automation backbone without protocol gateways.

Where the existing cable infrastructure uses older analogue discrete wiring, a Pepperl+Fuchs signal isolator or a Phoenix Contact MINI Analog signal conditioner can bridge the legacy signal format to the IQT’s digital input requirements, preserving the original cable runs and reducing installation labor. Terminal blocks from the Weidmüller KLIPPON series or Phoenix Contact PTFIX distribution blocks are commonly used to reorganize the actuator wiring within the control cabinet during the upgrade, providing clean, labeled termination points that simplify future maintenance.

For sites requiring hazardous area compliance, the IQT MOD6G is available in Ex d (flameproof) and Ex e (increased safety) variants, and is typically paired with Rotork’s intrinsically safe Bluetooth setting tool or the IQ-Insight handheld communicator for non-intrusive commissioning without hot-work permits. This combination is particularly valued in offshore platforms, LNG terminals, and chemical plants where open-flame restrictions apply during live commissioning.

Retrofit Guidance FAQ

Q1: Can the IQT MOD6G be installed directly onto an existing Rotork IQ Series actuator body without mechanical modification?
The IQT MOD6G is designed for the IQT actuator platform and is not a direct mechanical drop-in for the older IQ Series body. However, Rotork provides IQ-to-IQT conversion kits that adapt the IQ body to accept the IQT module assembly. In most cases, the valve mounting flange, drive coupling, and conduit entries remain unchanged, significantly reducing retrofit labor. TOPNLMS can advise on the correct conversion kit based on your existing IQ actuator model and size.

Q2: Will my existing Profibus DP or Modbus RTU network wiring be compatible with the IQT MOD6G?
Yes — the IQT MOD6G supports Profibus DP and Modbus RTU as factory-configured communication options. If your existing network uses standard RS-485 twisted-pair cabling with correct termination resistors, the IQT module connects directly to the segment without rewiring. GSD files for Profibus integration are available from Rotork and can be imported into your DCS or PLC engineering tool (e.g., Siemens TIA Portal, ABB 800xA) to configure the device profile.

Q3: How is the IQT MOD6G commissioned after installation, and does it require specialist tools?
The IQT Series uses non-intrusive commissioning via Rotork’s infrared setting tool or Bluetooth-enabled IQ-Insight app — no cover removal is required during setup, which is a significant safety advantage in hazardous areas. Limit positions, torque settings, and control parameters are all configured digitally. TOPNLMS provides basic commissioning guidance documentation with each unit to support your site engineers during first-time IQT deployment.

Q4: What if the IQT MOD6G I receive does not match my system’s control signal requirements?
All IQT MOD6G units supplied by TOPNLMS are pre-tested and verified against their specification before dispatch. If a compatibility issue arises within the 12-month warranty period due to a product defect or specification mismatch on our part, we provide full replacement support and technical assistance. We recommend confirming your control signal type (analogue 4–20 mA, discrete on/off, or fieldbus) and supply voltage before ordering so we can verify the correct module variant is allocated to your shipment.

Warranty Assurance

Every Rotork IQT MOD6G unit dispatched by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including power-on testing, communication interface checks, and position feedback signal validation. Units that do not meet specification are quarantined and not dispatched.

Our warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, with priority processing for customers on active production sites. Our technical team responds to warranty and compatibility inquiries within one business day.

For urgent replacement requirements, TOPNLMS offers expedited dispatch from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight options available depending on your timeline and budget. Export documentation, commercial invoices, and packing lists are prepared to comply with international customs requirements, supporting smooth clearance into your destination country.

Long-term supply continuity is a core commitment at TOPNLMS. We maintain ongoing procurement relationships with authorized Rotork distributors and certified secondary-market sources to ensure IQT MOD6G availability even as the product matures in its lifecycle. Customers with multi-unit requirements or scheduled maintenance programs are encouraged to contact us for volume pricing and reserved stock arrangements.
