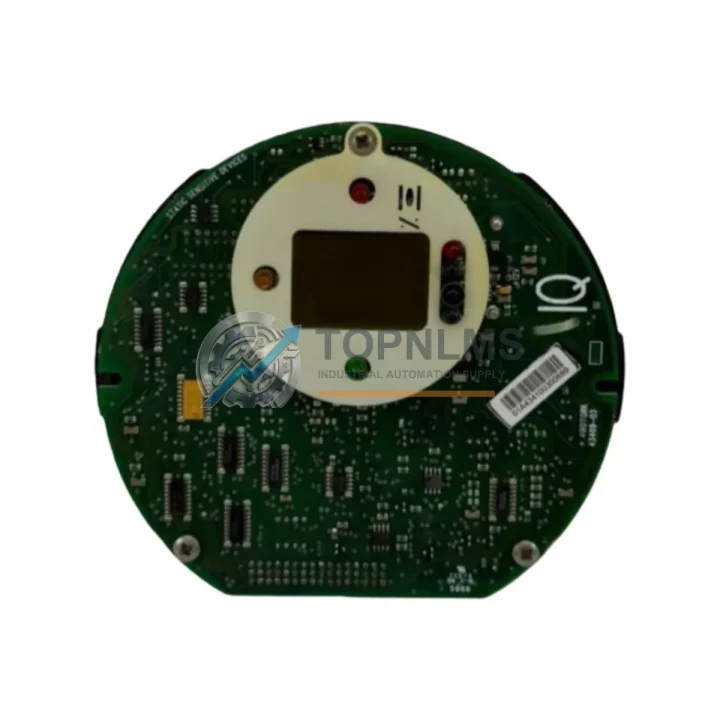

ROTORK 43409-03 Replacement for IQ Series Actuator

Product Overview

ROTORK 43409-03 Replacement for IQ Series Actuator: Seamless Transition & Legacy System Compatibility

When your ROTORK IQ Series electric actuator control board fails or reaches end-of-life, unplanned downtime in valve automation systems can cascade across your entire process loop. The ROTORK 43409-03 Actuator Control PCB is the direct replacement solution engineered to restore full actuator functionality with minimal intervention — preserving your existing wiring harness, torque switch settings, and position feedback calibration without requiring a full actuator overhaul.

This control PCB is the core intelligence of the ROTORK IQ Series actuator platform, governing motor direction, torque limiting, position sensing, and local/remote control switching. Whether you are replacing a failed board in a live plant environment or building a critical spare inventory for your maintenance team, the 43409-03 is the correct OEM-specification component to specify.

Facilities migrating from older ROTORK A-Range or GP-Range actuators to the IQ Series architecture will find that the 43409-03 PCB supports the same 24 VDC logic supply standard used across the IQ platform, simplifying integration into existing MCC panels and DCS marshalling cabinets. The board interfaces directly with the ROTORK IQ Setting Tool and IQ-Insight software, allowing engineers to upload and verify configuration parameters without re-commissioning the actuator from scratch.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IQ Series actuator control board replacement rarely involves the PCB alone. In practice, maintenance engineers and automation integrators typically address several adjacent components during the same planned outage window to maximize system reliability and minimize future call-outs.

When replacing the 43409-03 control PCB, it is common practice to simultaneously inspect and, where necessary, replace the ROTORK IQ Series torque switch assembly, which works in tandem with the control board to protect the actuator motor from overload. If the actuator has been in service for more than five years, the ROTORK IQ Series position indicator module — a separate plug-in unit that mounts alongside the control PCB — should also be evaluated for wear or calibration drift.

For sites running PROFIBUS DP or Modbus RTU fieldbus architectures, the ROTORK IQ Series PROFIBUS communications card (typically the Mk2 or Mk3 variant) must be confirmed compatible with the replacement PCB revision before installation. Mismatched firmware revisions between the control board and the comms card are a common source of post-replacement communication faults on DCS-integrated valve networks.

Facilities upgrading from hardwired remote control to a networked architecture should consider pairing the 43409-03 replacement with a ROTORK Pakscan field unit or a HART-compatible position transmitter module, enabling integration into existing Emerson DeltaV, Honeywell Experion, or Yokogawa CENTUM VP DCS platforms without replacing the actuator body.

Where the actuator is installed in a hazardous area (Zone 1 or Zone 2 classified), the associated ROTORK IQ Ex Series intrinsically safe barrier or Zener barrier unit in the control room marshalling cabinet should be verified for compatibility with the replacement PCB’s input impedance characteristics. Signal isolators — such as a DIN-rail mounted 4–20 mA loop isolator — are frequently added at this stage to protect the new board from ground loop interference in older cable installations.

For multi-actuator installations where several IQ Series units share a common MCC panel, it is advisable to audit the 24 VDC DIN-rail power supply module feeding the control PCBs. An aging or undersized power supply can cause intermittent resets on a newly installed control board, mimicking a faulty replacement. Upgrading to a current-rated SITOP or Phoenix Contact PSU at the same time eliminates this variable from post-commissioning troubleshooting.

Finally, if the actuator is connected to a SCADA system via a ROTORK IQ-Insight data logger or Bluetooth Setting Tool, ensure the replacement PCB’s firmware version is registered in the asset management database to maintain audit trail continuity — a requirement increasingly enforced under IEC 62443 cybersecurity frameworks for industrial control systems.

Retrofit Guidance FAQ

Q: Can I replace the 43409-03 PCB without re-wiring the actuator terminal block?
A: Yes. The 43409-03 is a direct form-fit-function replacement for the IQ Series control board. The terminal block connector is identical to previous PCB revisions, so existing field wiring — including remote open/close/stop signals, position feedback, and torque switch inputs — can be reconnected without modification. Label all wires before removal and photograph the terminal block as a reference.

Q: Do I need to re-calibrate position limits after installing the replacement board?
A: In most cases, yes. The position limit settings (open and closed travel limits) are stored on the PCB itself, not in the actuator mechanism. After installing the 43409-03, use the ROTORK IQ Setting Tool or IQ-Insight software to re-enter the open and closed position limits, torque settings, and control mode parameters. If a configuration backup was saved prior to the original board failure, parameters can be restored directly from the Setting Tool memory.

Q: Is the 43409-03 compatible with PROFIBUS DP and Modbus RTU communication cards?
A: Yes, provided the communications card firmware is compatible with the PCB revision. Confirm the comms card model and firmware version before installation. ROTORK IQ Series PROFIBUS DP and Modbus RTU cards are field-replaceable and can be updated independently of the control PCB.

Q: What is the physical installation procedure?
A: Isolate the actuator from power (both motor supply and 24 VDC logic supply). Remove the actuator cover per the IQ Series maintenance manual. Disconnect the PCB connector and remove the four mounting screws. Install the replacement 43409-03 PCB, reconnect the harness, and restore power. Perform a full open/close cycle test before returning the valve to service.

Q: Can this PCB be used in hazardous area (Ex) rated actuators?
A: The 43409-03 is specified for standard IQ Series actuators. For IQ Ex Series (ATEX/IECEx certified) actuators, confirm the Ex certification marking on the replacement PCB before installation. Using a non-Ex rated board in a certified Ex actuator will void the hazardous area certification.

Q: What if the replacement board does not resolve the fault?
A: If the actuator remains non-functional after PCB replacement, the fault may reside in the motor winding, torque switch, position encoder, or power supply. Our technical team can assist with fault isolation guidance. All boards supplied by TOPNLMS are pre-tested before dispatch; a DOA (dead on arrival) claim will be processed under the 12-month warranty policy.

Warranty Assurance

Every ROTORK 43409-03 Actuator Control PCB supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Our pre-shipment testing protocol includes functional power-on verification and visual inspection for component damage, solder joint integrity, and connector condition. Each unit is individually packaged in anti-static ESD-safe packaging with a serialized test record.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3 business days of claim confirmation. Defective units must be returned in original packaging with the original test record. Warranty coverage includes manufacturing defects and functional failures under normal operating conditions; it excludes damage caused by incorrect installation, overvoltage, or physical impact.

For urgent plant maintenance requirements, TOPNLMS maintains a ready stock of the 43409-03 and can arrange same-day dispatch from our Xiamen warehouse for orders confirmed before 14:00 CST. Express international shipping via DHL, FedEx, or UPS is available to minimize actuator downtime on critical process lines.

Our after-sales support team is available Monday–Saturday, 08:00–18:00 CST, to assist with installation queries, configuration guidance, and warranty claims.
