Rorze RD-023MS Replacement/Upgrade Solution for RD Series

Product Overview

Rorze RD-023MS Replacement/Upgrade Solution for RD Series: Smooth Migration from Legacy Stepper Systems

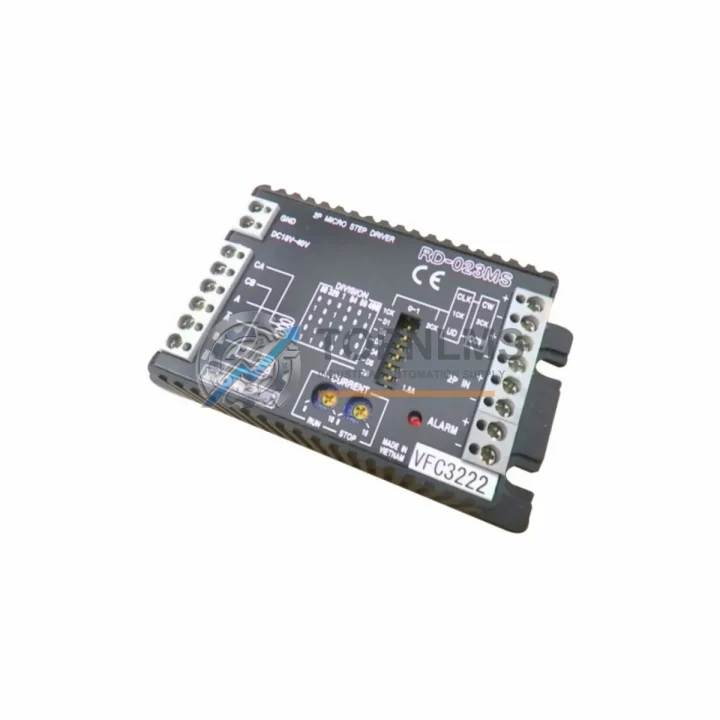

The Rorze RD-023MS is a compact microstepping drive designed for precision pulse/direction stepper motor control within the Rorze RD Series platform. As semiconductor handling equipment, wafer transport systems, and precision automation lines age, the RD-023MS has become one of the most frequently requested replacement and upgrade components for engineers managing end-of-life or discontinued stepper drive modules. Whether you are replacing a failed unit, upgrading from an earlier RD Series variant, or migrating an entire motion control axis to a more maintainable configuration, the RD-023MS offers a direct-fit solution that minimises engineering rework and production downtime.

Facilities running legacy Rorze robot controllers — including the RC-series and earlier RD-family motion boards — will find that the RD-023MS retains the same pulse/direction (P/D) command interface, making it electrically compatible with existing PLC output cards and motion controllers without firmware changes. The drive accepts standard 5 V differential or single-ended step/direction signals, which aligns with the output specifications of common Mitsubishi MELSEC QD75 positioning modules, Omron CJ1W-NC series, and Panasonic FP-series pulse output units already installed in many facilities.

Physical installation follows the same DIN-rail or panel-mount footprint as predecessor RD Series drives, so control cabinet space allocation and cable routing remain unchanged. The motor connector pinout is preserved across the RD Series generation, meaning existing motor cables — typically 4-wire or 8-wire configurations for 2-phase hybrid stepper motors — can be reconnected directly without rewiring. Power supply requirements (24 VDC logic, motor bus voltage within the RD Series specification) are compatible with existing Rorze-approved switching power supply modules already installed in the cabinet.

For sites performing a broader system refresh, the RD-023MS integrates cleanly alongside other RD Series components. Engineers frequently pair this drive with the Rorze RD-013MS (lower-current axis) or Rorze RD-033MS (higher-torque axis) to standardise a multi-axis cabinet on a single drive family, simplifying spare-parts inventory and technician training. Communication with the host controller is handled at the PLC or motion controller level via the existing pulse interface, so no additional fieldbus modules or protocol converters are required for a like-for-like replacement.

When migrating from a discontinued or damaged drive, the commissioning sequence is straightforward: match the microstep resolution DIP-switch settings to the original configuration (typically recorded in the machine’s maintenance log or readable from the surviving axis), reconnect motor and power wiring, and verify direction logic with a jog command before returning the axis to automatic mode. No re-teaching of robot positions is required if the microstep resolution and motor pairing are preserved, which is a critical advantage for semiconductor and flat-panel display handling lines where recipe positions are tightly toleranced.

For facilities managing a larger retrofit scope — for example, replacing an entire Rorze robot arm’s motion system — the RD-023MS is commonly deployed alongside Rorze RC-series robot controllers, Rorze linear stage assemblies, and compatible encoder feedback modules where closed-loop verification is required. Signal isolation between the PLC output and the drive input can be achieved with standard DIN-rail signal isolators if the existing I/O card operates at a different voltage level, a common requirement when integrating with older Siemens S7-300 or Allen-Bradley MicroLogix systems that were not originally designed for Rorze peripherals.

Procurement lead times for the RD-023MS from the original manufacturer can extend to several weeks or months for discontinued or low-volume production runs. TOPNLMS maintains verified stock of the RD-023MS sourced through authorised industrial distribution channels, with each unit inspected and function-tested prior to shipment. Orders are processed and dispatched from Xiamen within 1–3 business days, with DHL Express, FedEx International Priority, and sea-freight consolidation available depending on urgency and destination.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RD-023MS migration rarely involves the drive alone. Engineers upgrading a Rorze-based motion axis typically address the full signal chain and power distribution at the same time. The Rorze RD-013MS covers lower-current axes in the same cabinet, while the Rorze RD-033MS handles higher-torque requirements — standardising the entire cabinet on one drive family. Logic power is typically supplied by a 24 VDC DIN-rail switching power supply (Omron S8VS or equivalent), and motor bus power by a dedicated regulated DC supply matched to the RD Series motor bus specification.

Pulse output to the drive originates from the host motion controller — commonly a Mitsubishi QD75MH positioning module or an Omron CJ1W-NC413 pulse output unit — via shielded twisted-pair cable. Where signal integrity is a concern in electrically noisy environments, a DIN-rail signal isolator (Phoenix Contact or equivalent) is inserted between the PLC output and the drive input. Motor cables are standard 4-conductor shielded cable terminated with the Rorze-specified connector; if the original cable is damaged, a replacement cable assembly using Rorze-compatible motor connectors can be fabricated to the original length.

For sites also refreshing the HMI layer, a Proface GP4000 series HMI or Mitsubishi GOT2000 series panel communicates with the host PLC over Ethernet or RS-232C, providing operator visibility into axis status without requiring changes to the drive-level wiring. Where the Rorze robot controller interfaces to a higher-level EFEM or cluster tool controller, the existing RS-232C or Ethernet communication cable between the Rorze RC controller and the host remains unchanged.

Retrofit Guidance FAQ

Q: Do I need to rewire the motor cable when replacing with the RD-023MS?
A: No. The RD-023MS uses the same motor connector pinout as predecessor RD Series drives. Reconnect the existing 4-wire or 8-wire motor cable directly.

Q: Will my existing PLC pulse output card work without modification?
A: Yes, provided the output card generates 5 V differential or single-ended pulse/direction signals. No firmware changes or additional interface modules are required.

Q: How do I set the microstep resolution after replacement?
A: Match the DIP-switch settings on the RD-023MS to the original drive’s configuration. This information is typically recorded in the machine maintenance log. If unavailable, the original setting can often be inferred from the motion controller’s electronic gear ratio parameters.

Q: Will robot teach positions need to be re-entered?
A: Not if the microstep resolution and motor pairing are preserved. The axis will return to the same positional reference after homing.

Q: What if my control cabinet uses a different logic voltage (e.g., 12 V or 3.3 V)?
A: Insert a DIN-rail signal isolator or level converter between the PLC output and the RD-023MS input to match the 5 V signal requirement.

Q: Is the RD-023MS compatible with Siemens S7 or Allen-Bradley PLCs?
A: Yes, via the pulse/direction interface. A signal isolator may be required depending on the PLC output card’s voltage and current specifications.

Warranty Assurance

Every Rorze RD-023MS unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional inspection including power-on verification and signal interface check. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a refund in accordance with the agreed terms — minimising your exposure to extended downtime.

Orders are processed within 1–3 business days from our Xiamen warehouse. International shipping is available via DHL Express, FedEx International Priority, and sea-freight consolidation. A packing list and commercial invoice are provided with every shipment to support customs clearance. For urgent requirements, please contact our sales team directly to confirm real-time stock availability and expedited dispatch options.

TOPNLMS specialises in sourcing and supplying hard-to-find industrial automation components for semiconductor, electronics manufacturing, and general factory automation applications. Our technical team can assist with cross-referencing, compatibility verification, and retrofit planning for Rorze and related automation platforms.
