Robot TZ865A BU768A390G51 Replacement/Upgrade Solution

Product Overview

Robot TZ865A BU768A390G51 Replacement/Upgrade Solution: Seamless Transition from Legacy Motion Control Systems

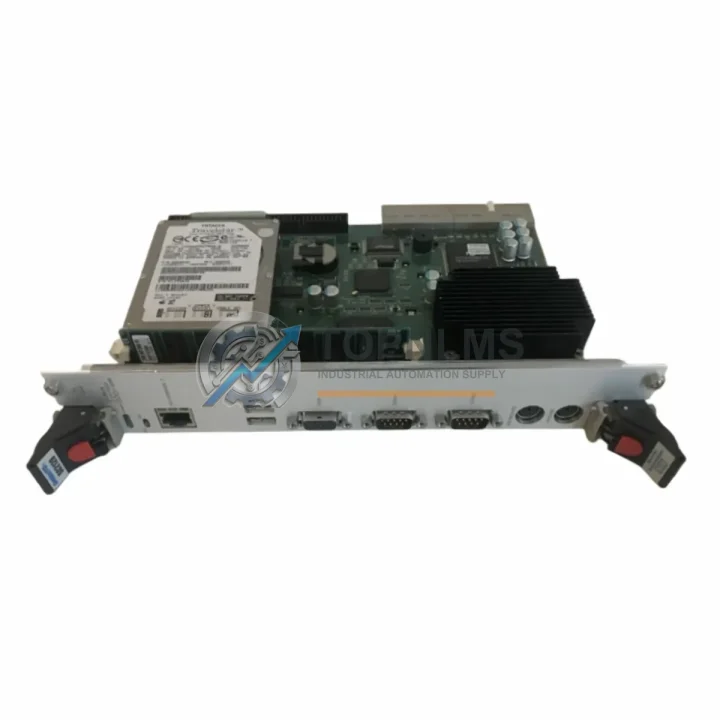

The Robot TZ865A BU768A390G51 is a high-performance motion control board engineered for industrial automation environments where reliability, precision, and system continuity are non-negotiable. For facilities currently operating aging or discontinued motion control platforms, this board represents a proven, drop-in-compatible upgrade path that minimizes engineering rework, reduces downtime risk, and extends the operational life of existing control cabinet infrastructure.

Whether your plant is running an older generation Robot BU768A-series motion controller, a legacy servo drive coordination system, or a discontinued third-party motion control card, the TZ865A BU768A390G51 is designed to integrate with minimal disruption. Its physical form factor aligns with standard DIN-rail and panel-mount configurations common across Robot-series control cabinets, allowing direct installation without structural modification to the enclosure.

From a wiring compatibility standpoint, the TZ865A BU768A390G51 retains the standard terminal block layout and connector pinout conventions used across the BU768A390 platform family. Field engineers performing the swap will find that existing cable harnesses, shielded signal lines, and power supply wiring can typically be reused without re-termination, significantly reducing on-site labor hours and the risk of wiring errors during commissioning. Where legacy systems used 24VDC logic power rails, the TZ865A BU768A390G51 maintains full compatibility with the same supply architecture, eliminating the need for auxiliary power conversion modules.

On the communications side, the board supports the standard serial and fieldbus protocols prevalent in Robot-series motion systems. Facilities using RS-232, RS-485, or proprietary Robot communication buses for coordinating servo amplifiers, encoder feedback modules, and I/O expansion racks will find the TZ865A BU768A390G51 fully compatible without protocol gateway additions. This is particularly important in multi-axis systems where the motion controller must synchronize with servo drives, spindle controllers, and position feedback devices across a shared communication backbone.

For sites migrating from a discontinued Robot motion control card to the TZ865A BU768A390G51, the program migration process is straightforward. Existing motion programs, axis parameter tables, and PID tuning data stored in the legacy controller can be exported and re-imported into the replacement board using the standard Robot programming interface. No full reprogramming from scratch is required in most retrofit scenarios, which is a critical advantage for production environments where engineering resources are limited and machine downtime must be minimized.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the Robot TZ865A BU768A390G51 rarely involves the motion control board in isolation. In practice, the retrofit process touches a broader ecosystem of components within the same control cabinet and machine architecture. During the upgrade, engineers commonly address the servo drive interface, replacing or reconfiguring the associated Robot servo amplifier or drive unit to ensure synchronized axis control with the new board. The encoder feedback module — whether a separate incremental encoder interface card or an integrated absolute encoder decoder — must be verified for signal compatibility with the TZ865A’s input specifications.

In systems where the motion controller communicates with a PLC or DCS for higher-level sequencing, the fieldbus interface module connecting the two layers requires attention. Facilities using a Robot I/O expansion rack alongside the motion controller will need to confirm that the I/O module addressing and signal mapping remain consistent after the board swap. Power distribution within the cabinet — including the 24VDC power supply module feeding the logic circuits and the separate power rail for the servo drive section — should be inspected and load-verified to ensure the new board’s power draw is within the existing supply’s capacity.

For multi-axis installations, the axis expansion card or secondary motion control module coordinating additional servo channels must be checked for firmware and communication compatibility with the TZ865A BU768A390G51. The programming cable or USB-to-serial adapter used to connect a laptop to the Robot controller for parameter upload and diagnostics is an essential tool during commissioning — ensure the correct Robot programming cable variant is available on-site before the scheduled maintenance window. In systems with an HMI panel displaying machine status and operator controls, the communication link between the HMI and the motion controller should be re-established and tested after the board replacement. Finally, signal isolators or terminal relay modules used to interface the motion controller’s digital outputs with high-voltage actuators or safety circuits should be inspected to confirm signal level compatibility with the replacement board’s output specifications.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring harness when replacing the legacy board with the TZ865A BU768A390G51?
A: In the majority of BU768A390-series retrofit cases, yes. The TZ865A BU768A390G51 retains the same terminal block layout and connector pinout as the prior generation, allowing existing cable harnesses to be reconnected directly. Always verify against the specific revision of your legacy board’s wiring diagram before proceeding.

Q: Do I need to rewrite my motion control program from scratch?
A: No. Existing motion programs, axis parameter tables, and tuning data can be exported from the legacy controller and imported into the TZ865A BU768A390G51 using the standard Robot programming interface. Minor parameter adjustments may be required for axis scaling or communication timing, but full reprogramming is not typically necessary.

Q: Is the TZ865A BU768A390G51 compatible with my existing RS-485 communication network?
A: Yes. The board supports RS-232 and RS-485 serial communication as well as the Robot proprietary fieldbus protocol used in BU768A-series systems. No protocol converter or gateway is required for standard Robot-series communication architectures.

Q: Will the board fit in my existing control cabinet without modification?
A: The TZ865A BU768A390G51 shares the same physical form factor and mounting dimensions as the BU768A390-series predecessor. Standard panel-mount and DIN-rail installations do not require cabinet structural modification. Verify clearance for any adjacent modules before installation.

Q: What should I check regarding the power supply before installation?
A: Confirm that the existing 24VDC logic power supply has sufficient current capacity to support the TZ865A BU768A390G51’s rated power draw. In most BU768A390-series cabinets, the existing power supply module is adequately sized, but load verification is recommended — particularly in cabinets where additional I/O modules or communication cards have been added since the original installation.

Q: How do I handle encoder feedback compatibility?
A: The TZ865A BU768A390G51 supports both incremental and absolute encoder input interfaces consistent with the BU768A390 platform. Verify the encoder signal voltage level and line driver type match the board’s input specifications. In most cases, existing encoder cables and connectors can be reused without modification.

Warranty Assurance

Every Robot TZ865A BU768A390G51 supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm board-level operation, communication interface integrity, and power supply performance within specification.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for production-critical applications. Our after-sales response team is reachable directly via email and phone to coordinate replacement logistics, technical documentation, and on-site support guidance. We maintain stock of the TZ865A BU768A390G51 and related BU768A-series components to support rapid dispatch — typically within 1–3 business days for in-stock units, with expedited shipping options available for urgent downtime recovery situations.

For B2B procurement, we issue formal invoices, packing lists, and test certificates upon request. All units are packaged in anti-static protective packaging with foam cushioning to prevent transit damage. Customs documentation for international shipments is prepared in compliance with standard export requirements from Xiamen, China.

To request a quote, confirm stock availability, or discuss technical compatibility for your specific retrofit application, contact our team directly:

📧 [email protected]
📞 +86 18359293191
