ROBICON A1A460A68.23M Replacement for Perfect Harmony Drive

Product Overview

ROBICON A1A460A68.23M Replacement for Perfect Harmony Drive: Seamless Transition & Legacy System Compatibility

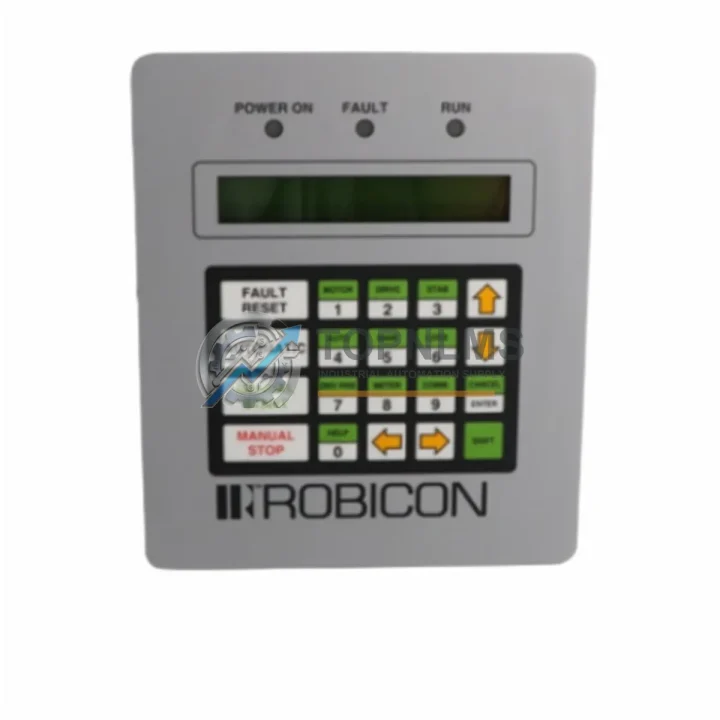

The ROBICON A1A460A68.23M is the original operator keypad interface panel designed for the Perfect Harmony series medium-voltage (MV) variable frequency drives. As aging Perfect Harmony installations approach end-of-life or face discontinued spare parts availability, plant engineers and procurement teams increasingly require a verified, drop-in replacement that preserves existing wiring, communication architecture, and control cabinet layout without forcing a full drive overhaul.

This replacement unit is sourced, tested, and shipped from Xiamen with a 12-month warranty. It is intended for facilities operating Perfect Harmony MV drive systems in power generation, petrochemical, water treatment, mining, and heavy industrial applications where unplanned downtime carries significant operational cost.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the A1A460A68.23M operator panel is rarely an isolated action. In most Perfect Harmony retrofit projects, the keypad interface replacement is part of a broader drive modernization effort. During commissioning, engineers typically audit the entire control cabinet to identify other components approaching end-of-life or already discontinued.

In systems where the Perfect Harmony drive’s main control board — such as the A1A460A68 series control PCB — has developed communication faults, replacing the operator panel alone may not restore full HMI functionality. The control board and keypad interface share the same RS-485 communication bus, so both components should be verified during the retrofit. Similarly, the A1A460A68.23 fiber optic interface board, which links the cell bypass and power cell communication network to the main controller, is a common co-replacement item when the drive has experienced intermittent cell fault alarms.

For facilities upgrading from older Perfect Harmony H-Series or NXG controller platforms, the transition often involves replacing the NXG operator interface alongside the keypad panel to maintain a consistent HMI experience across multiple drive cabinets on the same production line. The NXG control board communicates with the operator panel via the same proprietary bus, and mismatched firmware versions between the control board and the keypad panel are a known source of display errors after partial replacements.

Power cell modules — the fundamental building blocks of the Perfect Harmony cascaded H-bridge topology — are another frequent co-procurement item. When a plant is already sourcing a replacement A1A460A68.23M panel, procurement teams often consolidate orders to include one or two spare power cell modules to maintain a local buffer stock, reducing future emergency lead times. The cell bypass module, which enables the drive to continue operating at reduced capacity when a power cell fails, is also commonly stocked alongside the operator interface panel.

On the control cabinet wiring side, the fiber optic cables connecting individual power cells to the cell communication board are subject to degradation in high-temperature environments. These are typically replaced during the same maintenance window as the operator panel to avoid a second cabinet shutdown. The 24 VDC auxiliary power supply module, which feeds the control electronics including the operator panel, should also be load-tested during the retrofit — a failing PSU is a common root cause of intermittent keypad lockups that are often misdiagnosed as operator panel failures.

For sites integrating the Perfect Harmony drive into a DCS or SCADA environment, the Profibus DP or Modbus RTU communication option card may require reconfiguration or replacement when the operator panel is swapped. The communication option card retains drive parameter sets and network node addresses, so verifying its firmware compatibility with the replacement panel firmware is a critical commissioning step. In some installations, a signal isolator or RS-485 repeater is installed between the drive and the DCS marshalling cabinet to extend communication distances — these should be inspected and replaced if signal integrity issues are detected during post-replacement testing.

Retrofit Guidance FAQ

Q: Will I need to re-enter all drive parameters after replacing the A1A460A68.23M panel?
A: In most cases, no. The Perfect Harmony drive stores its parameter set on the main NXG control board, not on the operator panel. Replacing the keypad interface panel does not erase drive parameters. However, it is best practice to export a parameter backup via the NXG software tool before any hardware replacement.

Q: Is the wiring connector on the replacement panel identical to the original?
A: Yes. The replacement unit uses the same OEM connector pinout. No rewiring, adapter harnesses, or cable extensions are required. The panel connects directly to the existing ribbon cable or connector assembly in the cabinet door.

Q: What communication protocols does this panel support?
A: The A1A460A68.23M interfaces with the Perfect Harmony drive controller via the proprietary RS-485-based internal communication bus. It does not directly handle external fieldbus protocols (Profibus, Modbus, EtherNet/IP) — those are managed by the drive’s communication option card. The replacement panel is fully compatible with the internal bus used by all standard Perfect Harmony NXG controller variants.

Q: Does the replacement panel fit the existing cabinet cutout?
A: Yes. The replacement unit maintains the same physical dimensions and mounting hole pattern as the original A1A460A68.23M. No cabinet modification, additional brackets, or gasket changes are required.

Q: What if the drive was running a customized firmware version?
A: Contact our technical team before ordering if your drive is running a non-standard or site-specific firmware build. In standard Perfect Harmony NXG installations, the replacement panel is firmware-agnostic at the hardware level, but display language packs and custom menu structures may need to be reloaded via the NXG configuration software.

Q: Can this panel be used as a hot-standby spare?
A: Yes. Many facilities purchase one or two A1A460A68.23M panels as on-site cold spares to minimize MTTR (mean time to repair) in the event of a panel failure. The panel requires no pre-configuration before installation — it initializes automatically from the drive controller on first power-up.

Warranty Assurance

Every A1A460A68.23M replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional verification check including power-up testing, display and keypad response verification, and communication bus handshake confirmation where test equipment permits.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a refund based on the customer’s preference and fault assessment. Our technical team is available to assist with installation questions, compatibility verification, and post-installation commissioning support via email and phone.

We maintain stock of the A1A460A68.23M and related Perfect Harmony components in Xiamen, China, enabling fast dispatch — typically within 1–3 business days of order confirmation. International shipping is available via DHL, FedEx, and UPS Express, with tracking provided on all shipments. For large-volume orders or project-based procurement, please contact us directly for lead time confirmation and volume pricing.

TOPNLMS specializes in sourcing discontinued and hard-to-find industrial automation components for MV drive systems, PLC platforms, DCS controllers, and I/O subsystems. Our procurement network covers major brands across the industrial automation sector, enabling us to support multi-brand retrofit projects from a single supplier.
