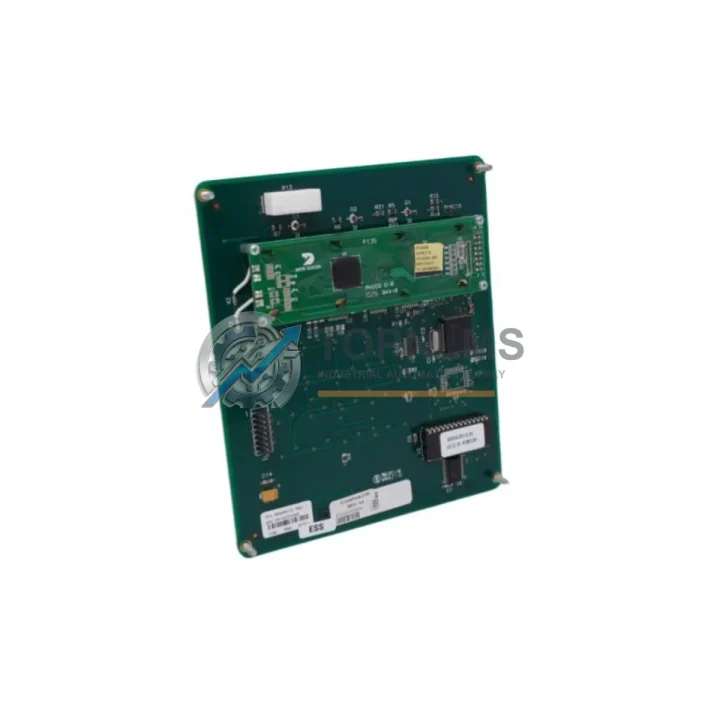

ROBICON A1A460A68.23M/460A68.10 Original Spare Perfect Harmony Compatible

Product Overview

ROBICON A1A460A68.23M/460A68.10 Original Spare Perfect Harmony Compatible: System Stability & Industrial Spare Maintenance Value

In medium-voltage drive systems, the operator keypad panel is the primary human-machine interface between maintenance personnel and the drive’s control logic. The ROBICON A1A460A68.23M / A1A460A68.10 is the original keypad panel engineered for the Perfect Harmony series of medium-voltage variable frequency drives — a platform widely deployed across power generation, oil & gas, mining, water treatment, and heavy process industries worldwide. When this panel fails or degrades, operators lose visibility into drive status, fault codes, parameter access, and manual control — making rapid, verified replacement a critical priority for any maintenance team.

Sourced directly from authorized supply channels and subjected to pre-shipment functional verification, this unit is a genuine original spare — not a clone, not a refurbished unknown. Every panel dispatched from TOPNLMS undergoes electrical continuity checks, display integrity verification, and keypad response testing before packaging. A 12-month warranty is included with every unit, covering manufacturing defects and functional failures under normal operating conditions.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance inspection of a Perfect Harmony drive cabinet should never be limited to the keypad panel alone. The operator panel is the visible symptom layer — but the root causes of drive instability often originate deeper in the control and power architecture. When replacing or inspecting the A1A460A68.23M/460A68.10, experienced maintenance engineers routinely extend the scope of inspection to the surrounding subsystems.

The NXG control board (the main drive controller that the keypad communicates with) should be checked for firmware version compatibility and any logged fault history that may have contributed to panel failure. Similarly, the cell bypass modules within the Perfect Harmony power cell stack are a common source of cascading faults — a degraded bypass relay can generate erratic display behavior that is misdiagnosed as a panel fault. Inspecting and, where necessary, stocking a spare power cell module (such as the GH180 series cell units) is a prudent step during any planned outage.

The fiber optic communication cables linking the NXG controller to individual power cells are another frequently overlooked maintenance item. Contaminated or damaged fiber connectors cause intermittent communication faults that manifest as display errors or drive trips — symptoms that can be confused with a failing keypad. A set of spare fiber patch cables appropriate for the installed drive configuration should be part of every site’s critical spares inventory.

On the power supply side, the 24VDC control power supply module feeding the NXG controller and panel logic deserves attention. Voltage sag or ripple on the control bus can cause display flickering, keypad lockups, and false fault indications. Verifying output voltage stability with a calibrated meter — and holding a spare control power supply — eliminates this failure mode from the diagnostic matrix.

For sites running Perfect Harmony drives in parallel or in multi-drive configurations, the communications gateway module (Profibus, Modbus, or Ethernet/IP depending on installation vintage) should be inspected for firmware currency and connector integrity. A failed gateway does not always trigger a drive fault — it may simply cause silent loss of SCADA visibility, which is only discovered during the next process upset.

The input isolation transformer and associated phase monitoring relay upstream of the drive are worth including in any comprehensive inspection. Phase imbalance or harmonic distortion at the transformer secondary can accelerate power cell aging and contribute to control instability. Documenting transformer secondary voltages during the inspection creates a baseline for trend analysis.

Finally, the door interlock switch and grounding assembly on the drive enclosure should be verified for mechanical integrity. A misaligned interlock can prevent the drive from enabling — a fault that is sometimes incorrectly attributed to the operator panel or control board before the mechanical root cause is identified.

Maintaining a structured spare parts kit that includes the keypad panel, NXG control board, fiber cables, control power supply, and at least one power cell module provides the coverage needed to restore a Perfect Harmony drive to service within a single maintenance shift — minimizing production impact and avoiding the extended lead times associated with emergency procurement.

Strategic Replacement Solutions

The Perfect Harmony platform has been in continuous industrial service for over two decades, and many installations are operating on original hardware that is no longer supported under active Siemens service contracts. For these sites, the ability to source verified original spare parts through independent supply channels is not a convenience — it is a business continuity requirement.

The A1A460A68.23M/460A68.10 panel is a direct OEM replacement that requires no parameter reconfiguration, no firmware flashing, and no recalibration upon installation. The replacement procedure is a straightforward panel swap: disconnect the existing panel from the NXG controller interface, mount the replacement unit, reconnect, and power up. Drive parameters stored in the NXG controller’s non-volatile memory are unaffected by the panel replacement.

For maintenance teams managing aging Perfect Harmony installations, holding one or two spare panels in the site’s critical spares inventory eliminates the risk of extended downtime caused by panel failure during production. Given the typical lead time for OEM spare parts through standard distribution channels, a locally held spare can mean the difference between a two-hour repair and a two-week outage.

TOPNLMS maintains stock of this panel and related Perfect Harmony components to support rapid dispatch. Standard orders are processed and shipped within 1–3 business days. Express logistics options are available for emergency requirements. All units are shipped in anti-static protective packaging with individual serial number documentation to support traceability requirements.

Support FAQ

Q1: Is this panel compatible with both NXG and older GH180 Perfect Harmony drive variants?
A: The A1A460A68.23M/460A68.10 is designed for the Perfect Harmony NXG control platform. Compatibility with earlier GH180 variants depends on the specific control board revision installed in your drive. Please provide your drive nameplate data or NXG firmware version when inquiring, and our technical team will confirm compatibility before shipment.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact us with the order number, unit serial number, and a description of the failure. We will arrange return logistics and dispatch a replacement unit upon verification.

Q3: How is the panel tested before shipment?
A: Every unit undergoes pre-shipment functional verification including electrical continuity checks across all connector pins, LCD display integrity testing, and membrane keypad response verification. A test record is retained internally. Units that do not pass all checks are quarantined and not dispatched.

Q4: Can I order multiple units for a planned maintenance stock program?
A: Yes. TOPNLMS supports bulk and scheduled procurement for maintenance stock programs. Volume pricing is available for orders of two or more units. Contact us directly to discuss stock program terms, lead times, and consignment options suited to your site’s maintenance planning cycle.
