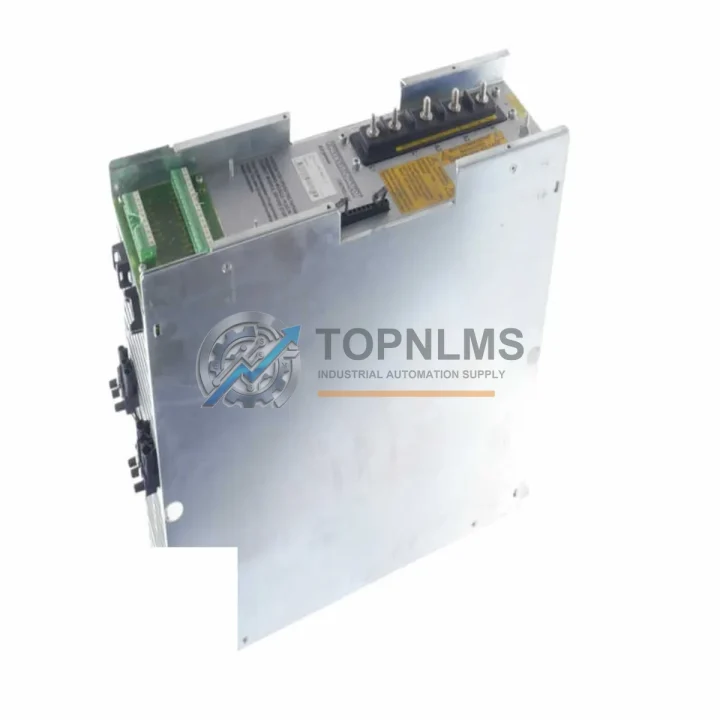

Rexroth TDM2.1-030-300-W1 Ruggedized AC Servo Drive Module

Product Overview

Rexroth TDM2.1-030-300-W1 Ruggedized AC Servo Drive Module: Industrial Resilience for Harsh-Environment Motion Control

In heavy industrial environments where temperature extremes, vibration, electromagnetic interference, and continuous-duty cycles are the norm rather than the exception, servo drive reliability is non-negotiable. The Bosch Rexroth TDM2.1-030-300-W1 is a DIAX02 Series AC Servo Drive Module rated for 30A continuous output current at 300V, engineered to deliver precise, stable motion control in the most demanding production environments. From CNC machining centers and metal forming presses to mining conveyors and offshore drilling rigs, this drive module is a proven performer in applications where failure is not an option.

Rugged Specifications Table

Comprehensive Protection Solutions

The TDM2.1-030-300-W1 operates as part of a tightly integrated DIAX02 drive system, and its long-term reliability depends on the health of every component in the drive cabinet. When performing maintenance on this servo drive module, experienced field engineers treat the entire drive system as a single unit — inspecting, testing, and where necessary replacing associated components to prevent cascading failures.

The Rexroth KDS1.1 power supply module (or equivalent DIAX02 mains supply unit) is the first component to inspect when a TDM2.1-030-300-W1 fault is diagnosed. DC bus undervoltage or overvoltage conditions generated by a degraded power supply are the most common root cause of servo drive trips in harsh environments. The power supply’s capacitor bank should be checked for ESR degradation, particularly in high-temperature installations where capacitor aging is accelerated.

The Rexroth MKD servo motor paired with the TDM2.1-030-300-W1 should be inspected for bearing wear, encoder signal quality, and winding insulation resistance. In high-vibration environments such as stamping presses or mining equipment, motor bearing failure is a leading cause of drive overcurrent faults that are incorrectly attributed to the drive module itself. A motor insulation test (megger test) should be performed before replacing the drive to rule out motor winding faults.

The feedback cable assembly connecting the servo motor encoder or resolver to the TDM2.1-030-300-W1 is a critical and frequently overlooked maintenance item. In environments with high electromagnetic interference — such as near large induction motors, welding equipment, or variable frequency drives — unshielded or damaged feedback cables generate noise that causes position errors, drive faults, and in severe cases, runaway axis behavior. Rexroth IKS series shielded feedback cables should be used exclusively, with shield grounding verified at both ends.

For multi-axis systems, the Rexroth CSH01 or CSB01 controller module managing the TDM2.1-030-300-W1 should be checked for firmware currency and communication health. SERCOS or analog command signal integrity between the controller and drive module is essential for precise motion execution; degraded command signals manifest as positioning inaccuracy or axis oscillation before escalating to drive faults. Keeping a spare controller module alongside the drive module in your critical-spare inventory ensures full axis recovery capability.

In installations where multiple TDM2.1-030-300-W1 drives share a common DC bus, the Rexroth HZF01 braking resistor module and associated bus capacitor modules must be inspected for thermal damage and resistance drift. Shared DC bus systems in regenerative applications — such as CNC machining centers with multiple servo axes — place significant thermal stress on braking resistors during deceleration cycles. A failed braking resistor can cause DC bus overvoltage faults that trip all drives on the shared bus simultaneously, resulting in a full machine shutdown.

Finally, the 24VDC control voltage supply feeding the drive’s logic circuits should be verified for voltage stability and ripple. In environments with significant electrical noise, an uninterruptible 24VDC supply with adequate filtering is essential for maintaining drive enable signals and preventing nuisance trips during production.

Application in Critical Infrastructure

The Rexroth TDM2.1-030-300-W1 is deployed across a wide range of critical infrastructure applications where motion control reliability directly impacts safety and production continuity. In oil and gas facilities, it drives positioning systems on wellhead equipment and pipeline valve actuators, where a drive failure can trigger emergency shutdowns with significant safety and financial consequences. In mining operations, it controls conveyor positioning drives and ore processing equipment operating in high-dust, high-vibration environments that would rapidly degrade lesser-specified drives.

In power generation facilities — including thermal, hydro, and wind — the TDM2.1-030-300-W1 is used in turbine blade pitch control, valve positioning, and auxiliary equipment drives where continuous availability is mandatory. Water treatment plants rely on it for pump and mixer drive control in chemically aggressive environments. In metallurgy and steel production, it manages rolling mill positioning and ladle handling systems operating under extreme thermal and electromagnetic stress conditions.

Across all these applications, the DIAX02 platform’s proven robustness, combined with TOPNLMS’s verified supply chain and pre-shipment functional testing, makes the TDM2.1-030-300-W1 the preferred replacement choice for maintenance teams who cannot afford uncertainty in their spare parts supply.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the TDM2.1-030-300-W1?
A: The 12-month warranty covers functional failures and manufacturing defects under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing including DC bus charging, drive enable verification, and output stage integrity checks. Warranty replacements are dispatched within 5 business days upon fault confirmation and return of the defective unit.

Q2: How do I verify compatibility with my existing DIAX02 system before installation?
A: Confirm compatibility by matching the drive’s current rating (030 = 30A), DC bus voltage (300V), and firmware version with your system’s controller requirements. The TDM2.1-030-300-W1 is compatible with Rexroth DIAX02 system controllers including CSH01 and CSB01 variants. Provide your system’s controller part number and firmware version to our technical team for pre-purchase compatibility confirmation.

Q3: Can this drive be used as a direct replacement in harsh environments without additional protection?
A: The TDM2.1-030-300-W1 is rated IP20 and is designed for installation inside a sealed control cabinet. In environments with high dust, humidity, or corrosive atmosphere, the control cabinet itself must provide the environmental protection (IP54 or higher recommended). Ensure cabinet cooling is adequate — the drive requires forced-air cooling and must not be installed in a sealed cabinet without a heat exchanger or air conditioner.

Q4: What is the recommended spare strategy for multi-axis DIAX02 installations?
A: For facilities with 4 or more DIAX02 servo axes, maintaining at least one spare TDM2.1-030-300-W1 drive module on-site is strongly recommended. Servo drive failures in multi-axis systems typically cause full machine downtime, not just single-axis loss. Pair the spare drive with a spare feedback cable assembly and a spare 24VDC logic supply for a complete emergency recovery kit. TOPNLMS can supply matched spare sets with documentation for your maintenance records.
