RESOLVER R11W-F10/7-2 Replacement for R11W Series

Product Overview

RESOLVER R11W-F10/7-2 Replacement for R11W Series: Smooth Transition & Legacy System Compatibility

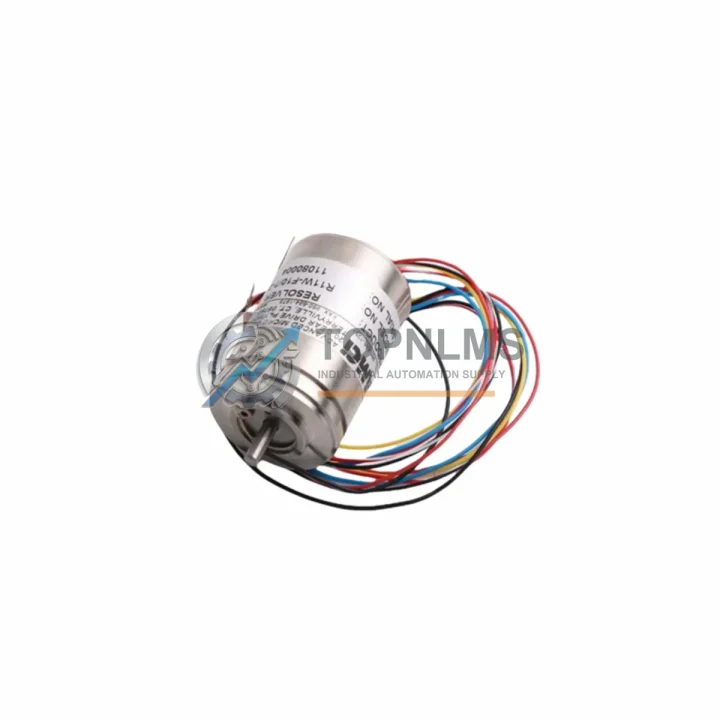

The RESOLVER R11W-F10/7-2 is a precision rotary transformer designed for industrial servo positioning applications. As legacy servo drive systems age and original components reach end-of-life, sourcing a verified, drop-in compatible replacement becomes critical to maintaining production continuity. This unit is a direct replacement and upgrade solution for the R11W Series resolver, engineered to restore full closed-loop feedback performance in servo axes, CNC spindles, and motion control systems without requiring rewiring, reprogramming, or mechanical modification.

Many facilities operating Siemens SIMODRIVE 611, Fanuc α-Series, Mitsubishi MR-J2S, or Bosch Rexroth IndraDrive servo systems rely on R11W-type resolvers as the primary position feedback device. When the original R11W-F10/7-2 fails or becomes unavailable through standard distribution channels, unplanned downtime can extend for days or weeks. TOPNLMS maintains verified stock of this resolver to support rapid emergency replacement and scheduled maintenance programs alike.

Compatibility Comparison Table

Seamless Upgrade Solutions

A resolver replacement rarely occurs in isolation. In most servo axis retrofit or modernization projects, the R11W-F10/7-2 is replaced as part of a broader system upgrade. When migrating from an aging SIMODRIVE 611 axis module to a SINAMICS S120 drive unit, for example, the resolver signal must be routed through a compatible Resolver-to-Digital (R/D) converter or a SMC30 Sensor Module Cabinet-Mounted to interface with the new drive’s DRIVE-CLiQ architecture. In such cases, the resolver itself remains mechanically unchanged while the signal conditioning layer is modernized.

For Fanuc α-Series and βi-Series servo systems, the R11W-type resolver connects directly to the servo amplifier’s feedback terminal block. Customers upgrading from older Fanuc A06B-series servo motors to current αiF or βiF motor frames often retain the resolver as the feedback device, requiring only a verified replacement unit rather than a full encoder conversion. Similarly, Mitsubishi MR-J2S and MR-J3 amplifiers support resolver feedback through dedicated CN2 connector wiring, and the R11W-F10/7-2 pinout is compatible without modification.

In multi-axis control cabinets, the resolver replacement is typically accompanied by inspection or replacement of the resolver cable assembly, terminal block connections, and shielding integrity. Customers frequently source resolver extension cables, EMI-shielded twisted-pair signal cables, and DIN rail-mounted signal isolators alongside the resolver unit to ensure signal integrity over long cable runs in electrically noisy environments. For systems using a Heidenhain IK 220 or similar R/D evaluation board, no reconfiguration is required when substituting the R11W-F10/7-2 with this verified replacement.

In retrofit projects involving older CNC controllers — such as Siemens SINUMERIK 840D sl, Fanuc 0i-MF, or Mitsubishi M70 — the resolver feedback loop is preserved as-is, and only the physical sensor is swapped. This approach eliminates the need to modify PLC ladder logic, servo parameter sets, or HMI screen configurations, significantly reducing commissioning time and risk. The replacement R11W-F10/7-2 is shipped pre-tested and ready for immediate installation.

Retrofit Guidance FAQ

Q: Do I need to re-tune the servo drive after replacing the resolver?
A: In most cases, no. Because the R11W-F10/7-2 replacement maintains identical pole pair count (7) and transformation ratio (F10), the drive’s resolver parameters remain valid. A reference point return (homing) cycle is recommended after installation, but full re-tuning is generally not required.

Q: Is the wiring pinout identical to the original?
A: Yes. The replacement unit uses the same standard resolver wiring convention: excitation (R1/R2), sine output (S1/S3), and cosine output (S2/S4). No rewiring is needed if the original cable harness is intact.

Q: Can this resolver be used with a DRIVE-CLiQ-based Siemens system?
A: The resolver itself outputs analog sine/cosine signals. To interface with DRIVE-CLiQ, a Siemens SMC30 or equivalent resolver evaluation module is required. The R11W-F10/7-2 is fully compatible with the SMC30 input specification.

Q: What if the mounting flange dimensions differ slightly from my motor?
A: The R11W Series uses standardized flange dimensions. If your motor uses a non-standard adapter plate, please contact us with your motor model number and we will confirm compatibility before shipment.

Q: How do I verify the resolver is functioning correctly after installation?
A: Use the drive’s built-in resolver diagnostics (e.g., Siemens STARTER/TIA Portal resolver test, Fanuc servo check screen) to verify excitation voltage, signal amplitude, and phase angle. Acceptable sine/cosine amplitude is typically 2–4 V RMS at rated excitation.

Warranty Assurance

Every RESOLVER R11W-F10/7-2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes electrical continuity testing, insulation resistance verification, and signal output inspection to confirm it meets the R11W Series specification. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. We support customers through the diagnosis process remotely and, where required, coordinate with local service engineers to facilitate on-site verification.

For procurement teams managing critical spare parts inventories, we offer batch quotation, lead time confirmation, and certificate of conformance documentation upon request. Express shipping via DHL, FedEx, or UPS is available for emergency replacement orders, with dispatch typically within 1–2 business days from our Xiamen warehouse.

Contact our technical sales team to confirm compatibility with your specific drive and motor configuration before ordering.
