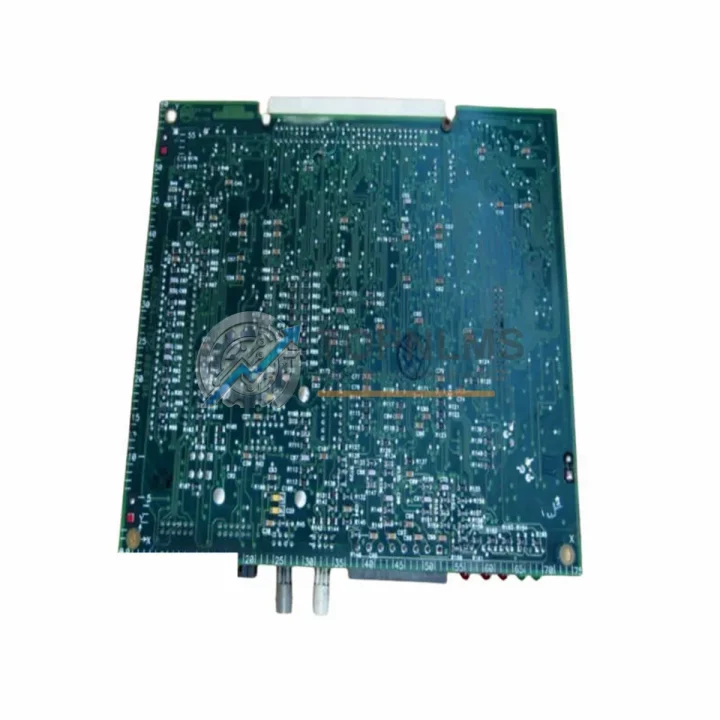

Reliance Electric 0-60021-2 Replacement for AutoMax

Product Overview

Reliance Electric 0-60021-2 Replacement for AutoMax: Smooth Transition from Legacy Drive Control Systems

The Reliance Electric 0-60021-2 AutoMax Processor Module is the central processing unit of the AutoMax Series — a rack-based, modular control platform widely deployed in heavy industrial drive, motion, and process control applications throughout the 1990s and 2000s. As Rockwell Automation (which acquired Reliance Electric) has discontinued active support and new production of AutoMax hardware, maintenance engineers and plant managers face a critical decision: source a verified replacement 0-60021-2 to extend the life of the existing system, or plan a structured migration to a current-generation control architecture. TOPNLMS stocks the 0-60021-2 as a fully tested, ready-to-ship replacement module, enabling facilities to restore production continuity with minimal downtime and without committing to a full platform migration before they are operationally ready.

The AutoMax platform was designed around a modular backplane architecture. The 0-60021-2 processor inserts directly into the standard AutoMax rack backplane, interfacing with the system’s I/O network, drive communication bus, and programming environment through the same connector pinout as the original unit. When replacing a failed or end-of-life processor, no rewiring of field terminations, terminal blocks, or I/O module connections is required. Existing ladder logic or function block programs developed in the AutoMax programming software can be re-downloaded to the replacement processor without modification, dramatically reducing commissioning time and eliminating the risk of logic transcription errors during a high-pressure recovery scenario.

For sites operating mixed AutoMax and Reliance Electric drive systems — including the Reliance Electric FlexPak 3000 DC drive and the SP500 AC drive — the 0-60021-2 processor maintains native compatibility with the AutoMax network communication infrastructure. The 0-57400-1 AutoMax Network Interface Module and the 0-57401-1 Remote I/O Scanner continue to operate without reconfiguration after processor replacement, preserving the peer-to-peer communication links between the processor and remote I/O racks, as well as the drive network topology. Scan rates, node addresses, and communication parameters remain intact, which is critical in applications where drive coordination timing directly affects product quality or process safety.

Power supply compatibility is a key consideration during any processor replacement. The 0-60021-2 operates within the standard AutoMax rack power budget and is fully compatible with the 0-57100-1 AutoMax Power Supply Module. No power rail modifications, derating calculations, or supplemental power conditioning hardware are required when swapping the processor in an existing rack assembly. This is particularly important in control cabinets where physical space is constrained and adding additional hardware is not feasible without a cabinet redesign.

For facilities planning a phased migration from the AutoMax platform to a current-generation architecture — such as Rockwell Automation ControlLogix or CompactLogix — the 0-60021-2 serves as a proven bridge solution. During the interim period, the existing 0-57400-1 network interface, 0-57401-1 remote I/O scanner, and associated 0-57402-1 AutoMax I/O Modules continue to serve field devices without modification. Field wiring to terminal block assemblies can typically be reused in the target architecture, with only the processor, backplane, and communication modules requiring replacement at migration time. This approach allows engineering teams to scope, fund, and execute the migration project without forcing an emergency cutover under production pressure.

In multi-axis motion control applications — metal forming, paper converting, printing, and web handling — the 0-60021-2 processor coordinates axis synchronization, electronic gearing, and cam profile execution across the AutoMax Multi-Axis Motion Controller modules installed in the same rack. Replacing the processor with a verified 0-60021-2 unit preserves all axis tuning parameters, interpolation settings, and motion program structures stored in the system, eliminating the need for re-tuning or re-commissioning of servo and spindle axes after the swap.

All 0-60021-2 units supplied by TOPNLMS undergo pre-shipment functional verification, including backplane communication checks, memory integrity tests, and firmware version confirmation. Units are packaged in anti-static enclosures with protective foam inserts to prevent transit damage. Standard lead time is 1–3 business days from our Xiamen warehouse, with express international shipping available to minimize plant downtime. An AutoMax-compatible programming cable is required to download the existing control program to the replacement unit; contact TOPNLMS for compatible cable specifications and commissioning support.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete AutoMax system restoration or phased migration typically involves more than the processor module alone. When commissioning a replacement 0-60021-2, engineers frequently source the following companion components to ensure full system integrity and minimize the risk of secondary failures during the recovery window.

The 0-57400-1 AutoMax Network Interface Module manages peer-to-peer communication between the processor and remote I/O racks. If this module shows degraded performance or intermittent faults, replacing it alongside the processor eliminates the risk of communication-related nuisance trips after the processor swap. The 0-57401-1 Remote I/O Scanner handles field device polling and should be verified for firmware compatibility with the replacement processor before returning the system to production.

For drive integration, the Reliance Electric FlexPak 3000 DC drive and SP500 AC drive communicate with the AutoMax processor via the drive network bus. Both drives accept the same network configuration parameters after processor replacement without requiring drive parameter re-entry or re-commissioning of the drive’s speed and torque control loops. Sites using the 0-57100-1 AutoMax Power Supply Module should confirm that the power supply’s output voltage and current ratings remain within specification before installing the replacement processor, particularly in racks that have been in service for extended periods.

In multi-axis motion applications, the AutoMax Multi-Axis Motion Controller module should be re-synchronized with the new processor during commissioning to restore axis coordination and verify that electronic gearing ratios and cam profiles are executing correctly. The 0-57402-1 AutoMax I/O Module and associated terminal block assemblies can be retained and mapped to the replacement processor without field wiring changes, preserving the existing I/O address structure and eliminating the need to update the control program’s I/O configuration. For facilities that use signal isolators between field devices and the AutoMax I/O modules, these components remain fully compatible and do not require recalibration after the processor replacement.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminals when replacing the 0-60021-2?
No. The replacement module uses the same backplane connector and slot position as the original. All field wiring connected to I/O modules and terminal blocks remains undisturbed. The only physical connection required is reseating the processor module in the backplane slot.

Q: Can I re-use my existing AutoMax control program without modification?
Yes. The replacement 0-60021-2 accepts the same program download from the AutoMax programming software. No logic modifications, address remapping, or I/O configuration changes are required for a like-for-like processor swap.

Q: Is the AutoMax network communication protocol preserved after replacement?
Yes. The 0-60021-2 maintains full compatibility with the 0-57400-1 AutoMax Network Interface and 0-57401-1 Remote I/O Scanner modules, preserving the existing communication topology, node addresses, and scan rates without reconfiguration.

Q: Will the replacement processor fit in my existing rack without physical modification?
Yes. The 0-60021-2 occupies a standard AutoMax rack slot with an identical form factor to the original unit. No mechanical modification to the rack, control cabinet, or DIN rail mounting is required.

Q: What commissioning steps are needed after installation?
After physical installation, reconnect the backplane, power up the rack using the existing 0-57100-1 power supply, and download the existing program via the AutoMax programming cable. Verify I/O communication status, drive network links, and — in motion applications — re-synchronize the Multi-Axis Motion Controller before returning the system to production. TOPNLMS technical support is available to assist with commissioning queries.

Q: What if my system uses a mix of AutoMax and newer Rockwell hardware?
The 0-60021-2 operates independently within the AutoMax rack and does not require changes to any Rockwell hardware installed elsewhere in the control system. For hybrid architectures, the existing AutoMax network interface and I/O modules continue to serve as the communication bridge between the AutoMax processor and field devices.

Warranty Assurance

Every Reliance Electric 0-60021-2 AutoMax Processor Module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured pre-shipment inspection that includes backplane interface verification, memory read/write testing, communication bus integrity checks, and firmware version confirmation. Units that do not meet our quality benchmarks are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned module. Our after-sales response team is reachable via email and phone to support fault diagnosis, installation guidance, and return logistics coordination. We understand that unplanned downtime in industrial environments carries significant operational and financial cost, and our procurement assurance program is designed to minimize the time between fault identification and system restoration.

Bulk procurement and consignment stocking arrangements are available for maintenance teams that require on-site spare inventory of the 0-60021-2 and related AutoMax components, including the 0-57400-1 network interface, 0-57401-1 remote I/O scanner, and 0-57100-1 power supply module. Contact our sales team to discuss volume pricing, lead time commitments, and technical support packages tailored to your facility’s maintenance and migration strategy.
