Reliance 805401-3S Original Industrial Spare AutoMax Compatible

Product Overview

Reliance 805401-3S Original Industrial Spare AutoMax Compatible: System Stability & Backplane Maintenance Value

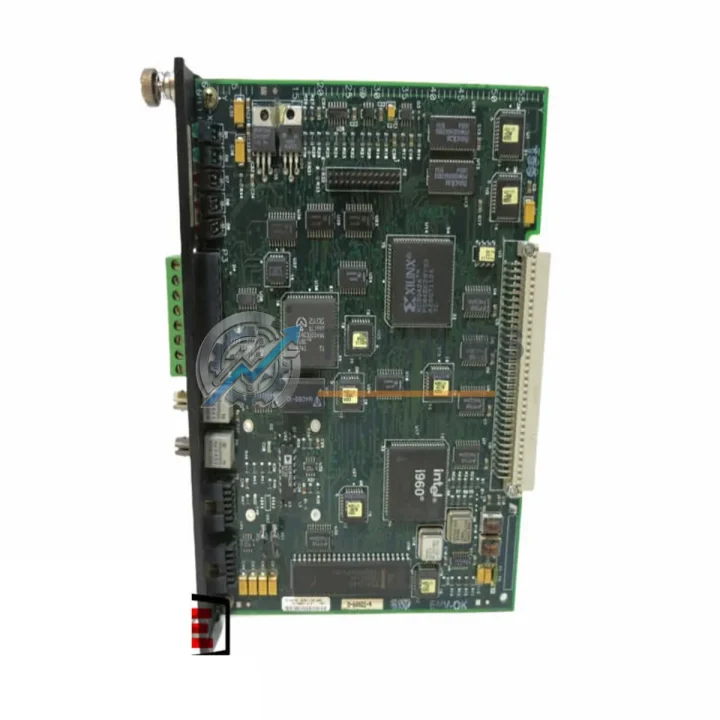

The Reliance Electric 805401-3S is an original AutoMax DCS rack assembly backplane module engineered for mission-critical industrial control environments. As the structural and electrical backbone of the AutoMax distributed control system, this backplane module provides the high-integrity bus interconnection that keeps your DCS I/O modules, power supplies, and communication cards operating in synchrony. For maintenance engineers managing aging AutoMax installations, securing a verified original 805401-3S spare is one of the highest-value actions you can take to protect system uptime and reduce unplanned downtime risk.

Whether you are responding to an emergency rack failure, executing a scheduled shutdown inspection, or building a strategic spare parts inventory for a long-running AutoMax system, the 805401-3S delivers the exact form, fit, and function required to restore your control architecture without re-engineering or reconfiguration. Its compatibility with the AutoMax DCS platform means replacement is straightforward, and your existing I/O wiring, module addressing, and control logic remain intact.

Critical Technical Specs

Preventive Maintenance Strategy

A DCS backplane failure rarely occurs in isolation. When a 805401-3S rack assembly shows signs of degradation — intermittent module communication errors, unexpected I/O faults, or bus voltage irregularities — experienced maintenance teams know that a thorough inspection of the surrounding control cabinet is essential before returning the system to service.

During a planned replacement of the 805401-3S backplane, it is best practice to simultaneously inspect and, where appropriate, replace the AutoMax power supply module that feeds the rack. Power supply aging is a leading cause of backplane stress and premature bus connector wear. If the power supply has been in service for more than five years, proactive replacement alongside the backplane significantly reduces the probability of a repeat outage.

The AutoMax I/O modules seated in the rack — including analog input modules, digital output modules, and thermocouple input cards — should be individually reseated and inspected for connector oxidation during the backplane swap. Corroded or loose module connectors are a common source of intermittent faults that are often misdiagnosed as backplane failures. Keeping a small buffer stock of the most critical I/O module types used in your AutoMax system is a sound inventory strategy.

The AutoMax communication module (network interface card) connecting the DCS rack to the plant network or supervisory SCADA layer deserves particular attention. Communication module firmware and hardware integrity should be verified after any backplane replacement, as bus re-initialization can expose latent communication faults. Similarly, the AutoMax controller module — the CPU card that executes your control logic — should be confirmed to be operating within normal temperature and diagnostic parameters once the new backplane is installed.

Do not overlook the terminal blocks and field wiring termination assemblies connected to the I/O modules. Loose terminal screws, aged insulation, and corroded field connections are frequently discovered during backplane maintenance windows and should be addressed while the cabinet is already open. Replacing worn DIN rail terminal blocks and verifying torque on all field wiring terminations adds minimal time to the maintenance window but substantially improves long-term reliability.

For AutoMax systems that include signal isolator modules or relay output modules in the same control cabinet, these components should be included in the inspection checklist. Relay contacts wear over time, and signal isolators can develop drift that affects process measurement accuracy. Replacing aging relay modules and verifying isolator calibration during a scheduled backplane replacement is an efficient use of the maintenance window.

Finally, inspect the cabinet cooling fans and air filter assemblies. Elevated operating temperatures are a primary accelerant of backplane and module aging. Ensuring adequate airflow through the DCS enclosure after the 805401-3S replacement protects your investment and extends the service life of all installed modules.

Strategic Replacement Solutions

The Reliance Electric 805401-3S is a direct original replacement for aging or failed AutoMax DCS rack assemblies. Many AutoMax installations have been in continuous service for 15 to 25 years, and the original backplane modules are no longer available through standard distribution channels. Sourcing a verified original 805401-3S from a specialist industrial spare parts supplier is the most reliable path to restoring full system functionality without the cost and risk of a full DCS platform migration.

Unlike third-party or refurbished alternatives, an original 805401-3S maintains full electrical compatibility with all AutoMax module types, preserves the original bus timing and signal integrity specifications, and eliminates the risk of compatibility-related faults that can arise from non-original backplane assemblies. For facilities where the AutoMax DCS controls critical process loops — compressors, reactors, boilers, or continuous production lines — the cost of a compatibility failure far exceeds the cost of sourcing an original spare.

Maintaining one or two 805401-3S units in your on-site spare parts inventory is a recognized best practice for AutoMax system operators. With typical lead times for specialist industrial spares ranging from days to weeks depending on availability, having a pre-tested unit on the shelf means that a rack failure can be resolved within a single shift rather than causing extended production downtime. Each unit supplied by TOPNLMS is tested prior to shipment and covered by a 12-month warranty, giving your maintenance team confidence in the spare’s reliability from the moment it arrives on site.

For facilities planning a phased modernization of their AutoMax DCS infrastructure, the 805401-3S also serves as a bridge solution — maintaining system stability and production continuity while longer-term migration planning proceeds. This approach avoids the operational risk of a forced emergency migration driven by an unplanned hardware failure.

Support FAQ

Q: Is the 805401-3S compatible with all AutoMax DCS module types?
A: Yes. The 805401-3S is the original Reliance Electric AutoMax rack assembly backplane and is designed to accept all standard AutoMax I/O, power supply, communication, and controller modules. No firmware changes or reconfiguration are required when replacing a like-for-like backplane in an existing AutoMax rack.

Q: What testing is performed before shipment?
A: Each 805401-3S unit is functionally tested prior to shipment to verify bus connector integrity, slot alignment, and electrical continuity. Units that do not pass inspection are not shipped. A 12-month warranty is provided on all units, covering manufacturing defects and functional failures under normal operating conditions.

Q: How should I manage spare parts inventory for an aging AutoMax system?
A: For AutoMax systems that are no longer supported by the OEM, we recommend maintaining at minimum one spare backplane module (805401-3S), one spare power supply module, and critical I/O module types that are most frequently used in your application. This buffer stock strategy ensures that common failure modes can be resolved within a single maintenance shift without waiting for procurement lead times.

Q: What is the lead time and shipping arrangement?
A: In-stock units are typically dispatched within 1–3 business days. We ship worldwide with tracking. For urgent requirements, expedited shipping options are available — please contact us directly to discuss your timeline and we will confirm availability and dispatch schedule before order confirmation.
