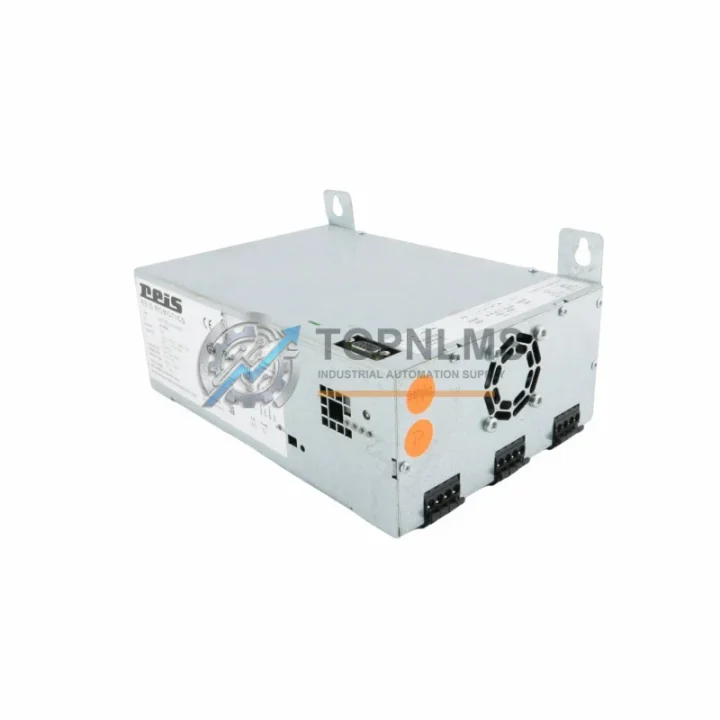

Reis 3533519 PNT350-2-24V/6V5 Replacement for HCM PVD300

Product Overview

Reis 3533519 PNT350-2-24V/6V5 Replacement for HCM PVD300: Seamless Transition from Legacy Safety Controllers

When your Reis Robotics robotic cell relies on the PNT350-2-24V/6V5 safety controller (Reis part number 3533519) as the core safety monitoring unit within the HCM PVD300 series control architecture, an unexpected failure or end-of-life notice can halt production immediately. TOPNLMS stocks verified replacement units of the Reis 3533519 PNT350-2-24V/6V5 to support your retrofit, upgrade, or emergency swap-out with minimal engineering effort and zero compromise on functional safety.

The PNT350-2-24V/6V5 is a dual-channel, 24 VDC-powered safety controller designed to monitor emergency stop circuits, safety gates, light curtains, and two-hand control devices in robotic welding, handling, and assembly cells. Its 6V5 firmware variant supports configurable safe-state logic, making it a critical node in the overall machine safety architecture. When this unit reaches end-of-life or sustains damage, the entire robotic cell is locked out — making fast, specification-accurate replacement essential.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failed or obsolete PNT350-2-24V/6V5 rarely involves replacing just one component. In practice, Reis HCM PVD300 control cabinet retrofits typically require a coordinated review of the surrounding safety and control architecture. During the replacement process, engineers commonly inspect and, where necessary, replace the PVD300 power supply module that feeds the safety controller bus — a 24 VDC regulated unit mounted adjacent to the PNT350 in the same cabinet section. If the power supply shows signs of capacitor aging or voltage ripple, replacing it alongside the safety controller eliminates a second unplanned outage.

The HCM I/O expansion modules connected downstream of the PNT350 — typically digital input modules handling E-stop loop feedback and safety gate position signals — should be verified for correct signal levels after the controller swap. In older PVD300 installations, the Reis RCU robot control unit communicates with the safety controller via a dedicated hardwired safety interface; confirming that the RCU firmware version is compatible with the replacement PNT350 firmware (6V5) is a standard commissioning step.

For cells that have already been partially modernized, some integrators choose to introduce a Pilz PNOZ safety relay or a Sick safety controller as an intermediate bridge device when the original Reis safety bus topology is being restructured — though for a like-for-like swap of the 3533519, no such bridge is needed. The Reis programming cable and HCM configuration software used for the original PNT350 parameterization remain compatible with the replacement unit, meaning your existing safety program, safe-state logic, and response-time settings can be uploaded directly without re-engineering.

In control cabinets where the PNT350 shares a DIN rail section with Phoenix Contact or Weidmüller terminal blocks, the wiring harness connectors on the replacement unit are pin-for-pin identical to the original, so no terminal re-labeling or conductor re-routing is required. Where the cell also incorporates a Reis HMI operator panel for mode selection and fault acknowledgment, the safety controller replacement does not affect HMI communication — the operator interface continues to read fault status and reset commands through the existing RCU link.

For facilities managing a fleet of Reis robotic cells, it is common practice to hold one or two spare PNT350-2-24V/6V5 units alongside spare HCM axis controller cards and PVD300 communication modules to cover both safety and motion control failure scenarios. TOPNLMS can supply multiple units from the same production batch to ensure firmware consistency across your spare parts inventory.

Retrofit Guidance FAQ

Q: Do I need to rewire the safety inputs when installing the replacement PNT350-2-24V/6V5?
A: No. The replacement unit uses the same connector pinout and terminal assignments as the original Reis 3533519. Your existing E-stop, safety gate, and light curtain wiring connects directly without modification.

Q: Is the 6V5 firmware pre-loaded on the replacement unit?
A: Yes. Units supplied by TOPNLMS are configured to the 6V5 firmware variant. Your existing safety program parameters can be uploaded using the standard Reis HCM configuration cable and software.

Q: Will the replacement controller fit in the original HCM PVD300 cabinet slot?
A: Yes. The physical dimensions and DIN rail mounting profile are identical to the original unit. No cabinet modification or bracket adaptation is required.

Q: Is the PVD300 backplane bus interface compatible?
A: Yes. The replacement PNT350-2-24V/6V5 interfaces with the PVD300 hardwired safety backplane using the same protocol and connector as the original. No bus configuration changes are needed on the RCU side.

Q: What commissioning steps are required after installation?
A: Standard commissioning involves uploading the saved safety program, performing a functional test of all monitored safety circuits (E-stop loops, gate interlocks, light curtains), verifying safe-state response times, and completing a safety validation sign-off per your site’s functional safety procedure (IEC 62061 or ISO 13849).

Q: Can this unit replace PNT350 variants with different firmware versions?
A: The 6V5 firmware variant is specific to certain HCM PVD300 configurations. If your original unit carries a different firmware suffix, please contact TOPNLMS to confirm compatibility before ordering.

Warranty Assurance

Every Reis 3533519 PNT350-2-24V/6V5 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including power-on testing, dual-channel input response testing, and safe-state output confirmation. Units that do not pass outgoing inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Our after-sales response target is within 24 hours of claim submission. For urgent production-down situations, expedited replacement dispatch is available — contact our team directly to arrange priority handling.

We supply to maintenance engineers, MRO procurement teams, system integrators, and OEM service departments globally. All units are shipped from Xiamen with full export documentation. Typical lead time for in-stock units is 3–7 business days to most destinations.

For volume orders, multi-unit spare parts packages, or batch firmware verification requirements, please contact us for a tailored quotation.
