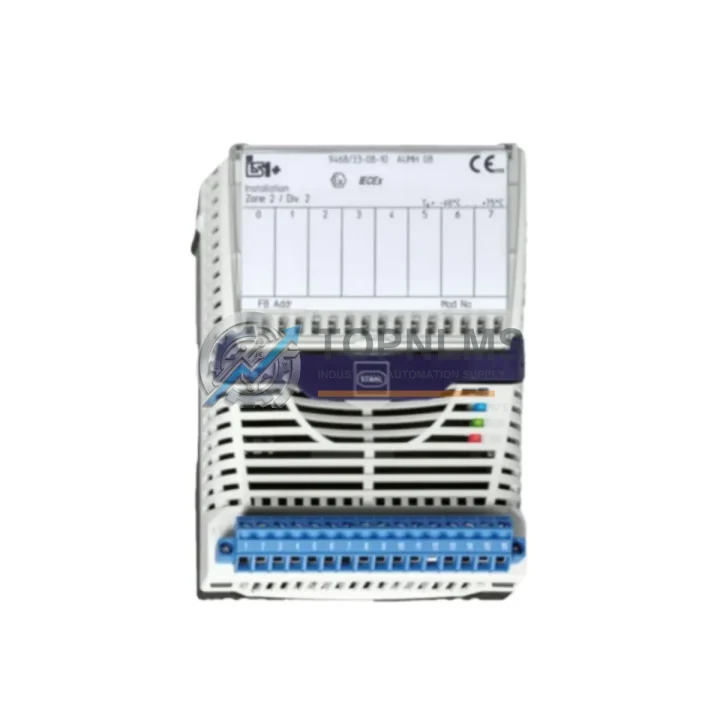

R. STAHL 9468/33-08-10 Original Industrial Spare IS1+

Product Overview

R. STAHL 9468/33-08-10 Original Industrial Spare IS1+: System Stability Through Proven Remote I/O Technology

In hazardous-area process plants, the integrity of every field signal path is non-negotiable. The R. STAHL 9468/33-08-10 is an original 8-channel HART analog universal I/O module engineered for the IS1+ Remote I/O platform — a field-proven distributed I/O architecture widely deployed in oil & gas, chemical, pharmaceutical, and power generation facilities worldwide. Sourcing a genuine replacement module before a failure occurs is the single most effective strategy for protecting uptime, preserving HART communication integrity, and avoiding costly emergency procurement under pressure.

At TOPNLMS, every 9468/33-08-10 unit is sourced from authorized supply channels, individually inspected, and shipped with a 12-month quality warranty. Whether you are replenishing a critical-spare inventory, replacing a degraded module during a planned turnaround, or responding to an unplanned trip, this module ships ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy for IS1+ Remote I/O Systems

A single degraded I/O module in a hazardous-area field station can silently corrupt process data, trigger nuisance alarms, or cause a full station dropout — all of which translate directly into lost production or safety incidents. Experienced maintenance engineers treat the 9468/33-08-10 not as a reactive spare but as part of a structured preventive maintenance program built around the entire IS1+ station.

During scheduled turnarounds or annual instrument calibration campaigns, it is best practice to inspect the complete IS1+ field station alongside the HART analog I/O module. The IS1+ power supply module (typically the 9440 series) should be checked for output voltage stability and capacitor aging — a failing power supply is the most common root cause of intermittent I/O module faults. At the same time, the IS1+ station coupler or gateway module (9440/11 or 9440/12 series) that bridges the field station to the DCS host should be verified for firmware currency and communication error counters.

On the field wiring side, the IS1+ terminal modules and associated field terminal assemblies that mate with the 9468/33-08-10 should be inspected for contact oxidation, loose terminations, and insulation resistance. HART signal quality is highly sensitive to wiring impedance; corroded terminals or undersized cable can degrade HART communication even when the I/O module itself is healthy. Pairing a module replacement with a wiring audit eliminates the most common post-replacement fault callbacks.

For plants running mixed analog and digital field devices, the maintenance window is also an ideal time to audit IS1+ digital I/O modules (discrete input/output variants in the 9468 series) installed in the same station. Modules sharing a backplane are subject to the same environmental stresses — temperature cycling, humidity ingress, and vibration — and tend to age at similar rates. Replacing a confirmed-faulty HART analog module while leaving adjacent digital I/O modules uninspected is a common source of repeat call-outs within the same maintenance cycle.

Where HART pass-through to a DCS asset management system (such as Siemens PDM, ABB Field Information Manager, or Emerson AMS Device Manager) is in use, verify that the HART multiplexer or HART modem interface associated with the station is functioning correctly after module replacement. A module swap can occasionally reset HART polling parameters, causing temporary loss of device diagnostics in the asset management layer.

Finally, for plants with aging IS1+ infrastructure, a proactive inventory of IS1+ backplane segments, station bus terminators, and module locking clips is recommended. These mechanical and passive components are frequently overlooked in spare-parts planning yet are critical for module seating integrity and bus signal quality. Maintaining a small buffer stock of these items alongside the 9468/33-08-10 ensures that a module replacement can be completed cleanly without waiting for ancillary hardware.

Strategic Replacement Solutions

The R. STAHL 9468/33-08-10 is a direct replacement for any IS1+ station slot currently occupied by a faulty or end-of-life 8-channel HART analog universal I/O module. Because the IS1+ platform uses a standardized backplane and module form factor, replacement is hot-swap capable in most station configurations — meaning the module can be exchanged without powering down the entire field station, dramatically reducing the maintenance window and eliminating the need for a full process shutdown.

For plants that originally commissioned IS1+ systems in the early 2000s, original modules may now be approaching or exceeding their recommended service life of 10–15 years. Rather than waiting for in-service failures, a planned module refresh program — replacing aging 9468/33-08-10 units on a rolling schedule during planned outages — is the most cost-effective strategy for maintaining system reliability. This approach avoids the premium pricing and extended lead times associated with emergency procurement, and allows maintenance teams to pre-test replacement modules in a workshop environment before installation.

The 9468/33-08-10 is also the correct replacement for sites that have experienced module damage due to lightning-induced surge events, ground faults on field wiring, or moisture ingress into the field station enclosure. In these scenarios, it is advisable to replace the affected module and simultaneously inspect adjacent modules and the station power supply for latent damage before returning the station to service.

TOPNLMS maintains stock of the 9468/33-08-10 and related IS1+ components to support both planned maintenance programs and emergency replacement requirements. All units are tested prior to dispatch and shipped with full documentation. Worldwide export is supported, with DHL Express and FedEx International Priority available for urgent requirements.

Support FAQ

Q1: Is the 9468/33-08-10 compatible with all IS1+ field station configurations?
Yes. The 9468/33-08-10 is designed for the IS1+ Remote I/O platform and is compatible with all standard IS1+ backplane configurations. It can be installed in any module slot designated for analog I/O within an IS1+ field station. Compatibility with the host DCS is determined by the IS1+ gateway or coupler module, not the I/O module itself — so existing DCS configurations do not require modification when replacing a like-for-like module.

Q2: What is the recommended spare-parts holding strategy for IS1+ HART analog I/O modules?
For critical process units, a minimum holding of one spare 9468/33-08-10 per five installed modules is a widely adopted industry benchmark. For facilities with a large installed base of IS1+ stations, a centralized spare-parts pool shared across multiple units is more economical than per-unit sparing. TOPNLMS can support bulk procurement requirements with volume pricing — contact us for a quotation.

Q3: How is the module tested before shipment?
Every 9468/33-08-10 unit dispatched by TOPNLMS undergoes a functional verification process that includes visual inspection, power-on self-test confirmation, and channel continuity checks. Units sourced as tested surplus are additionally verified against known-good reference configurations. A test report is available upon request for quality-critical applications.

Q4: What does the 12-month warranty cover?
The TOPNLMS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will provide a replacement unit or full refund at the customer’s discretion. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receiving the returned unit.
