ProSoft PLX31-EIP-PND Replacement for PLX31 Series

Product Overview

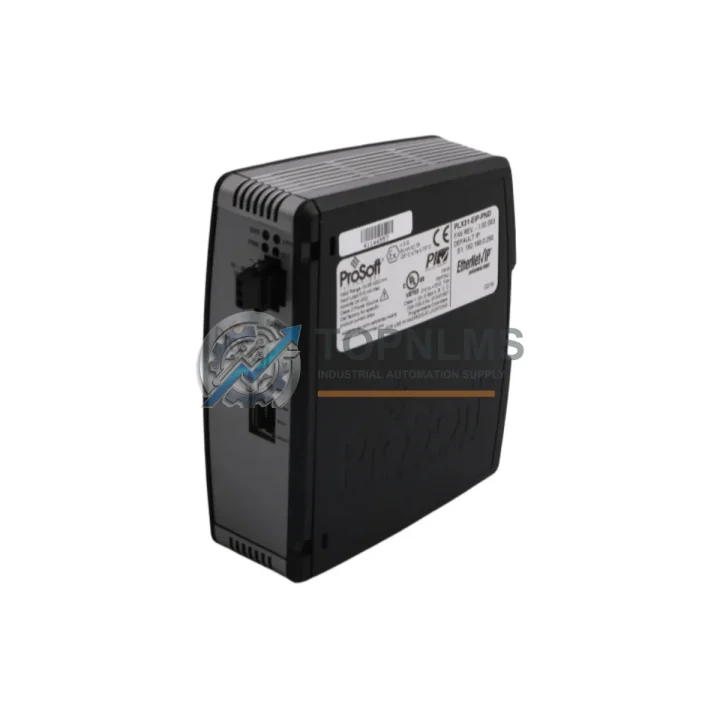

ProSoft PLX31-EIP-PND Replacement for PLX31 Series: Seamless EtherNet/IP to PROFINET IO Migration

When your existing ProSoft PLX31-EIP-PND EtherNet/IP to PROFINET IO Gateway reaches end-of-life or becomes unavailable through standard distribution channels, production continuity depends on sourcing a verified, compatible replacement without delay. The PLX31-EIP-PND is a critical communication bridge in mixed-protocol automation environments — connecting Allen-Bradley ControlLogix or CompactLogix PLCs on the EtherNet/IP side to PROFINET IO-based field devices such as Siemens ET 200 distributed I/O, PROFINET-enabled drives, and remote I/O stations. Losing this gateway means losing the entire communication path between two otherwise incompatible control architectures.

TOPNLMS maintains verified stock of the ProSoft PLX31-EIP-PND and its PLX31 Series siblings, sourced through established industrial supply channels and pre-tested before shipment. Each unit undergoes functional verification covering both EtherNet/IP scanner/adapter configuration and PROFINET IO controller/device role assignment, ensuring the module arrives ready for installation rather than requiring extensive bench testing on your end.

The PLX31-EIP-PND is a standalone DIN-rail mounted gateway — it does not require a PLC backplane or rack slot, which significantly simplifies panel space planning during a retrofit. Whether you are replacing a failed unit in an existing control cabinet or integrating this gateway into a new panel design alongside a 1756-L85E ControlLogix controller and a 1756-EN2T EtherNet/IP communication module, the physical footprint remains compact and the power requirement (24 VDC) is easily sourced from existing panel power supplies.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PLX31-EIP-PND migration rarely involves replacing only the gateway itself. In most retrofit scenarios, engineers simultaneously address adjacent components that have reached similar end-of-life status or that require reconfiguration to support the updated communication architecture.

On the EtherNet/IP side, the gateway typically connects upstream to a ControlLogix or CompactLogix controller. If the existing 1756-EN2T or 1756-EN2TR EtherNet/IP bridge module is also aging, this is the ideal time to evaluate its replacement alongside the PLX31-EIP-PND swap — both can be reconfigured in a single maintenance window, minimizing total downtime. For smaller systems using a CompactLogix 1769-L33ER or 1769-L36ERM, the gateway’s EtherNet/IP adapter configuration maps directly to the controller’s produced/consumed tag structure without requiring program changes beyond updating the module definition.

On the PROFINET IO side, the PLX31-EIP-PND acts as a PROFINET IO Controller or Device depending on configuration. Field devices such as Siemens ET 200SP distributed I/O stations, PROFINET-capable Siemens S7-300 remote I/O racks, or PROFINET-enabled variable frequency drives (including Siemens SINAMICS G120 with PN option boards) connect directly to the gateway’s PROFINET port. If the existing PROFINET network uses a managed switch for topology — such as a Siemens SCALANCE X series switch — no network infrastructure changes are required.

For wiring continuity, the PLX31-EIP-PND uses standard RJ45 Ethernet connections on both protocol ports, meaning existing Cat5e or Cat6 patch cables can be reused without modification. The 24 VDC power terminals accept the same wire gauge as the original unit, so terminal block wiring in the control cabinet does not need to be disturbed. If the panel uses a Phoenix Contact or Weidmüller terminal block distribution system for 24 VDC power, the replacement unit connects identically.

Configuration migration is equally straightforward. ProSoft Configuration Builder (PCB) project files created for the original PLX31-EIP-PND are fully compatible with the replacement unit. Engineers can load the existing .pcb project file, verify the EtherNet/IP and PROFINET IO mapping tables, and download the configuration to the new module without rebuilding from scratch. This eliminates the most time-consuming aspect of a gateway replacement and allows commissioning to proceed within hours rather than days.

For applications where the PLX31-EIP-PND is installed in a cabinet alongside a ProSoft PLX82-EIP-MBTCP (EtherNet/IP to Modbus TCP gateway) or a PLX31-EIP-SIE (EtherNet/IP to SIEMENS 3964R gateway), the replacement process for the PLX31-EIP-PND does not affect the configuration or operation of those adjacent gateways — each PLX31 Series module operates independently on the DIN rail.

Retrofit Guidance FAQ

Q: Can I reuse my existing Ethernet cables and panel wiring?
Yes. The PLX31-EIP-PND uses standard RJ45 ports and 24 VDC screw terminals. All existing cables and terminal wiring are directly reusable with no modification.

Q: Do I need to rewrite my PLC program after replacing the gateway?
No. The EtherNet/IP tag mapping and I/O data table structure remain identical. For ControlLogix systems, only the module definition in Studio 5000 may need to be re-added if the IP address changes; the ladder logic and produced/consumed tags do not require modification.

Q: Is the ProSoft Configuration Builder project file from the old unit compatible?
Yes. PCB project files are hardware-revision independent within the PLX31-EIP-PND model. Load the existing file, verify the mapping, and download — no reconfiguration required.

Q: Does the replacement unit fit in the same DIN rail position?
Yes. The PLX31-EIP-PND has a fixed DIN rail form factor. The replacement unit occupies the same physical space with no panel modification required.

Q: What PROFINET IO roles does the replacement unit support?
The PLX31-EIP-PND supports both PROFINET IO Controller and PROFINET IO Device roles, configurable via PCB. The role assignment from the original unit’s configuration file is preserved when the project is loaded onto the replacement.

Q: How long does shipping take from Xiamen?
In-stock units typically ship within 1–2 business days. Express international freight options are available for urgent replacement scenarios. Contact [email protected] for lead time confirmation before placing your order.

Warranty Assurance

Every ProSoft PLX31-EIP-PND unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional testing covering power-on initialization, both Ethernet port link establishment, and basic EtherNet/IP and PROFINET IO communication verification using ProSoft Configuration Builder. Units that do not pass functional testing are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement shipment. Our after-sales response target is within 1 business day of fault confirmation. We support warranty claims with photographic evidence of the fault condition and, where applicable, PCB diagnostic log exports.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice at the time of shipment. All units are shipped in anti-static packaging with physical protection appropriate for international freight.

For urgent replacement inquiries, volume orders, or technical pre-sales questions regarding compatibility with your specific control system architecture, contact our team directly:

📧 [email protected] | 📞 +86 18359293191
