ProSoft MVI71-AFC Ruggedized Flow Computer Module

Product Overview

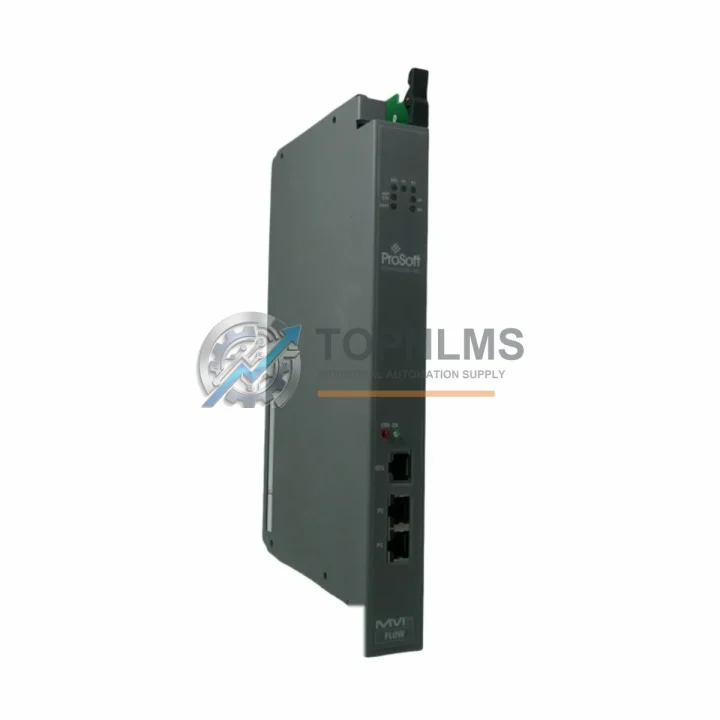

ProSoft MVI71-AFC Ruggedized Flow Computer Module for Harsh Industrial Environments

The ProSoft MVI71-AFC is a high-performance flow computer module engineered for seamless integration with Allen-Bradley PLC-5 systems via the 1771 backplane bus. Designed to operate reliably in the most demanding industrial environments — including high-temperature process plants, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — the MVI71-AFC delivers continuous, accurate flow measurement and computation without compromise.

Built on ProSoft Technology’s proven MVI71 platform, this module is purpose-built for critical infrastructure applications where measurement accuracy, system uptime, and safety compliance are non-negotiable. Whether deployed in oil and gas metering stations, water treatment flow control loops, power generation monitoring systems, or metallurgical process lines, the MVI71-AFC maintains stable communication and precise calculation performance even under severe electromagnetic interference (EMI) and harsh ambient conditions.

At TOPNLMS, every MVI71-AFC unit is sourced through verified supply channels, individually inspected, and function-tested prior to dispatch. We maintain ready stock to support urgent spare-parts replacement, planned maintenance shutdowns, and new system commissioning — backed by a 12-month quality warranty from the date of shipment.

Rugged Specifications Table

Comprehensive Protection Solutions

The MVI71-AFC does not operate in isolation — it is a critical node within a broader control architecture that demands equally robust supporting components. In a typical PLC-5-based control cabinet, the MVI71-AFC works alongside the 1771-P4S power supply to ensure stable backplane voltage under fluctuating load conditions. Communication integrity between the flow computer and the host processor is maintained through the 1785-L80B PLC-5/80 processor, which handles ladder logic execution and data table management in parallel with the AFC’s flow calculations.

For facilities requiring multi-drop serial communication to SCADA or DCS hosts, the MVI71-AFC’s RS-485 port pairs naturally with ProSoft MVI71-MNET or MVI71-DFNT communication modules installed in adjacent 1771 slots, enabling seamless Modbus TCP or EtherNet/IP data bridging without additional gateways. In hazardous-area installations — such as offshore platforms or Zone 1 classified gas metering stations — the module is typically housed within a Rittal AX series stainless steel enclosure with IP66 rating, providing dust-tight and jet-water-resistant protection for the entire control assembly.

On the I/O side, the MVI71-AFC integrates with 1771-IFE analog input modules receiving 4–20 mA signals from differential pressure transmitters, temperature sensors, and pressure transducers. Discrete safety interlocks are handled by 1771-OBD output modules and Allen-Bradley 700-series safety relays, ensuring that flow shutoff valves respond correctly to over-range or fault conditions detected by the AFC. For installations requiring functional safety compliance, the system architecture can incorporate a GuardLogix safety controller as a supervisory layer, with the MVI71-AFC providing certified flow data to the safety PLC via the DH+ network.

Industrial power quality is protected upstream by Phoenix Contact QUINT series DIN-rail power supplies, which deliver regulated 24 VDC to field instruments and I/O modules with built-in SFB (Selective Fuse Breaking) technology. Terminal connections throughout the cabinet are managed using Weidmüller WDU 2.5 terminal blocks, rated for vibration-resistant clamping in mobile or high-vibration plant environments. Together, these components form a complete, ruggedized measurement and control solution centered on the MVI71-AFC.

Application in Critical Infrastructure

In oil and gas pipeline metering, the MVI71-AFC is deployed at custody transfer stations where AGA-3 orifice plate or AGA-7 turbine meter calculations must meet fiscal accuracy requirements. The module’s onboard flow computer continuously corrects for pressure, temperature, and compressibility factors, delivering real-time corrected volume and energy totals to the host PLC-5 and upstream SCADA systems. Its ability to maintain calculation integrity during power micro-interruptions — through non-volatile memory retention — makes it a preferred choice for unmanned remote metering stations.

In water and wastewater treatment plants, the MVI71-AFC monitors influent and effluent flow rates across multiple process streams, supporting regulatory compliance reporting and chemical dosing control. The module’s resistance to high-humidity environments and its sealed backplane connector design prevent moisture ingress that could otherwise cause measurement drift or communication faults in pump houses and wet-well control rooms.

In mining and mineral processing, where slurry pipelines, ore conveyors, and crushing circuits generate intense vibration and airborne particulate contamination, the MVI71-AFC’s robust 1771 form factor and conformal-coated PCB design (standard on MVI71 series) provide long-term reliability without requiring frequent recalibration or module replacement. Maintenance teams value the module’s hot-swap compatibility within the 1771 chassis, enabling spare-part replacement during brief process pauses without full system shutdown.

In power generation and district heating applications, the MVI71-AFC calculates steam and thermal energy flow using ISO 5167 differential pressure methods, feeding data to DCS historians and energy management systems. Its deterministic scan-cycle behavior ensures that flow totals are always synchronized with the PLC-5 data table, eliminating the accumulation errors that can arise from asynchronous communication modules.
