ProSoft MVI69E-MBS Replacement for CompactLogix

Product Overview

ProSoft MVI69E-MBS Replacement for CompactLogix: Seamless Modbus Serial Upgrade

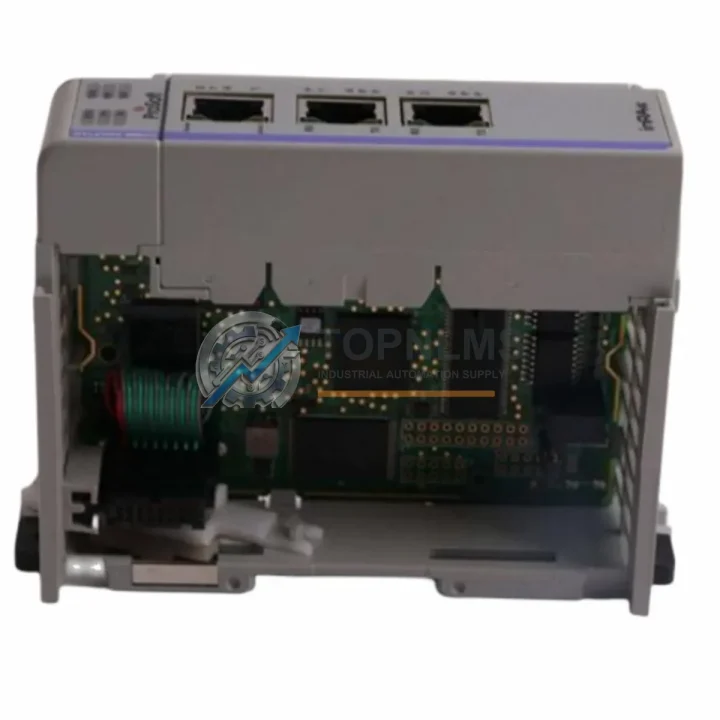

The ProSoft MVI69E-MBS is a Modbus Serial Master/Slave communication module designed for the Allen-Bradley CompactLogix platform, mounting directly into the 1769 backplane. For facilities running legacy Modbus RTU or Modbus ASCII networks — whether connected to variable frequency drives, flow meters, weigh scales, barcode readers, or third-party PLCs — the MVI69E-MBS provides a proven, field-tested migration path that preserves existing wiring infrastructure while delivering modern diagnostic capability and enhanced throughput.

Many industrial sites still operate original MVI69-MNET, MVI69-MCM, or first-generation MVI69-MBUS modules that have reached end-of-life or are no longer available through standard distribution channels. The MVI69E-MBS is the direct functional replacement for these discontinued models, sharing the same 1769 backplane slot footprint, the same RS-232/RS-422/RS-485 serial port pinout, and the same Ladder Logic / Add-On Instruction (AOI) programming interface. Engineers familiar with the original MVI69 series will find the migration straightforward: import the updated AOI, map the existing data table addresses, and the module is operational — typically within a single maintenance window.

For sites upgrading from standalone Modbus converters or serial-to-Ethernet gateways, the MVI69E-MBS eliminates the external hardware entirely. The module integrates directly into the CompactLogix chassis alongside the 1769-L30ER, 1769-L33ER, or 1769-L36ERM controllers, reducing panel space requirements and simplifying the control cabinet layout. Power is drawn from the 1769 backplane — no separate 24 VDC supply is required for the module itself, which is a common pain point when retrofitting older external converters.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Modbus serial migration on a CompactLogix system rarely involves only the communication module. In practice, the upgrade project typically touches several adjacent components. The 1769-ECR or 1769-ECL end cap must be verified or replaced when reconfiguring the 1769 expansion rail. If the existing CompactLogix controller is an older 1769-L32E or 1769-L35E running RSLogix 5000 v16 or earlier, a controller firmware update — or a controller swap to a current 1769-L30ER — may be required to support the MVI69E AOI structure.

On the field wiring side, sites using RS-485 multi-drop networks will often need to inspect or replace the 1769-SDN DeviceNet scanner or existing serial repeaters. For installations where the Modbus slave devices include third-party drives such as ABB ACS880 or Siemens SINAMICS G120 VFDs, the existing RS-485 termination resistors and cable shielding should be confirmed before commissioning the MVI69E-MBS. A ProSoft PLX51-MBUS-SLV gateway can serve as a temporary bridge during phased migration if the legacy master must remain online during the cutover window.

For systems that also require EtherNet/IP connectivity alongside Modbus serial, the MVI69E-MNET (Modbus TCP + serial combined module) is the natural companion or alternative. Sites with mixed I/O requirements may also be adding 1769-IQ16 digital input modules or 1769-OF4 analog output modules to the same chassis during the same maintenance outage — a common practice to consolidate upgrade work and minimize future downtime.

If the control cabinet includes a PanelView Plus 7 or legacy PanelView 1000e HMI, the Modbus tag addresses exposed by the MVI69E-MBS can be mapped directly into the FactoryTalk View ME project with minimal screen rework, preserving the operator interface investment.

Retrofit Guidance FAQ

Q: Can I reuse my existing RS-485 field wiring?
Yes. The MVI69E-MBS uses a standard DB9 serial connector. Existing RS-232, RS-422, and RS-485 cables connected to the legacy MVI69-MCM or MVI69-MBUS are directly reusable without rewiring, provided the cable shielding and termination are intact.

Q: Do I need to rewrite my Ladder Logic program?
No full rewrite is required. The MVI69E-MBS uses an updated Add-On Instruction (AOI) that maps to the same data table structure as the original MVI69 series. Import the new AOI, update the module configuration file (.cfg), and verify the data table offsets — the core logic remains unchanged.

Q: Is the module compatible with both Modbus RTU and Modbus ASCII simultaneously?
Yes. Each of the two serial ports can be independently configured as Master or Slave, and each port independently supports RTU or ASCII framing. This allows simultaneous master polling of field devices on Port 1 while acting as a Modbus slave to a SCADA system on Port 2.

Q: What CompactLogix firmware version is required?
The MVI69E-MBS is compatible with CompactLogix controllers running firmware v20 and above. For controllers on older firmware (v16–v19), a firmware upgrade is recommended prior to installation. ProSoft’s PCB (ProSoft Configuration Builder) software is used for module configuration and is available as a free download.

Q: How much backplane space does the module occupy?
The MVI69E-MBS occupies exactly one 1769 expansion slot — identical to the legacy MVI69 modules it replaces. No additional slots or external DIN rail mounting is required.

Q: What is the lead time and shipping arrangement?
In-stock units ship within 1–3 business days from Xiamen, China via DHL Express or FedEx International Priority. Estimated transit time to most destinations is 3–7 business days. Expedited shipping options are available on request.

Warranty Assurance

Every ProSoft MVI69E-MBS unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including backplane communication testing, serial port loopback testing, and firmware version confirmation. Units are shipped in anti-static packaging with original documentation where available.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund — whichever the customer prefers. Our after-sales response target is within 24 hours on business days. For urgent production-line situations, we prioritize expedited replacement dispatch to minimize your operational impact.

We maintain standing inventory of MVI69E-series modules to support both planned upgrade projects and emergency breakdown replacements. Customers are welcome to request pre-shipment photos, serial number documentation, or a test report for quality assurance purposes before payment is released.

For volume orders, OEM partnerships, or project-based procurement, please contact our technical sales team directly to discuss pricing, lead time, and consignment stock arrangements.
