ProSoft MVI56E-MNETR Ruggedized Modbus TCP/IP Module

Product Overview

ProSoft MVI56E-MNETR Ruggedized Modbus TCP/IP Module: Industrial Resilience for Harsh Environments

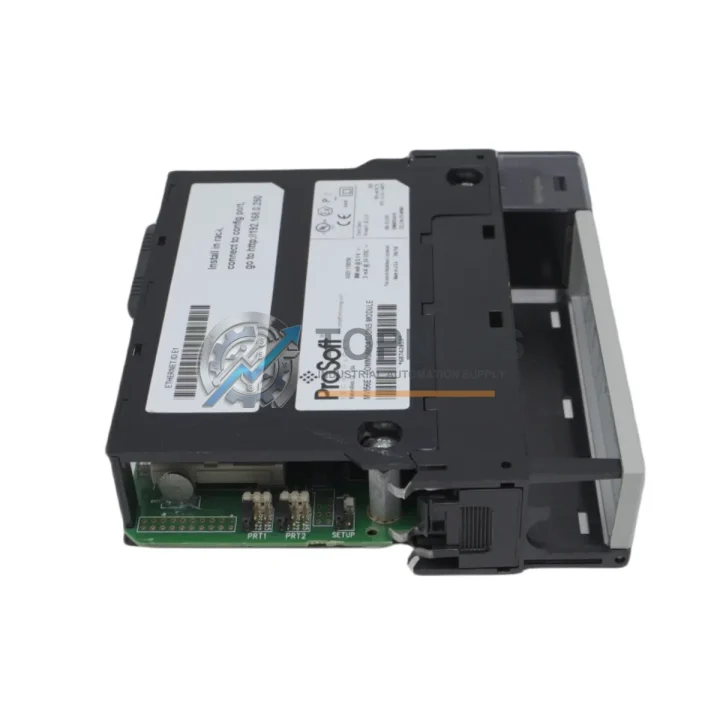

The ProSoft MVI56E-MNETR is a high-performance, ruggedized Modbus TCP/IP Enhanced Network Interface Module engineered for seamless integration with Rockwell Automation ControlLogix backplanes. Designed to operate reliably in the most demanding industrial environments — including high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, vibration-intensive heavy manufacturing lines, and electromagnetically noisy power generation sites — this module delivers uncompromising communication stability where standard hardware fails.

Built on ProSoft Technology’s proven MVI56E platform, the MVI56E-MNETR supports both Modbus TCP/IP client and server functionality simultaneously, enabling bidirectional data exchange across complex SCADA architectures, distributed control systems, and multi-vendor automation networks. Its enhanced diagnostics and ProSoft Configuration Builder (PCB) software make commissioning and troubleshooting straightforward even in remote or hazardous field locations.

Rugged Specifications Table

Comprehensive Protection Solutions

The MVI56E-MNETR is rarely deployed in isolation. In a fully protected ControlLogix control cabinet, it operates alongside the 1756-L73 ControlLogix L7 Series CPU, which serves as the primary logic controller coordinating all I/O and communication tasks. Backplane power is supplied by the 1756-PA75 AC Power Supply, which provides stable, filtered power to all modules in the chassis — critical in environments where mains voltage fluctuates due to heavy motor loads or generator-backed power systems.

For field-level I/O, the MVI56E-MNETR works in conjunction with 1756-IB16 digital input modules and 1756-OB16E digital output modules, collecting process signals from sensors, limit switches, and actuators across the plant floor. In analog-intensive applications such as pressure, temperature, and flow monitoring, the 1756-IF8 analog input module provides the precision measurement data that the MVI56E-MNETR then transmits over Modbus TCP/IP to upstream SCADA or historian systems.

Where variable-speed motor control is required — common in pump stations, compressor drives, and conveyor systems — the MVI56E-MNETR facilitates communication between the ControlLogix controller and PowerFlex 755 variable frequency drives (VFDs), enabling closed-loop speed and torque regulation over the Ethernet network. Safety-critical applications benefit from integration with the 1756-L7S GuardLogix Safety Controller and 1791DS-IB8XOBV4 Compact GuardI/O safety modules, ensuring that the communication layer does not compromise SIL-rated safety functions.

Terminal connectivity within the control cabinet is managed through Phoenix Contact PTFIX distribution terminal blocks and Weidmüller WDU 2.5 series terminal modules, providing reliable, vibration-resistant wiring termination. For inter-cabinet and long-distance communication runs, ProSoft MVI56E-MNET (the non-redundant variant) or Hirschmann SPIDER series industrial Ethernet switches extend the Modbus TCP/IP network across large plant footprints with managed switching and VLAN segmentation.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the MVI56E-MNETR is deployed in wellhead RTU panels and pipeline SCADA systems, where it bridges legacy Modbus RTU field instruments — pressure transmitters, flow computers, and gas chromatographs — onto the plant’s Ethernet backbone. Its dual-port Ethernet design supports ring topology networks, providing redundant communication paths that maintain data integrity even if a single cable segment is damaged during maintenance or environmental events.

In coal and metal mining operations, control systems must endure constant mechanical vibration from crushers, conveyors, and haul road traffic, as well as heavy coal dust and silica particulate contamination. The MVI56E-MNETR’s conformal-coated PCB and sealed module housing resist particulate ingress, while its wide operating temperature range accommodates the thermal cycling experienced in underground and open-cut environments.

At thermal and hydroelectric power generation plants, the module integrates ControlLogix-based turbine control systems with energy management systems (EMS) and distributed energy resource management systems (DERMS) via Modbus TCP/IP, supporting real-time generation dispatch and grid synchronization data exchange. Its EMI hardening is particularly valuable in high-voltage switchyard environments where electromagnetic interference from bus bars and transformer switching can disrupt standard commercial-grade networking hardware.

In municipal and industrial water treatment facilities, the MVI56E-MNETR connects ControlLogix PLCs to chemical dosing systems, UV disinfection units, and SCADA historian servers, enabling continuous process monitoring and regulatory compliance reporting. Its reliable 24/7 operation profile makes it a preferred choice for unattended remote pump stations where maintenance access is infrequent and communication failures carry significant operational and environmental risk.

For metallurgical and steel production environments, where furnace heat radiation, cooling water humidity, and rolling mill vibration create extreme conditions, the MVI56E-MNETR’s industrial-grade design ensures that production data — including temperature profiles, roll force measurements, and quality control parameters — is transmitted without interruption to the plant MES and ERP systems.
