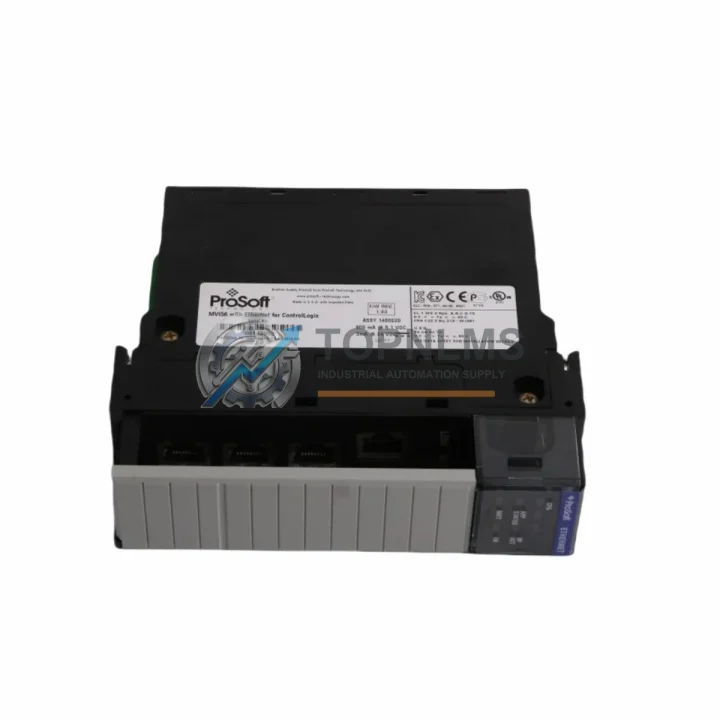

ProSoft MVI56-EGD Original Industrial Spare MVI56 Compatible

Product Overview

ProSoft MVI56-EGD Original Industrial Spare MVI56 Compatible: System Stability & Industrial Spare Parts Maintenance Value

In modern industrial automation environments, communication integrity between PLCs and field devices is the backbone of uninterrupted production. The ProSoft MVI56-EGD is an original GE Ethernet Global Data (EGD) protocol communication module engineered for Allen-Bradley ControlLogix backplane systems. Designed to bridge ControlLogix controllers with GE Fanuc PLCs, drives, and HMI systems over standard Ethernet, this module is a mission-critical spare for any facility running mixed-vendor automation architectures.

When a communication module fails unexpectedly, the downstream impact is immediate: production lines halt, operators lose visibility, and maintenance teams face intense pressure to restore normal operation. Holding a verified original MVI56-EGD in your spare parts inventory eliminates the most dangerous variable in that scenario — lead time. With a tested, ready-to-deploy unit on the shelf, your team can execute a swap in minutes rather than waiting days or weeks for procurement.

Critical Technical Specs

Preventive Maintenance Strategy

The MVI56-EGD does not operate in isolation. It sits within a broader ControlLogix control cabinet ecosystem, and a disciplined preventive maintenance program must account for the health of every component in that communication chain. During scheduled shutdowns or routine inspections, maintenance engineers should treat the MVI56-EGD replacement as a trigger for a comprehensive cabinet audit.

Begin with the 1756-A7 or 1756-A10 ControlLogix chassis itself — inspect for physical damage, backplane connector wear, and proper module seating. A compromised chassis slot can cause intermittent communication faults that are easily misdiagnosed as module failure. Next, verify the integrity of the 1756-PA72 or 1756-PB72 power supply module; an aging or undersized power supply is a leading cause of unexplained module resets and EGD exchange timeouts.

The Ethernet network path deserves equal attention. Inspect the industrial Ethernet switch (such as a Stratix 2000 or Stratix 5700) for port errors, duplex mismatches, and firmware currency. A degraded switch port can introduce packet loss that disrupts EGD exchange cycles, causing the MVI56-EGD to report communication errors even when the module itself is healthy. Check all Cat5e/Cat6 industrial Ethernet patch cables between the module, switch, and GE Fanuc devices — cable degradation is frequently overlooked during root-cause analysis.

On the GE Fanuc side of the communication link, inspect the GE Fanuc CMM module or PACSystems RX3i Ethernet interface for firmware version compatibility with the EGD exchange configuration. Mismatched firmware between the ProSoft module and the GE controller is a common source of intermittent data exchange failures after system upgrades.

Within the same control cabinet, it is good practice to simultaneously inspect the 1756-EN2T or 1756-EN3TR EtherNet/IP bridge module if present, as it shares the same backplane power budget and network infrastructure. Verify that 1756-IB16 or 1756-OB16 digital I/O modules are firmly seated and that their removable terminal blocks show no signs of oxidation or loose wiring — loose I/O connections during a communication module swap can introduce false fault signals that complicate commissioning.

For facilities running legacy GE Series 90-30 or 90-70 PLCs alongside newer ControlLogix systems, the MVI56-EGD is often the sole integration bridge. In these environments, also schedule inspection of the GE IC693CMM321 or IC693CMM311 communications coprocessor on the GE side, and ensure the ProSoft MVI56-MCM or MVI56-MNET module (if used for parallel Modbus or Ethernet/IP paths) is running current firmware. Maintaining a spare for each critical communication module in a mixed-vendor cabinet is the most cost-effective insurance against unplanned downtime.

Finally, review the UPS (uninterruptible power supply) protecting the control panel. Communication modules are particularly sensitive to power transients; a failing UPS battery that allows even brief voltage sags can corrupt module configuration memory and trigger full re-initialization, which in a live production environment can mean minutes of lost output per event.

Strategic Replacement Solutions

The MVI56-EGD was introduced to solve a specific and persistent challenge in multi-vendor industrial environments: enabling reliable, high-speed data exchange between Allen-Bradley ControlLogix systems and GE Fanuc automation platforms without custom middleware or protocol converters. As both platforms have evolved, the MVI56-EGD has remained the proven, field-validated solution for this integration requirement.

For facilities operating aging ControlLogix L6x-generation systems, the MVI56-EGD provides a direct, slot-compatible replacement path that requires no chassis modification and no changes to the existing GE EGD exchange configuration — provided the replacement unit is loaded with the same ProSoft Configuration Builder project file. This means a trained technician can complete a hot-swap replacement during a planned maintenance window in under 30 minutes, dramatically reducing the mean time to repair (MTTR) compared to sourcing a replacement through standard distribution channels.

For facilities planning a ControlLogix platform migration from L6x to L7x or L8x controllers, the MVI56-EGD is fully compatible with the newer chassis generations, protecting the existing GE EGD integration investment during the controller upgrade cycle. This forward compatibility makes stocking the MVI56-EGD a strategically sound decision even for facilities mid-way through a modernization program.

Procurement teams should note that the MVI56-EGD has a long field service history and is available as original new, certified surplus, and factory-refurbished stock. For critical production environments, sourcing original new units with documented test records and a 12-month warranty — as supplied by TOPNLMS — provides the highest confidence in module reliability and the strongest basis for maintenance budget justification.

Support FAQ

Q1: What is the expected service life of the MVI56-EGD, and when should I plan for replacement?
The MVI56-EGD is a mature, field-proven module with a typical service life exceeding 10 years under normal operating conditions. ProSoft Technology has announced end-of-life for new production, making original surplus stock increasingly valuable. We recommend establishing a minimum stock of one spare unit per production line that relies on GE EGD communication, and reviewing your spare parts inventory annually against your facility’s criticality assessment.

Q2: How do I verify compatibility between the MVI56-EGD and my existing ControlLogix system before installation?
Compatibility verification requires confirming three parameters: (1) your ControlLogix chassis accepts standard MVI56-series modules (any 1756-series chassis is compatible); (2) your RSLogix 5000 / Studio 5000 project includes the correct MVI56-EGD Add-On Instruction (AOI) and ladder logic; and (3) the ProSoft Configuration Builder project file matches the EGD exchange parameters configured on your GE Fanuc controller. TOPNLMS can provide technical documentation support to assist with pre-installation compatibility verification.

Q3: What pre-shipment testing does TOPNLMS perform on the MVI56-EGD?
Every MVI56-EGD unit shipped by TOPNLMS undergoes functional power-on testing, firmware version verification, and physical inspection for connector integrity and board condition. Units are shipped with anti-static packaging and include a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Test records are available upon request for quality-critical procurement processes.

Q4: Can the MVI56-EGD configuration be transferred directly from a failed unit to a replacement?
Yes. The MVI56-EGD stores its configuration in non-volatile flash memory, but the configuration is also maintained in the ProSoft Configuration Builder project file, which should be archived as part of your facility’s document control system. On replacement, simply download the saved PCB project to the new module via the RS-232 configuration port or Ethernet, and the module will resume normal EGD exchange operation. If the original PCB project file is unavailable, TOPNLMS technical support can assist with configuration reconstruction from the GE controller’s EGD exchange parameters.
