Prosoft MVI56-ADM Original Industrial Spare MVI56 Compatible

Product Overview

Prosoft MVI56-ADM Original Industrial Spare MVI56 Compatible

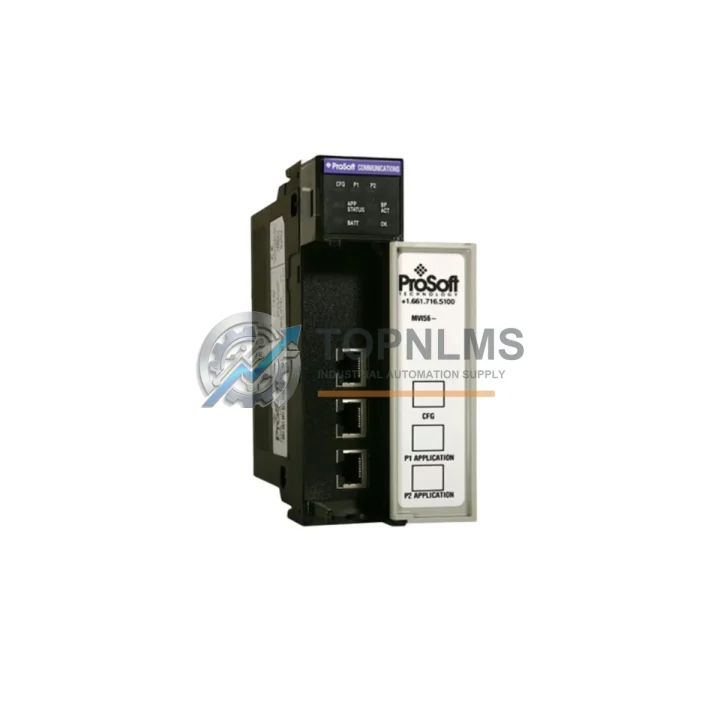

The Prosoft Technology MVI56-ADM (Advanced Driver Module) is a purpose-built custom protocol development module designed for the MVI56 Series platform, fully compatible with Rockwell Automation ControlLogix backplane architectures. In industrial maintenance environments where legacy communication protocols must be preserved and system continuity is non-negotiable, the MVI56-ADM delivers the flexibility and reliability that maintenance engineers depend on. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a strategic spare parts inventory, this module represents a critical asset in any ControlLogix-based control system.

At TOPNLMS, every MVI56-ADM unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month quality warranty. We ship globally from Xiamen, China, with fast lead times and full documentation support to minimize your downtime and simplify your procurement process.

Critical Technical Specs Table

Preventive Maintenance Strategy

A well-structured preventive maintenance program for any ControlLogix-based system goes far beyond replacing a single module. When scheduling maintenance around the MVI56-ADM, experienced maintenance engineers know that adjacent components in the same chassis and communication loop should be inspected simultaneously to avoid repeat shutdowns.

Start with the 1756-L71 or 1756-L73 ControlLogix CPU — the processor that hosts the ladder logic and MSG instructions communicating with the MVI56-ADM. Firmware mismatches between the CPU and the communication module are a leading cause of intermittent faults after replacement. Alongside the CPU, inspect the 1756-PA72 or 1756-PB72 power supply module in the chassis; an aging power supply with marginal output voltage can cause unexplained module resets that are often misdiagnosed as communication failures.

For serial-side wiring integrity, check the RS-232 or RS-485 communication cables connecting the MVI56-ADM to field devices or third-party controllers. Shielded, twisted-pair cables with proper grounding are essential in electrically noisy environments. If the system uses RS-485 multi-drop topology, inspect the terminal resistors and signal isolators at both ends of the bus — degraded termination is a frequent source of framing errors that appear as module faults.

Within the same ControlLogix chassis, review the 1756-EN2T or 1756-EN3TR EtherNet/IP communication module if the MVI56-ADM is bridging legacy serial devices into an Ethernet-based SCADA or DCS network. A failing EN2T can cause data latency that masks the true performance of the MVI56-ADM. Similarly, inspect any 1756-IB16 or 1756-OB16 digital I/O modules in the chassis for loose backplane connectors or blown output channels that may be contributing to system instability.

For systems where the MVI56-ADM interfaces with third-party PLCs or RTUs via Modbus RTU or custom ASCII protocols, it is advisable to maintain a spare Prosoft MVI56-MCM (Modbus Communication Module) alongside the MVI56-ADM. These two modules share the same MVI56 platform architecture and spare parts strategy, making joint procurement cost-effective. Additionally, consider stocking a Prosoft MVI56-DFCM or MVI56-PDPMV1 if your facility operates mixed-protocol environments — having protocol-specific spares on the shelf eliminates the need for emergency procurement during a fault event.

Finally, inspect the 1756 chassis backplane connectors and chassis itself for oxidation or physical damage. A cracked or corroded backplane is often overlooked during module-level troubleshooting but can cause intermittent communication errors across all installed modules. Replacing the chassis as part of a planned overhaul, rather than reactively, is a hallmark of mature industrial maintenance practice.

Strategic Replacement Solutions

The Prosoft MVI56-ADM has been in service across a wide range of industries — oil and gas terminal automation, water treatment SCADA systems, automotive assembly line control, and pharmaceutical batch processing — for well over a decade. Many of these installations rely on custom communication drivers developed specifically for the MVI56-ADM’s programmable serial engine, making direct replacement with the same part number the only viable option for maintaining system integrity without costly re-engineering.

When the original OEM supply channel is discontinued or lead times extend beyond acceptable downtime windows, TOPNLMS provides a reliable alternative sourcing path. Our inventory of MVI56-ADM units is maintained specifically to support facilities that cannot afford to wait weeks for factory-direct fulfillment. Each unit undergoes pre-shipment testing to verify backplane communication, serial port functionality, and firmware integrity before dispatch.

For facilities managing end-of-life ControlLogix systems, the MVI56-ADM also plays a strategic role in system life extension. Rather than migrating an entire control architecture — a project that can cost hundreds of thousands of dollars and require months of engineering — maintaining a stock of critical communication modules like the MVI56-ADM allows operations to continue reliably while a phased modernization plan is developed. This approach is widely adopted in mining, power generation, and heavy manufacturing, where system uptime requirements make immediate platform migration impractical.

TOPNLMS ships the MVI56-ADM with full packaging, module documentation, and a pre-shipment test report. Standard international shipping from Xiamen, China, reaches most destinations within 5–10 business days, with expedited options available for critical maintenance situations.

Support FAQ

Q1: What does the 12-month warranty cover for the MVI56-ADM?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before shipment for backplane communication and serial port operation. If a fault is confirmed within the warranty period, we provide replacement or refund support. Contact [email protected] with your order details and fault description to initiate a warranty claim.

Q2: How do I verify compatibility between the MVI56-ADM and my existing ControlLogix system?
The MVI56-ADM is compatible with all standard ControlLogix 1756-series chassis and any firmware-supported ControlLogix CPU (L6x and L7x families). Compatibility depends primarily on the RSLogix 5000 / Studio 5000 project version and the Prosoft Configuration Builder (PCB) software version used to configure the module. We recommend confirming your CPU firmware version and PCB version before installation. Our technical team can assist with compatibility verification upon request.

Q3: Can the MVI56-ADM replace a failed unit without reprogramming the entire system?
Yes, in most cases. The MVI56-ADM configuration is stored in the ControlLogix CPU’s project file and downloaded to the module at startup. A direct hardware replacement — same slot, same firmware — typically requires only a project download from the engineering workstation, not a full system reconfiguration. Retaining a backup of your RSLogix/Studio 5000 project and PCB configuration file is strongly recommended as part of your spare parts strategy.

Q4: What is the recommended spare parts stocking strategy for the MVI56-ADM?
For critical production lines with no redundancy, we recommend maintaining at least one MVI56-ADM on the shelf at all times. For multi-line facilities using the same module type, a ratio of one spare per three to five installed units is a common industry benchmark. Pairing the MVI56-ADM spare with a compatible ControlLogix power supply and CPU backup ensures that a complete chassis recovery is possible without waiting for external procurement.
