ProSoft MVI46-MBP Ruggedized Modbus Plus Network Module

Product Overview

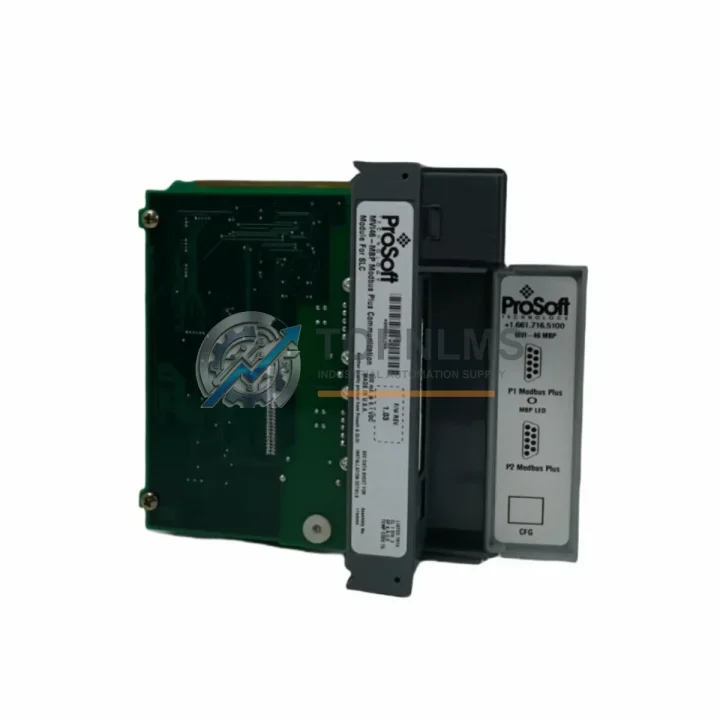

ProSoft MVI46-MBP Ruggedized Modbus Plus Network Module for Harsh Industrial Environments

The ProSoft MVI46-MBP is a high-performance Modbus Plus network communication module engineered for seamless integration into Allen-Bradley SLC 500 backplane systems. Designed to operate reliably in the most demanding industrial environments — including high-temperature process floors, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing lines — the MVI46-MBP delivers deterministic, fault-tolerant data exchange between Modbus Plus networks and SLC 500 programmable logic controllers.

In critical production environments where communication failure is not an option, the MVI46-MBP provides the network backbone that keeps distributed control architectures synchronized. Its robust hardware design incorporates wide-range operating temperature tolerance, conformal coating options for moisture and corrosion resistance, and superior electromagnetic interference (EMI) shielding — making it the preferred choice for engineers specifying components in oil and gas upstream facilities, chemical processing plants, and high-cycle automotive assembly lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The MVI46-MBP is rarely deployed in isolation — it functions as the communication spine of a broader SLC 500 control architecture. In a typical control cabinet configuration, the module occupies a standard 1746 backplane slot alongside the SLC 5/05 processor (1747-L553), which handles ladder logic execution and peer-to-peer Ethernet communications. Discrete I/O is managed through modules such as the 1746-IB16 (16-point 24 VDC input) and 1746-OB16 (16-point transistor output), while analog process variables — temperature, pressure, and flow — are acquired via the 1746-NI4 analog input module.

For installations requiring intrinsic safety barriers or zone-rated protection in hazardous areas classified under ATEX or IECEx, the MVI46-MBP is commonly paired with MTL Instruments Zener barriers or Pepperl+Fuchs isolated signal conditioners to ensure field-side protection without compromising backplane signal integrity. In high-vibration environments such as compressor stations or offshore platforms, the entire SLC 500 rack is typically housed in a Rittal TS 8 stainless steel enclosure with anti-vibration mounting hardware.

Power integrity is maintained through a dedicated 1746-P4 power supply module, which provides regulated 5 VDC and 24 VDC rails to the backplane. For facilities requiring uninterruptible control during grid disturbances, an industrial UPS unit — such as the Phoenix Contact QUINT-UPS series — is installed upstream of the SLC 500 rack. On the network side, the Modbus Plus segment managed by the MVI46-MBP may interconnect with Schneider Electric Quantum PLCs or legacy Modicon 984 controllers, enabling cross-platform data exchange in mixed-vendor plant environments.

Safety-critical applications often integrate the MVI46-MBP within a broader safety instrumented system (SIS), where it passes process data to a Triconex Tricon safety controller or a Hima HIMax safety PLC for independent high-integrity shutdown logic. Communication health is continuously monitored via the module’s onboard diagnostic LEDs and status registers, which can be polled by the SLC 5/05 processor and surfaced on a PanelView 550 HMI terminal for operator awareness.

Application in Critical Infrastructure

In oil and gas upstream operations, the MVI46-MBP enables wellhead RTUs and compressor control panels to exchange real-time production data with central SCADA systems over Modbus Plus networks. Its sealed connector design and wide operating temperature range make it suitable for outdoor equipment shelters in desert or arctic climates where ambient temperatures fluctuate dramatically across seasons.

In underground mining operations, where explosive atmospheres and persistent vibration are constant concerns, the MVI46-MBP is deployed in ventilation control systems and conveyor drive panels. Its deterministic Modbus Plus communication ensures that emergency stop commands and gas detection alarms are transmitted without latency, directly supporting compliance with IEC 62061 and ISO 13849 functional safety standards.

At thermal power generation facilities, the module integrates boiler management PLCs with turbine governor systems, providing the real-time data throughput required for load-following operations. In municipal water treatment plants, it connects chemical dosing controllers and pump station PLCs across multi-building SCADA architectures, where network reliability directly impacts public health outcomes.

In metallurgical and steel production environments — characterized by intense electromagnetic interference from arc furnaces and induction heaters — the MVI46-MBP’s EMI-hardened design maintains communication integrity where standard industrial modules may experience data corruption or watchdog faults. Its proven compatibility with the SLC 500 ecosystem makes it a trusted spare-parts investment for facilities running legacy Allen-Bradley control systems that are not yet scheduled for migration to ControlLogix or CompactLogix platforms.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the MVI46-MBP?
Every MVI46-MBP unit shipped by TOPNLMS carries a 12-month quality warranty from the date of delivery. If the module exhibits any manufacturing defect or functional failure under normal operating conditions within this period, we provide replacement or full refund support. Our warranty process is straightforward — contact us directly at [email protected] with your order reference and fault description.

Q2: How is each unit tested before shipment?
All MVI46-MBP modules undergo pre-shipment functional verification, including power-on self-test, backplane communication check, and Modbus Plus port continuity inspection. Units sourced from authorized distribution channels are cross-referenced against ProSoft Technology’s serial number database where applicable. We do not ship untested or cosmetically damaged units.

Q3: Is the MVI46-MBP compatible with all SLC 500 rack configurations?
Yes. The MVI46-MBP is designed for the Allen-Bradley 1746 backplane and is compatible with all standard SLC 500 rack sizes (4-slot through 13-slot). It occupies one standard I/O slot and draws power from the backplane’s 5 VDC rail. It is compatible with all SLC 5/01 through SLC 5/05 processors. For ControlLogix or CompactLogix migration projects, ProSoft offers the MVI56-MBP as the equivalent platform.

Q4: Can TOPNLMS support long-term or repeat procurement of the MVI46-MBP?
Yes. TOPNLMS maintains strategic inventory of high-demand ProSoft MVI46-series modules to support ongoing maintenance, spare-parts programs, and emergency replacement requirements. We serve industrial facilities, system integrators, and MRO procurement teams globally. For volume pricing, lead time commitments, or blanket order arrangements, contact our technical sales team at [email protected] or call +86 18359293191.
