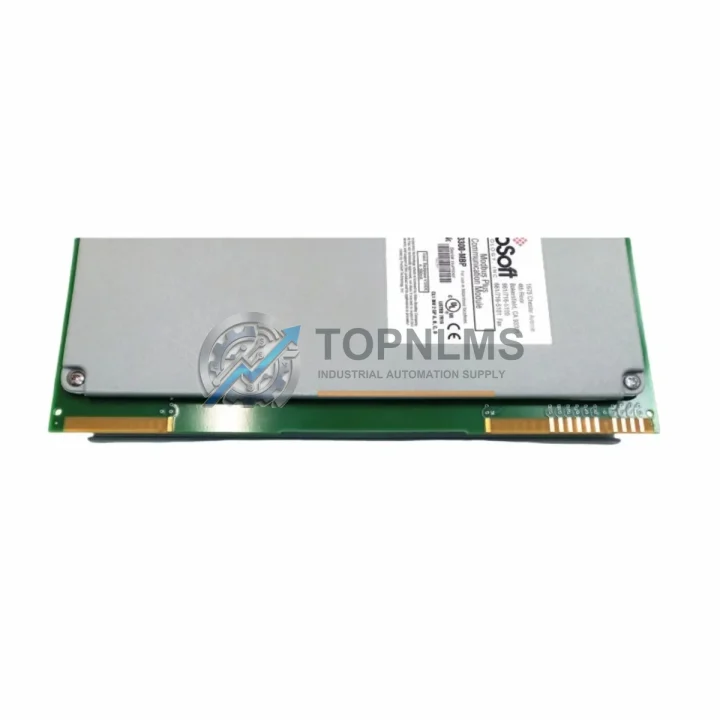

ProSoft 3300-MBP Replacement/Upgrade for MBP Series

Product Overview

ProSoft 3300-MBP Replacement/Upgrade for MBP Series: Seamless Transition from Legacy Modbus Plus Networks

When your existing Modbus Plus network infrastructure reaches end-of-life or your original ProSoft Technology 3300-MBP module becomes unavailable through standard distribution channels, the migration path forward demands a solution that preserves your investment in existing wiring, programming logic, and control cabinet architecture. The 3300-MBP is a Modbus Plus network communication module designed for integration into legacy PLC backplane systems, enabling bidirectional data exchange between Modbus Plus networks and host controller platforms. For facilities running aging Modicon Quantum, Modicon Premium, or early Schneider Electric PLC architectures alongside ProSoft gateway solutions, this module represents a critical link in the control system chain — and sourcing a verified replacement is often the fastest path to restoring full network integrity without a full system overhaul.

Many industrial sites still operate Modbus Plus (MB+) networks that were installed in the 1990s and early 2000s. These networks connect field devices, drives, and remote I/O stations using the MB+ token-passing protocol over twisted-pair cabling. Replacing a failed 3300-MBP module allows engineers to restore this communication backbone without re-engineering the entire network topology, re-terminating field cables, or rewriting ladder logic programs. The module slots directly into the existing backplane, and with correct DIP switch configuration and node address assignment, the host controller resumes Modbus Plus peer-to-peer communication with minimal commissioning time.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300-MBP replacement rarely happens in isolation. In most retrofit scenarios, the module is one component within a broader ProSoft 3000-series gateway chassis. The ProSoft 3000 backplane (or 3150-MCM chassis) houses multiple communication modules simultaneously, so engineers replacing the 3300-MBP often audit adjacent slots at the same time — particularly if the system also runs a ProSoft 3150-MCM Modbus Master/Slave module or a ProSoft 3170-MBP Modbus Plus bridge for cross-network routing.

On the field device side, Modbus Plus networks typically connect to Schneider Electric ATV drives (such as the ATV61 or ATV71 series) and Modicon Quantum I/O drop adapters via the MB+ coaxial or twisted-pair trunk. When replacing the 3300-MBP, it is good practice to verify that all MB+ network terminators are correctly installed at both ends of the trunk cable — a missing 150-ohm terminator is a common cause of token-passing failures after module swap. If the host PLC is a Modicon Quantum 140CPU series controller, the MB+ port on the CPU itself should also be inspected for firmware compatibility with the replacement module’s node address.

For sites that are simultaneously modernizing their HMI layer, a Schneider Electric Magelis HMIGTO or equivalent panel can be retained on the Modbus Plus network during the transition, as the 3300-MBP supports standard MB+ global data and messaging services that these HMIs rely on. Engineers migrating from older Modicon 984 or TSX Quantum PLCs to newer Schneider M340 or M580 platforms often use the 3300-MBP as a bridging module during the phased cutover, keeping legacy MB+ field devices online while the new Ethernet-based control layer is commissioned in parallel. This approach dramatically reduces planned downtime and eliminates the need for a single-night full cutover.

If your retrofit also involves replacing aging ProSoft 3100-MCM or 3200-MNET modules in adjacent backplane slots, our team can source and test multiple modules simultaneously, allowing you to receive a complete slot-for-slot replacement kit in a single shipment — reducing the number of maintenance windows required.

Retrofit Guidance FAQ

Q: Will the 3300-MBP fit directly into my existing ProSoft 3000-series backplane without any mechanical modification?
A: Yes. The 3300-MBP uses the standard ProSoft 3000-series single-slot form factor. It inserts directly into any open or occupied slot in the 3000-series chassis. No bracket modification, DIN rail adapter, or cabinet re-work is required.

Q: Do I need to re-configure the module from scratch, or can I reuse my existing configuration file?
A: If you have a backup configuration file from ProSoft Configuration Builder, it can be loaded directly onto the replacement 3300-MBP. If no backup exists, the module must be reconfigured using the original network parameters (node address, data block mapping, MB+ global data table assignments). Our technical team can assist with configuration guidance upon request.

Q: Is the Modbus Plus protocol on this module compatible with Modicon Quantum MB+ ports?
A: Yes. The 3300-MBP implements the standard Modbus Plus token-passing protocol at 1 Mbps, which is fully interoperable with Modicon Quantum CPU MB+ ports, Modicon Premium MB+ ports, and any other MB+-compliant device on the same network segment.

Q: My control cabinet has limited depth. Will the 3300-MBP fit without clearance issues?
A: The 3300-MBP has the same physical depth as the original ProSoft 3000-series modules. If the original module fit in your cabinet, the replacement will as well. No additional clearance is needed for wiring or ventilation beyond what was already provided for the original installation.

Q: Can I replace just the 3300-MBP without replacing the entire ProSoft gateway chassis?
A: Yes. The 3300-MBP is a hot-swap-capable module in most 3000-series chassis configurations (verify with your specific chassis documentation). In non-hot-swap configurations, the chassis must be powered down briefly for the module swap, but the remaining modules in adjacent slots are unaffected.

Q: What is the lead time and how is the module tested before shipment?
A: Units in stock ship within 1–3 business days from our Xiamen warehouse. Each module undergoes power-on functional testing and visual inspection before dispatch. A test report is available upon request for quality-critical procurement processes.

Warranty Assurance

Every ProSoft 3300-MBP module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) scenarios. If a module fails within the warranty period, we provide a free replacement or full refund — your choice — with no restocking fee and no requirement to return the failed unit for evaluation before a replacement is dispatched.

Prior to shipment, each unit is subjected to a standardized pre-delivery inspection protocol: power-on self-test verification, backplane connector integrity check, and firmware version confirmation. Units that do not pass inspection are quarantined and never shipped. This process ensures that the module you receive is ready for installation without additional bench testing on your end.

Our after-sales response time is within 24 hours on business days. For urgent replacement scenarios — such as unplanned production line stoppages — we offer expedited shipping options and can coordinate with freight forwarders for same-day dispatch on confirmed orders placed before 14:00 CST. Our procurement team is experienced in supporting MRO (Maintenance, Repair & Operations) buyers, EPC contractors, and system integrators who require documented traceability, packing lists, and commercial invoices for customs clearance.

TOPNLMS maintains a standing inventory of ProSoft Technology legacy modules specifically to support industrial facilities that cannot afford extended lead times from standard distribution channels. Our stock is sourced from authorized supply chains and verified against original manufacturer specifications before listing.
