Emerson PR9268/017-100 Original Industrial Spare PR9268 Compatible

Product Overview

Emerson PR9268/017-100 Original Industrial Spare PR9268 Compatible: System Stability & Rotating Machinery Protection

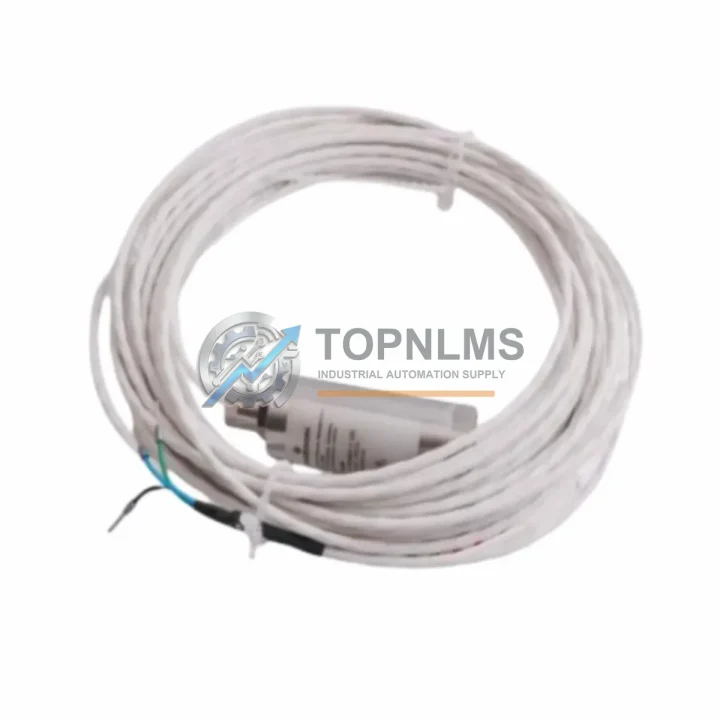

In petrochemical plants, power generation facilities, compressor stations, and rotating machinery installations worldwide, the integrity of your vibration monitoring system is the last line of defense against catastrophic mechanical failure. The Emerson PR9268/017-100 is an original proximity vibration transducer from Emerson’s proven PR9268 Series, manufactured to API 670 standards for continuous, precision eddy-current displacement sensing. Sourced and verified for authenticity, this unit is a mission-critical spare for any facility operating Emerson-compatible vibration monitoring systems, Bently Nevada-compatible machinery protection panels, or legacy rotating machinery protection architectures.

When a proximity transducer fails in a rotating machinery protection loop, the consequences extend far beyond a single sensor replacement. Unplanned downtime, emergency procurement delays, and cascading system faults can cost facilities tens of thousands of dollars per hour. Stocking the PR9268/017-100 as a verified original spare eliminates that risk — enabling your maintenance team to execute a fast, confident replacement without compatibility guesswork or extended lead-time exposure.

Critical Technical Specs Table

Preventive Maintenance Strategy

The PR9268/017-100 does not operate in isolation — it is one critical link in a complete vibration measurement chain. During any scheduled shutdown or corrective maintenance event involving this sensor, experienced maintenance engineers know that a thorough inspection of surrounding system components is essential to prevent repeat failures and maximize uptime between service intervals.

The PR9268/017-100 probe works in conjunction with a matched PR9268 Series extension cable and a PR9268 driver/oscillator unit. If the probe is being replaced due to sensitivity drift or physical damage, the extension cable must be inspected for insulation breakdown, connector corrosion, or impedance mismatch — a degraded cable can introduce false readings even with a new probe installed. The driver unit’s output voltage and linearity should simultaneously be verified against calibration records to confirm the full measurement chain is performing within specification.

In rotating machinery protection panels, the PR9268/017-100 feeds signal into a vibration monitoring module or machinery protection rack — such as Emerson CSI rack cards or Bently Nevada 3500 Series I/O modules. These rack-mounted cards should be inspected for loose terminal connections, firmware currency, and channel calibration during the same maintenance window. A faulty channel card can mask a genuine vibration alarm even when the transducer itself is functioning correctly, creating a dangerous blind spot in your machinery protection logic.

Beyond the measurement chain, the broader control cabinet environment deserves systematic attention. 24 VDC power supply modules feeding the monitoring rack should be load-tested; an aging PSU with voltage ripple can introduce noise into proximity sensor signals and trigger nuisance alarms. Signal isolator modules positioned between the transducer output and the DCS or PLC analog input card protect against ground loops — these should be checked for output drift and replaced on a 5–7 year preventive cycle. Terminal blocks and DIN rail connectors within the vibration monitoring cabinet are frequent sources of intermittent faults and should be re-torqued and inspected for oxidation at every planned outage.

For facilities running Emerson DeltaV, Honeywell Experion, or third-party DCS platforms, the analog input cards receiving the voltage or 4–20 mA output from the transducer chain should be verified for channel accuracy and zero-drift. If the control system includes a safety instrumented system (SIS) relay module tied to the vibration trip logic, its proof-test records should be reviewed and functional testing scheduled concurrently with the transducer replacement. Procurement teams supporting rotating machinery maintenance programs are also advised to maintain buffer stock of proximity probe tip assemblies, armored extension cables, and driver module spares to support rapid field replacement without exposure to international lead times.

For older installations where the PR9268/017-100 is part of a legacy machinery protection system, a concurrent audit of the HMI or SCADA display configuration is recommended — confirming that vibration trend data is being archived correctly, that alarm setpoints reflect current API 670 recommendations for the specific machine train, and that any communication modules linking the protection rack to the plant historian are operating without data gaps.

Strategic Replacement Solutions

The PR9268/017-100 is the direct original replacement for aging or failed PR9268 Series proximity probes in existing installations. Because it is manufactured to the same dimensional and electrical specifications as the original factory-fitted unit, it can be installed without recalibrating the driver or modifying the measurement chain — a critical advantage when minimizing downtime during an unplanned outage.

For facilities managing end-of-life rotating machinery where OEM support has been discontinued, the PR9268/017-100 provides a cost-effective path to extending system life without a full machinery protection system upgrade. Its API 670 compliance ensures it meets the same functional safety requirements as modern alternatives, making it acceptable for use in both legacy and upgraded monitoring architectures.

Maintenance planners operating multi-unit facilities — with multiple compressor trains, turbine sets, or pump stations — benefit from standardizing on the PR9268/017-100 as the site-wide proximity transducer spare. Standardization reduces the number of unique part numbers held in the storeroom, simplifies technician training, and accelerates mean time to repair (MTTR) when a sensor failure occurs on any machine in the fleet.

All units supplied by TOPNLMS are individually tested for output linearity, gap sensitivity, and connector integrity prior to shipment. Each unit ships with a test report and is covered by a 12-month warranty from the date of delivery — providing procurement teams with the documentation required for maintenance records and audit compliance.

Support FAQ

Q1: What is the expected service life of the PR9268/017-100, and when should it be replaced proactively?
Under normal operating conditions — continuous rotation, stable temperature, and clean cable routing — the PR9268/017-100 typically delivers 5–10 years of reliable service. Proactive replacement is recommended when sensitivity drift exceeds ±5% of the original calibration value, when the cable jacket shows cracking or abrasion, or when the connector exhibits corrosion. For critical machinery, many facilities adopt a 5-year scheduled replacement cycle regardless of measured performance to eliminate unplanned failure risk.

Q2: Is the PR9268/017-100 compatible with Bently Nevada monitoring systems?
The PR9268 Series is designed to be compatible with API 670-compliant monitoring systems, including many Bently Nevada 3500 Series rack configurations, provided the driver/oscillator unit and extension cable are correctly matched. Compatibility should be verified against the specific monitoring rack’s input impedance and signal range specifications before installation. Contact our technical team with your rack model number for confirmation prior to procurement.

Q3: How is the unit tested before shipment, and what documentation is provided?
Every PR9268/017-100 unit is bench-tested for output voltage linearity across the specified gap range, connector continuity, and cable insulation integrity before dispatch. A test record is included with each shipment. Units are packaged in anti-static, impact-resistant packaging to prevent transit damage. The 12-month warranty covers manufacturing defects and performance deviations from published specifications.

Q4: What is the recommended inventory strategy for facilities with multiple rotating machines?
For facilities with 5 or more machines using PR9268 Series transducers, maintaining a minimum of 2–3 spare probes on-site is strongly recommended. Given typical international shipping lead times of 3–7 business days, on-site stock eliminates the risk of extended downtime during an unplanned failure event. Bulk procurement of 5+ units is available — contact us for volume pricing and consolidated shipment options.
