PMC-Sierra PMC-GBIT-DT2BP Ruggedized Dual-Port GbE Module

Product Overview

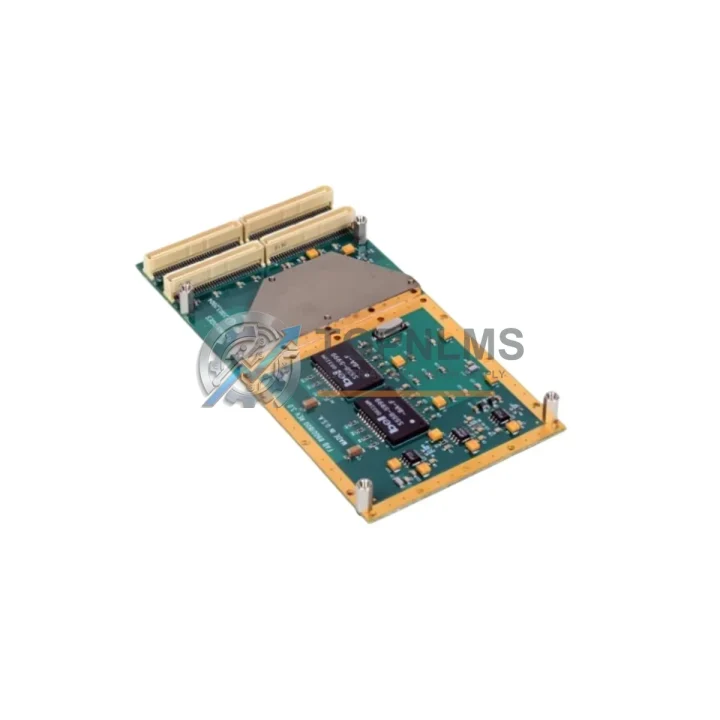

PMC-Sierra PMC-GBIT-DT2BP: Ruggedized Dual-Port GbE PMC Mezzanine Card for Harsh Industrial Environments

The PMC-Sierra PMC-GBIT-DT2BP (PMC610J4RC) is a high-reliability, dual-port Gigabit Ethernet PMC mezzanine card engineered for continuous operation in the most demanding industrial and mission-critical environments. Designed to integrate seamlessly into VMEbus, CompactPCI, and embedded computing platforms, this module delivers deterministic, high-throughput network connectivity where standard commercial-grade hardware simply cannot survive. Whether deployed in a control cabinet on a steel mill floor, a remote oil and gas SCADA node, or a power utility substation, the PMC-GBIT-DT2BP is built to maintain signal integrity and communication reliability under conditions of extreme temperature cycling, mechanical vibration, electromagnetic interference (EMI), and continuous 24/7 duty cycles.

Industrial automation systems depend on uninterrupted data exchange between PLCs, DCS controllers, I/O subsystems, and supervisory networks. The PMC-GBIT-DT2BP serves as the backbone communication interface in these architectures, providing two independent IEEE 802.3 Gigabit Ethernet ports that support full-duplex operation, auto-negotiation, and jumbo frame handling. Its ruggedized PCB construction, conformal coating compatibility, and extended operating temperature range make it a preferred choice for system integrators and maintenance engineers who cannot afford communication failures in live production environments.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the PMC-GBIT-DT2BP does not operate in isolation — it is a critical node within a layered system of protection, control, and communication hardware. When integrated into a VMEbus or CompactPCI chassis, it works alongside single-board computers (SBCs) such as the Emerson MVME5500 or Radstone PPMC750, providing the Ethernet uplink that connects embedded controllers to plant-level SCADA and DCS networks. In Siemens S7-400 or Rockwell ControlLogix-based DCS environments, the module can serve as the communication bridge between legacy backplane I/O and modern Ethernet-based supervisory systems.

For installations in high-EMI environments — such as those adjacent to variable frequency drives (VFDs), large motor starters, or high-voltage switchgear — the PMC-GBIT-DT2BP’s hardware-level EMI filtering and shielded port design help maintain packet integrity where software-only solutions fail. It pairs naturally with industrial Ethernet switches such as the Hirschmann RS20 or Moxa EDS-408A, which provide managed Layer 2 switching with PROFINET or EtherNet/IP support, ensuring end-to-end deterministic communication across the control network.

Power integrity is equally critical in harsh environments. The module operates from standard PCI 3.3V/5V rails, making it compatible with industrial-grade power supplies and backplane power systems found in Elma Bustronic or Schroff VME/cPCI chassis. When deployed alongside redundant power modules and UPS systems, the PMC-GBIT-DT2BP contributes to a zero-single-point-of-failure network architecture. Safety relay modules, such as the Pilz PNOZ X series or Phoenix Contact PSR safety relays, are often co-located in the same control cabinet, and the reliable Ethernet connectivity provided by this PMC card ensures that safety status signals are transmitted to the supervisory layer without latency or packet loss.

Terminal modules, marshalling panels, and I/O junction boxes connected via PROFIBUS DP or Modbus TCP gateways also benefit from the stable upstream Ethernet link that the PMC-GBIT-DT2BP provides. In distributed control architectures where remote I/O nodes — such as Siemens ET 200M or Beckhoff EK1100 EtherCAT couplers — report to a central controller, the reliability of the PMC mezzanine card’s dual-port design allows for active-standby port redundancy, eliminating network downtime during cable faults or switch failures.

Application in Critical Infrastructure

The PMC-Sierra PMC-GBIT-DT2BP is deployed across a wide range of critical infrastructure sectors where communication failure carries significant operational, safety, and financial consequences.

Oil & Gas: In upstream and midstream facilities — including offshore platforms, pipeline SCADA stations, and LNG terminals — embedded computing systems must operate continuously in environments characterized by explosive atmospheres, salt spray, and extreme temperature swings. The PMC-GBIT-DT2BP provides the Ethernet backbone for RTUs and safety instrumented systems (SIS) that monitor pressure, flow, and valve status in real time. Its dual-port design supports network redundancy mandated by IEC 61511 functional safety standards.

Mining & Metals: Underground mining operations and surface smelting facilities expose control hardware to heavy vibration, coal dust, and corrosive gases. The PMC-GBIT-DT2BP’s ruggedized construction allows it to maintain reliable communication between conveyor control PLCs, ventilation management systems, and surface SCADA servers — even when installed in vibration-isolated control enclosures mounted directly on mobile mining equipment.

Power Generation & Utilities: Substation automation systems, turbine control units, and grid protection relays require deterministic Ethernet communication with sub-millisecond latency. The PMC-GBIT-DT2BP integrates into IEC 61850-compliant substation automation platforms, supporting GOOSE messaging and sampled values transmission between intelligent electronic devices (IEDs) and bay controllers.

Water & Wastewater Treatment: Municipal water treatment plants and industrial effluent systems rely on continuous PLC-to-SCADA communication for dosing control, pump management, and alarm annunciation. The PMC-GBIT-DT2BP’s extended temperature tolerance and humidity resistance make it suitable for installation in outdoor or semi-outdoor control kiosks where condensation and temperature cycling are routine.

Metallurgy & Heavy Industry: Steel rolling mills, aluminum smelters, and cement plants generate intense electromagnetic noise from large induction furnaces and high-current bus systems. The PMC-GBIT-DT2BP’s hardware EMI suppression ensures that Ethernet frames are transmitted without corruption, maintaining the integrity of process data flowing between distributed I/O, motion controllers, and MES systems.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund after fault verification. Warranty claims are processed within 5 business days of receiving the returned unit. Contact [email protected] to initiate a claim.

Q2: How is each unit tested before shipment?
Every PMC-GBIT-DT2BP unit undergoes functional verification prior to dispatch, including power-on self-test (POST), port link-up confirmation on both GbE interfaces, and PCI bus enumeration testing. Refurbished units additionally undergo extended burn-in testing to screen for latent defects. A test report is available upon request for critical infrastructure procurement.

Q3: Is the PMC-GBIT-DT2BP compatible with my existing VME or CompactPCI chassis?
The PMC-GBIT-DT2BP conforms to the IEEE P1386.1 PMC standard and is mechanically and electrically compatible with any PMC expansion slot on compliant SBCs and carrier cards. It has been verified in VMEbus and CompactPCI environments from major vendors including Emerson, Radstone, Curtiss-Wright, and Kontron. If you have a specific chassis or SBC model, contact our technical team for compatibility confirmation before ordering.

Q4: Can you guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains a dedicated inventory of legacy and current-generation industrial communication modules, including the PMC-GBIT-DT2BP, to support long-term spare parts programs for critical infrastructure operators. We source from verified supply chains and can provide multi-unit blanket orders with staggered delivery schedules. For MRO (Maintenance, Repair & Operations) procurement inquiries, contact us directly to discuss volume pricing and reserved stock arrangements.
