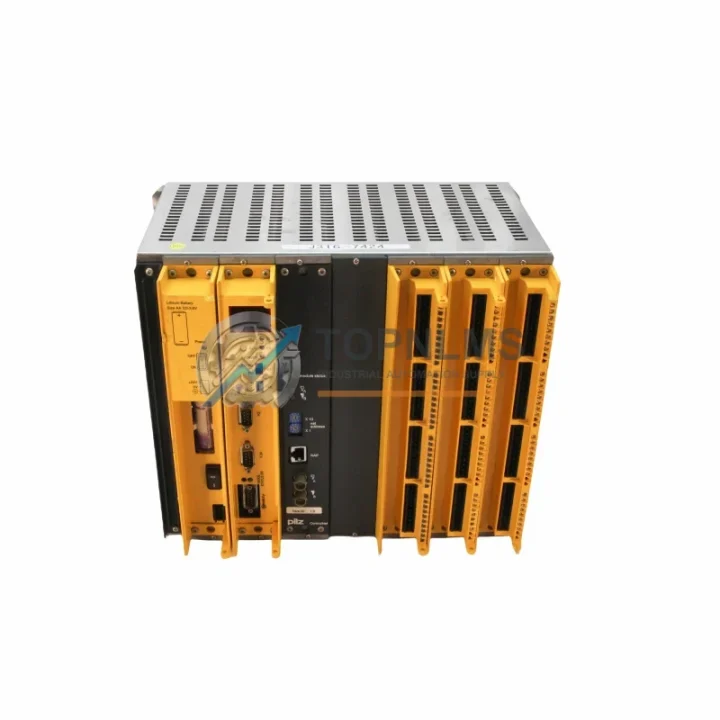

Pilz PSS1 BMP 5/2GRUNDTRAGER 839-034095-001 Replacement

Product Overview

Pilz PSS1 BMP 5/2GRUNDTRAGER 839-034095-001 Replacement: Seamless Transition & Legacy System Upgrade

The Pilz PSS1 BMP 5/2GRUNDTRAGER RGH22 X50F00 (Part No. 839-034095-001 / 839-034098-001) is the foundational base module of the Pilz PSS1 Safety PLC platform — a system widely deployed across automotive assembly lines, press safety circuits, robotic workcells, and process plant emergency shutdown (ESD) systems throughout Europe and Asia. As Pilz progressively transitions its installed base toward the PSSuniversal 2 and PSS 4000 architectures, many end users are now facing the challenge of sourcing direct replacements or planning a structured migration away from the PSS1 rack-based platform.

TOPNLMS maintains verified stock of the PSS1 BMP 5/2GRUNDTRAGER base module, fully tested and ready for immediate dispatch. Whether your requirement is a like-for-like emergency replacement to restore a stopped production line, or a planned retrofit that bridges your existing PSS1 infrastructure toward a modern safety architecture, this listing provides the procurement assurance your engineering and maintenance teams need.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PSS1 base module replacement rarely involves a single component in isolation. In practice, maintenance engineers and system integrators working on PSS1 platforms typically address several interdependent components during the same service window to minimize repeat downtime. When replacing the BMP 5/2GRUNDTRAGER base module, the following components are commonly evaluated in parallel:

The PSS1 CPU module (such as the PSS CPU 0702 DP or PSS CPU 0702 ETH) sits directly in the base rack and must be confirmed compatible with the replacement base module revision. If the CPU module is also approaching end-of-life, sourcing it alongside the base module eliminates a second unplanned outage. Similarly, the PSS SB 0 24VDC power supply module that feeds the rack should be inspected — capacitor aging in legacy power supplies is a common root cause of intermittent rack faults that are often misdiagnosed as base module failures.

On the I/O side, PSS1 digital input modules (e.g., PSS DI 8 24VDC) and PSS1 digital output modules (e.g., PSS DO 4 24VDC) plug directly into the base rack slots. If any I/O module shows diagnostic faults or has accumulated high operating hours, replacing it during the same intervention is cost-effective. For sites using analog process signals, the PSS AI 4 module for 4–20 mA inputs is another common companion replacement.

ControlNet communication continuity is critical in PSS1 installations. The PSS1 ControlNet communication module (CNB/A or equivalent) manages the safety network topology. If the network has experienced repeated CRC errors or node dropouts, the communication module should be tested alongside the base module swap. In some retrofit scenarios, engineers opt to migrate the ControlNet segment to PROFIBUS DP or EtherNet/IP using a gateway module, preserving the existing PSS1 I/O while modernizing the network layer.

For sites planning a longer-term migration toward the Pilz PSSuniversal 2 platform, the BMP 5/2GRUNDTRAGER replacement can serve as a bridge measure — maintaining production continuity while the new PSSuniversal 2 rack, CPU, and I/O modules are commissioned in parallel on a shadow system. The PSS 4000 safety controller is the recommended long-term target architecture for new installations, but the PSS1 platform remains fully supportable with genuine spare parts available through TOPNLMS.

Programming cable and diagnostic tools — specifically the Pilz PSSwin programming interface cable and associated USB-to-serial adapter — should be verified functional before any base module swap, as firmware upload capability is essential if the replacement module ships with a different firmware revision than the installed unit.

Retrofit Guidance FAQ

Q: Do I need to re-wire the I/O terminals when replacing the BMP 5/2GRUNDTRAGER?
A: No. The base module replacement is a rack-level swap. All I/O terminal blocks and field wiring connected to the I/O modules remain undisturbed. Only the base module itself is removed and replaced.

Q: Will my existing PSS1 safety program need to be re-validated after a like-for-like base module swap?
A: For a direct part-number replacement (839-034095-001 to 839-034095-001), the safety program logic does not change and re-validation of the safety function is typically not required. However, your site’s functional safety management procedure and the applicable machinery directive requirements should be consulted. TOPNLMS recommends confirming firmware revision compatibility before installation.

Q: Is the ControlNet network configuration affected by the base module replacement?
A: The ControlNet node address and network parameters are stored in the CPU module, not the base module. A like-for-like base module swap does not alter the ControlNet configuration. Network re-commissioning is not required.

Q: What is the physical installation space requirement?
A: The PSS1 BMP 5/2GRUNDTRAGER uses the standard PSS1 rack footprint. No control cabinet modification, additional DIN rail space, or panel cutout changes are required for a direct replacement.

Q: Can this module be used as a spare/standby unit?
A: Yes. TOPNLMS recommends holding at least one tested spare base module on-site for critical PSS1 installations. Each unit shipped by TOPNLMS undergoes functional verification testing prior to dispatch.

Q: What if my installed unit has a different sub-revision (839-034098-001)?
A: The 839-034095-001 and 839-034098-001 are functionally equivalent variants of the same base module. TOPNLMS can advise on cross-compatibility based on your installed firmware version — contact us with your CPU module part number and firmware revision for confirmation.

Warranty Assurance

Every Pilz PSS1 BMP 5/2GRUNDTRAGER 839-034095-001 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our warranty program is designed specifically for industrial control system components where unplanned downtime carries significant operational and financial consequences.

Pre-shipment testing: Each unit undergoes functional verification before dispatch. Power-on, communication interface, and rack slot integrity checks are performed. Units that do not pass testing are not shipped.

DOA (Dead on Arrival) policy: If a unit is found non-functional upon receipt, TOPNLMS will arrange priority replacement shipment at no additional cost. DOA claims must be raised within 7 days of delivery with photographic evidence of the unit condition and packaging.

In-warranty failure: Should a unit fail within the 12-month warranty period under normal operating conditions, TOPNLMS will provide a replacement unit. Return shipping instructions and RMA authorization will be issued within 1 business day of the warranty claim submission.

After-sales technical support: Our engineering team is available to assist with installation queries, firmware compatibility questions, and retrofit planning. Contact us at [email protected] or +86 18359293191.

Shipping: Standard dispatch from Xiamen within 1–3 business days of order confirmation. Express international freight options (DHL, FedEx, UPS) available for urgent requirements. Export documentation, commercial invoice, and packing list provided for all international shipments.
