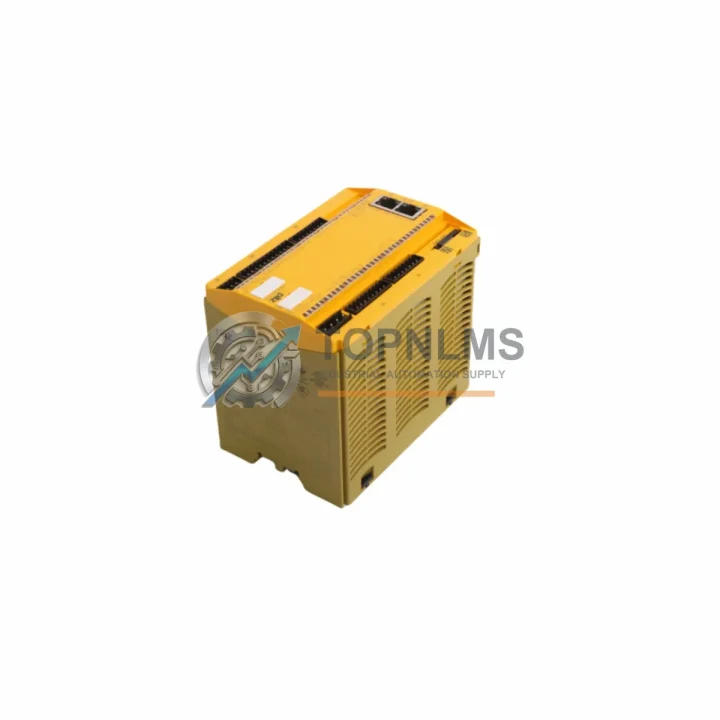

PILZ 773103 PNOZ m1p ETH Ruggedized Safety Controller: Industrial Resilience for Harsh Environments

The PILZ 773103 PNOZ m1p ETH is the Ethernet-enabled base unit of the PNOZmulti 2 configurable safety controller family — engineered to deliver uncompromising safety performance in the most demanding industrial environments. Whether deployed in high-temperature foundries, dust-laden mining galleries, vibration-intensive press lines, or EMI-saturated power substations, this unit maintains deterministic safety response times and certified functional safety integrity across its full operational lifecycle.

Designed to IEC 62061 and EN ISO 13849-1 standards, the PNOZ m1p ETH achieves up to SIL 3 / PLe / Category 4 — the highest safety integrity levels recognized for machinery and process safety applications. Its onboard Ethernet interface supports seamless integration with plant-level SCADA systems, safety PLCs, and distributed control architectures, enabling real-time diagnostics, remote parameterization, and transparent safety status monitoring without interrupting production.

Rugged Specifications Table

Comprehensive Protection Solutions

The PILZ 773103 PNOZ m1p ETH is rarely deployed in isolation — its true value emerges when integrated into a layered safety and control architecture. In a typical safety-critical control cabinet, the PNOZ m1p ETH base unit works in concert with PNOZ m B0 and PNOZ m B1 expansion modules to extend digital I/O capacity for emergency-stop circuits, light curtain monitoring, and two-hand control interlocks. For applications requiring analog safety monitoring — such as speed, pressure, or temperature supervision — the PNOZ m B4 analog input module pairs directly with the base unit over the internal PNOZmulti 2 backplane bus.

On the power supply side, a PILZ PSSu P PLC or a dedicated 24 V DC industrial power supply with redundant output ensures the PNOZ m1p ETH receives clean, stable power even during grid fluctuations common in heavy industrial facilities. Upstream, a PILZ PIT m3p safety key selector or a PNOZ s5 standalone safety relay can serve as a hardwired backup interlock layer, providing defense-in-depth against single-point failures.

For fieldbus-connected architectures, the Ethernet port on the 773103 integrates directly with PROFINET IO controllers or Modbus TCP masters running on Siemens S7-1500 safety PLCs or Rockwell ControlLogix safety processors, enabling cross-vendor safety data exchange. Terminal modules such as Phoenix Contact PTFIX or Weidmüller WDU 2.5 terminal blocks are commonly used within the same control cabinet to organize field wiring cleanly and reduce installation errors. Communication integrity is further protected by managed industrial Ethernet switches with port-level diagnostics, ensuring the safety network remains isolated from standard plant IT traffic.

Application in Critical Infrastructure

The PILZ 773103 PNOZ m1p ETH has established a proven track record across the most demanding sectors of critical infrastructure:

Oil & Gas: In upstream wellhead control panels and midstream compressor stations, the PNOZ m1p ETH monitors emergency shutdown (ESD) valve positions, flame detector inputs, and gas detection relay outputs. Its SIL 3 rating satisfies IEC 61511 functional safety requirements for process safety instrumented systems, making it a qualified component for Safety Instrumented Functions (SIFs) in hazardous area control rooms.

Mining & Mineral Processing: Continuous mining operations subject control equipment to extreme vibration, coal dust ingress, and wide temperature swings. Installed within sealed, climate-controlled control cabinets, the PNOZ m1p ETH supervises conveyor belt pull-cord circuits, crusher guard interlocks, and hoist overtravel limits — maintaining SIL 2/3 integrity even under sustained mechanical stress.

Power Generation & Utilities: In thermal power plants and hydroelectric facilities, the unit integrates with turbine control systems to monitor overspeed protection relays, generator protection circuits, and transformer differential protection inputs. Its EMC immunity to EN 61000-6-2 ensures reliable operation in environments saturated with high-frequency switching noise from large power converters and variable frequency drives (VFDs).

Water & Wastewater Treatment: Municipal water treatment plants rely on the PNOZ m1p ETH to supervise pump station safety interlocks, chemical dosing system guards, and UV disinfection chamber access controls. The unit’s Ethernet connectivity enables centralized SCADA monitoring of distributed pump stations across a city-wide network.

Metallurgy & Steel Production: In electric arc furnace (EAF) control systems and rolling mill safety circuits, the PNOZ m1p ETH withstands radiated EMI levels that would compromise standard PLCs, while its wide operating temperature range accommodates the thermal radiation inherent to hot-metal processing environments.
