PHOENIX CONTACT UK2.5B Ruggedized Terminal Block for Harsh Environments

Product Overview

PHOENIX CONTACT UK2.5B Ruggedized Terminal Block for Harsh Environments

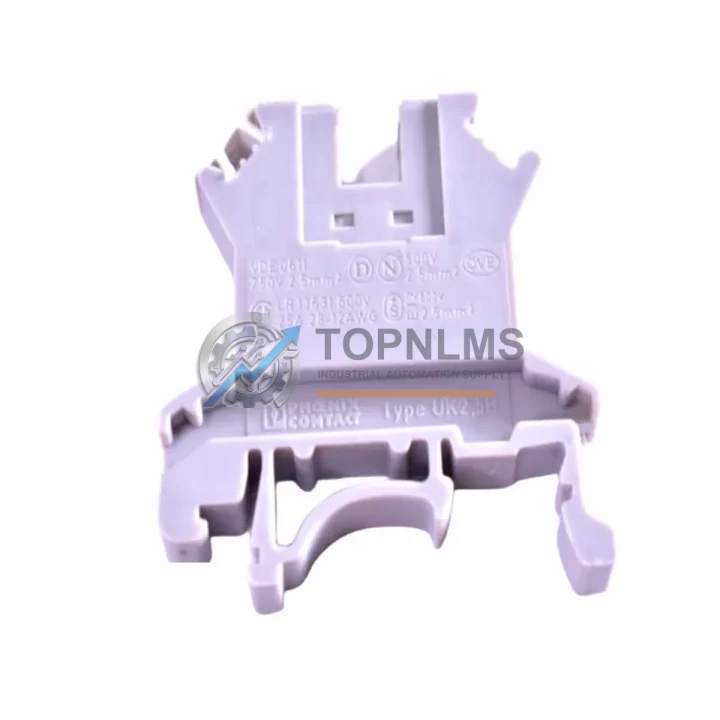

The PHOENIX CONTACT UK2.5B is a high-performance, feed-through terminal block engineered for continuous, reliable operation in the most demanding industrial environments. Rated at 800V / 24A and built to IEC 60947-7-1 standards, the UK2.5B delivers exceptional electrical integrity and mechanical durability across a wide range of critical infrastructure applications — from oil and gas processing facilities to high-voltage power distribution panels, mining operations, water treatment plants, and heavy metallurgical production lines.

Designed as part of PHOENIX CONTACT’s proven UK Series modular terminal block system, the UK2.5B integrates seamlessly into DIN-rail-mounted control cabinets alongside companion components such as the UK 5 B (5 mm², 800V/32A), UK 10 B (10 mm², 800V/57A), and USLKG 2.5 grounding terminal blocks. This family-level compatibility allows engineers to build scalable, standardized wiring architectures without compromising on safety or signal integrity.

In harsh-environment deployments — where ambient temperatures fluctuate between -50°C and +120°C, where vibration from heavy rotating machinery is constant, and where airborne particulates, moisture ingress, and electromagnetic interference (EMI) are persistent threats — the UK2.5B’s robust PA 66 insulation housing and silver-plated contact surfaces maintain low contact resistance and prevent oxidation-induced failures. Its screw-clamp connection technology ensures that conductors remain firmly secured even under sustained mechanical vibration, a critical requirement in compressor stations, turbine control panels, and conveyor drive systems.

Within a typical PLC or DCS control cabinet, the UK2.5B serves as the primary field-wiring interface between field instruments and the controller backplane. It is routinely deployed alongside PHOENIX CONTACT TRIO-PS/1AC/24DC/10 industrial power supplies, IB IL 24 DO 16 Inline I/O modules, FL SWITCH 1008 industrial Ethernet switches, and PSR-SCP-24DC/ESD/4X1/30 safety relay modules. This system-level integration ensures that every signal path — from field sensor to PLC input card — is protected, traceable, and maintainable.

For applications requiring intrinsic safety or ATEX-compliant wiring in Zone 1 or Zone 2 hazardous areas, the UK2.5B can be paired with PHOENIX CONTACT MTK-URTK/S test disconnect terminal blocks and P-BSK 8 end brackets to form fully compliant, labeled terminal groups. This approach is widely adopted in offshore platform junction boxes, chemical plant marshalling cabinets, and pharmaceutical cleanroom control panels where regulatory compliance and auditability are non-negotiable.

The UK2.5B’s 5.2 mm pitch and universal marker slot accept ZB 5 snap-in markers and KMK 3 cable markers, enabling clear, permanent circuit identification — a maintenance-critical feature in 24/7 continuous production environments where rapid fault isolation directly impacts uptime and safety. Bridging accessories such as the FBS 2-5 jumper bridge allow multi-pole potential distribution without additional wiring, reducing installation time and the risk of wiring errors in large terminal groups.

Rugged Specifications Table

Comprehensive Protection Solutions

The UK2.5B does not operate in isolation — it is a foundational component within a broader, layered protection and control architecture. In a typical heavy-industry control cabinet, it works in concert with PHOENIX CONTACT QUINT-PS/1AC/24DC/20 primary-switched power supplies that deliver clean, regulated 24VDC to the entire terminal group, ensuring that voltage transients from motor starts or load switching do not propagate into sensitive PLC I/O circuits. Surge protection devices such as the PHOENIX CONTACT VAL-MS 230 ST are mounted upstream to clamp lightning-induced overvoltages before they reach the terminal strip.

For process safety applications, the UK2.5B terminal groups are frequently installed adjacent to PSR-PC50C-2NO-1DO-24DC/SC safety relay modules and PACT RCP-4000A-1A0-D0 current transformers, forming a complete safety loop from field device to safety PLC. In distributed control architectures, PHOENIX CONTACT AXL F BK ETH Axioline F bus couplers and IB IL 24 DI 16 digital input modules connect directly to the UK2.5B terminal rows, providing clean, noise-free signal paths from field sensors to the DCS controller.

Communication integrity is maintained through proper grounding practices enabled by USLKG 2.5 grounding terminal blocks installed at regular intervals within the UK2.5B terminal group, providing a low-impedance path to the cabinet’s PE busbar. This is particularly critical in variable frequency drive (VFD) panels, where high-frequency switching noise from IGBT inverters can induce common-mode interference on signal cables if grounding is inadequate.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the UK2.5B is deployed in wellhead control panels, pipeline SCADA marshalling cabinets, and compressor station junction boxes. Its ability to maintain rated performance at -50°C makes it suitable for Arctic-region installations where conventional terminal blocks fail due to insulation embrittlement. In coal and metal mining operations, the UK2.5B withstands the constant vibration of conveyor drives, crusher motors, and ventilation fans, maintaining secure conductor terminations without periodic re-torquing.

In power generation and transmission substations, the UK2.5B is used in protection relay panels, metering cabinets, and battery room distribution boards, where its 800V rating provides adequate margin for 690V AC systems. Water and wastewater treatment plants rely on the UK2.5B in pump motor control centers (MCCs) and SCADA remote terminal units (RTUs), where the combination of high humidity, chemical vapors, and continuous operation demands a terminal block with proven long-term reliability. In steel and aluminum smelting facilities, the UK2.5B is specified for furnace control panels and rolling mill drive cabinets, where ambient temperatures regularly exceed 60°C and radiated heat from process equipment is a constant challenge.

Security & Quality FAQ

Q1: What warranty coverage is provided with the PHOENIX CONTACT UK2.5B?
All UK2.5B units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects, contact failure, and insulation integrity. Warranty claims are processed within 5 business days, with replacement units dispatched from our Xiamen warehouse. We maintain buffer stock specifically for warranty replacements to ensure zero downtime for our customers.

Q2: How is each unit tested before shipment?
Every UK2.5B undergoes a pre-shipment inspection protocol that includes visual inspection for housing cracks or contact deformation, continuity testing across the screw-clamp contact, insulation resistance verification at 1000VDC (minimum 100MΩ), and dimensional verification of the DIN rail mounting slot. Units that fail any inspection criterion are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the UK2.5B compatible with existing PHOENIX CONTACT UK Series installations?
Yes. The UK2.5B is fully backward-compatible with all PHOENIX CONTACT UK Series accessories, including ZB 5 snap-in markers, FBS 2-5 jumper bridges, D-UK 2.5 BU partition plates, and P-BSK 8 end brackets. It mounts on standard DIN 35 rail per EN 60715 and can be installed directly alongside existing UK 2.5, UK 5 B, and USLKG 2.5 terminal blocks without modification to the rail or end bracket configuration.

Q4: Can TOPNLMS support long-term or repeat procurement for maintenance and MRO programs?
Yes. TOPNLMS maintains dedicated inventory of PHOENIX CONTACT UK Series terminal blocks to support MRO (Maintenance, Repair & Operations) programs for industrial facilities with ongoing replacement requirements. We offer blanket order arrangements, priority allocation for critical spares, and technical consultation for terminal block selection across the full UK Series range. Contact our team at [email protected] or +86 18359293191 to discuss your facility’s specific requirements.
