PFEIFFER VACUUM PM 011 515-T Original Industrial Spare HiPace Compatible

Product Overview

PFEIFFER VACUUM PM 011 515-T Original Industrial Spare HiPace Compatible — System Stability for Turbomolecular Pump Maintenance

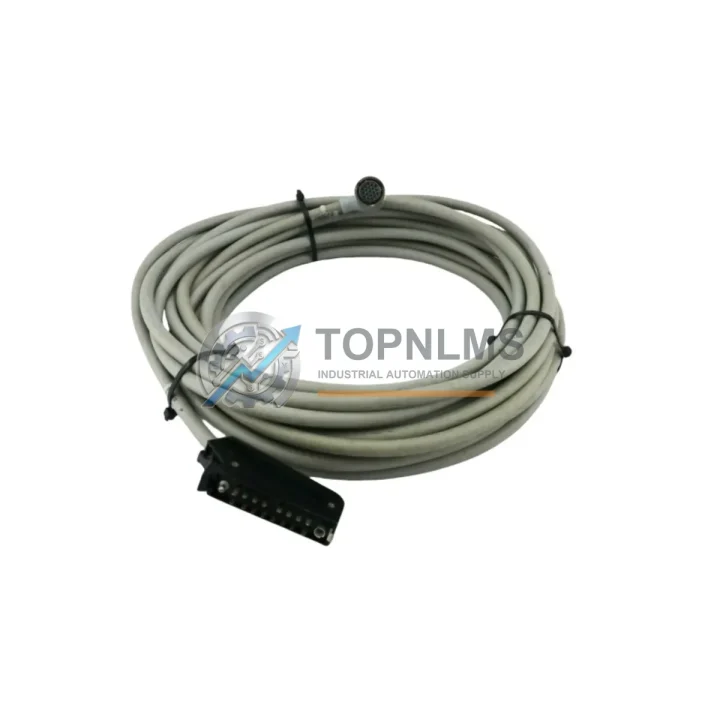

In high-vacuum industrial environments, the integrity of every interconnecting component determines whether a process line runs at full efficiency or faces unplanned downtime. The PFEIFFER VACUUM PM 011 515-T (Part Numbers: 0040-95475 / 0190-35278) is a 15-metre turbomolecular pump drive cable engineered specifically for the HiPace and TMH series turbomolecular pumps. As an original spare part sourced directly from the PFEIFFER VACUUM supply chain, this cable is the correct replacement for aging or damaged drive cables in semiconductor fabrication, analytical instrumentation, coating systems, and research vacuum chambers.

Turbomolecular pumps operate at rotor speeds exceeding 60,000 RPM, and the drive cable is the critical signal and power link between the pump body and its electronic drive unit (EDU). A degraded or non-original cable introduces impedance mismatches, communication errors, and in worst cases, uncontrolled rotor deceleration — all of which translate directly into costly process interruptions. Stocking the PM 011 515-T as a certified spare eliminates this risk and ensures your maintenance team can execute a verified replacement within minutes rather than waiting days for emergency procurement.

Critical Technical Specs

Preventive Maintenance Strategy

A turbomolecular pump is rarely a standalone component — it operates as part of a tightly integrated vacuum system, and the drive cable is just one element in a chain of components that must all be serviceable to guarantee uptime. When scheduling a maintenance window for HiPace or TMH series pumps, experienced maintenance engineers treat the cable replacement as the trigger for a broader system inspection.

Begin with the Electronic Drive Unit (EDU / TC 110 or DCU 110) — verify firmware version, check for stored fault codes, and confirm that the drive unit’s internal fan is operating correctly. A failing EDU will destroy a new cable within weeks if left unaddressed. Next, inspect the backing pump and its connecting KF or ISO-K flanged tubing; a leaking foreline raises the turbopump’s inlet pressure and forces the rotor to work harder, accelerating bearing wear and increasing thermal stress on the drive cable’s connectors.

The vent valve (VM 010 or VM 016 series) should be tested for proper actuation — a stuck-open vent valve during pump-down cycles causes rotor over-speed events that stress the drive electronics and cable. While the cabinet is open, check the power supply module feeding the EDU for output voltage stability; ripple or sag on the 24 VDC rail is a common root cause of intermittent drive cable communication faults that are often misdiagnosed as cable failures.

For systems using PFEIFFER VACUUM DCU 002 or DCU 110 display and control units, verify that the RS-485 or USB communication cable between the DCU and EDU is intact and that connector pins show no corrosion — these signal cables are frequently overlooked during routine service. In multi-pump installations, also inspect the PM 061 260 or PM 061 261 splitter cables used for parallel pump monitoring; a degraded splitter can introduce ground loops that manifest as erratic speed readings across all connected pumps.

Pressure measurement components deserve equal attention: the PKR 251 or TPR 280 full-range gauges mounted on the high-vacuum side should be zero-checked and calibrated if the system has been vented more than three times since the last service. Finally, review the water cooling connections (where applicable on larger HiPace 700–2300 models) for scale buildup or flow restriction — inadequate cooling is the leading cause of premature bearing failure and elevated cable connector temperatures.

Stocking the PM 011 515-T alongside these complementary components as a coordinated spare kit transforms a reactive maintenance posture into a proactive one, reducing mean time to repair (MTTR) from hours to under 30 minutes.

Strategic Replacement Solutions

Many facilities operating PFEIFFER VACUUM turbomolecular pumps installed in the 2005–2015 era face a common challenge: the original drive cables have reached end-of-life due to jacket embrittlement, connector wear, or simple age-related insulation degradation, yet the pumps themselves remain mechanically sound and fully capable of continued service. Replacing the pump outright to solve a cable problem is economically unjustifiable — the PM 011 515-T provides the correct path forward.

Because this is an original OEM part, it carries the full PFEIFFER VACUUM connector pinout, shielding specification, and cable impedance profile. There is no need to re-parameterize the EDU, update firmware, or perform any system reconfiguration after installation. The replacement is a direct swap: disconnect the old cable at both the pump body and the EDU, route the new 15M cable through the existing cable management tray, and reconnect. Total installation time for a trained technician is typically under 20 minutes.

For facilities managing multiple vacuum systems across different production lines, standardizing on the PM 011 515-T as the site-wide spare for all HiPace and TMH installations simplifies inventory management, reduces the number of unique part numbers held in the maintenance storeroom, and ensures that any technician on any shift can execute the replacement without consulting documentation. This standardization approach is particularly valuable in semiconductor fabs and pharmaceutical manufacturing environments where maintenance windows are tightly scheduled and cross-training is essential.

Purchasing in quantities of two or more is recommended for facilities with three or more turbomolecular pumps — the cost of holding a second cable in stock is negligible compared to the cost of a single unplanned pump-down event on a production line.

Support FAQ

Q1: Is the PM 011 515-T compatible with all HiPace and TMH series turbomolecular pumps?
The PM 011 515-T is designed for the HiPace and TMH series and covers the majority of models in these families. Compatibility depends on the specific pump model and its associated EDU variant. Please provide your pump model number (e.g., HiPace 80, TMH 071) when ordering so our team can confirm fitment before shipment.

Q2: What pre-shipment testing is performed on this cable?
Each PM 011 515-T unit undergoes continuity testing, insulation resistance verification, and connector seating inspection prior to packaging. Units are shipped in original or equivalent anti-static protective packaging to prevent connector damage in transit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, connector failures, and insulation faults under normal operating conditions. It does not cover damage resulting from incorrect installation, chemical exposure, or use outside the specified operating temperature range. Warranty claims are processed within 5 business days of receiving the returned unit.

Q4: How should I manage spare cable inventory for a multi-pump facility?
For facilities with 3–10 turbomolecular pumps, we recommend holding a minimum of one PM 011 515-T per five pumps, with a floor of two units regardless of fleet size. Cables should be stored in a dry, temperature-controlled environment (15–25°C) away from UV exposure and chemical vapors. Rotate stock on a first-in, first-out basis and inspect stored cables annually for jacket condition.
