Parker WIN5-R53/A/K006 Replacement Upgrade for WIN5

Product Overview

Parker WIN5-R53/A/K006 Replacement Upgrade for WIN5 Series: Smooth Transition from Legacy Servo Systems

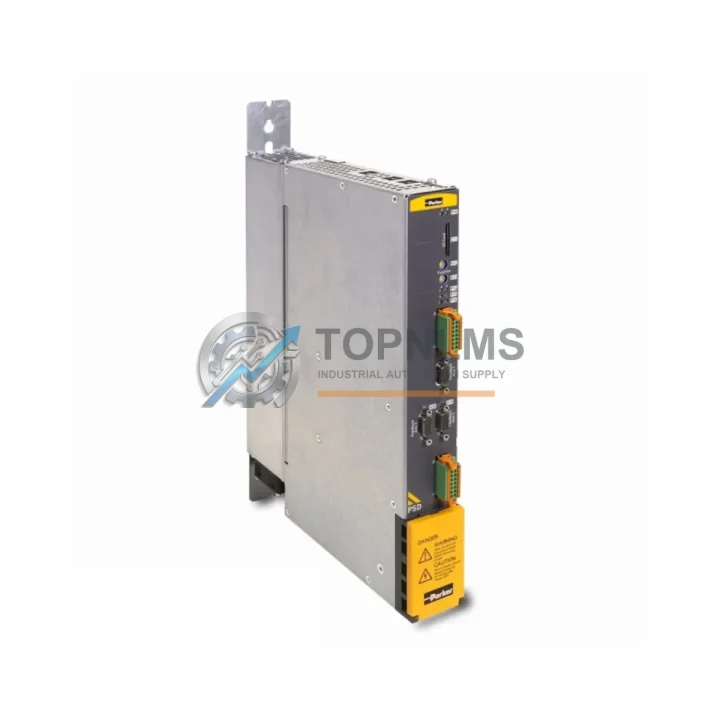

The Parker WIN5-R53/A/K006 is a high-performance AC servo drive from Parker Hannifin’s WIN5 Series, designed for precision motion control in demanding industrial automation environments. As legacy servo systems age and original equipment manufacturers discontinue older drive models, facilities running Parker WIN5 Series servo systems face increasing pressure to source reliable replacement units that maintain full compatibility with existing wiring, motor feedback interfaces, communication protocols, and control cabinet layouts. The WIN5-R53/A/K006 addresses this need directly — offering a verified drop-in upgrade path that minimizes engineering rework, reduces commissioning time, and protects your existing capital investment in Parker servo infrastructure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful WIN5-R53/A/K006 retrofit rarely involves the servo drive alone. In most Parker WIN5 Series installations, the drive operates as part of a tightly integrated motion control architecture. During the upgrade process, engineers typically review and may also replace or verify the Parker ACR motion controller or compatible PLC — such as a Rockwell Automation ControlLogix or CompactLogix controller — that issues position and velocity commands to the WIN5 drive over CANopen or RS-232. The motor feedback cable and encoder connector assembly must be inspected to confirm pin-out compatibility with the WIN5-R53/A/K006’s feedback port, particularly when migrating from older resolver-based Parker servo motors to newer incremental or absolute encoder configurations.

Power distribution within the control cabinet should also be assessed. The WIN5-R53/A/K006 shares the same AC input voltage range as earlier WIN5 variants, meaning existing circuit breakers, EMC line filters, and AC power terminals typically require no modification. However, if the cabinet also houses a Parker GV6 or Compax3 drive from a parallel axis, engineers should verify that the shared DC bus or regenerative braking resistor — if present — remains within rated capacity after the swap.

On the communication side, facilities using a Parker 6K Series motion controller or a third-party HMI panel (such as a Weintek or Siemens TP series touch panel) connected via RS-485 Modbus will find that the WIN5-R53/A/K006 maintains backward-compatible register mapping, reducing the need for PLC program modifications. Where CANopen node addressing is used, only the node ID and baud rate parameters need to be confirmed during commissioning — the rest of the motion program typically transfers without rewriting.

For facilities performing a broader system modernization, the WIN5-R53/A/K006 can be integrated alongside Parker SSD or Eurotherm DC drive systems on the same control network, and it is compatible with standard 24 VDC I/O terminal blocks and signal isolators used in mixed-vendor control cabinets. If the application involves coordinated multi-axis motion, a Parker ACR9000 or equivalent multi-axis controller can manage the WIN5-R53/A/K006 as a networked servo node without requiring a dedicated drive-level programming interface.

Retrofit Guidance FAQ

Q: Can I reuse existing motor wiring when replacing with WIN5-R53/A/K006?
A: In most WIN5 Series installations, the motor power cable and feedback cable connectors are compatible. Verify the encoder connector pin-out against the WIN5-R53/A/K006 datasheet before reconnecting. No re-termination is typically required for standard Parker servo motor cables.

Q: Do I need to modify my PLC program after installing this drive?
A: If your controller communicates via CANopen or RS-485 Modbus, the WIN5-R53/A/K006 uses the same object dictionary and register structure as earlier WIN5 revisions. Minor parameter re-tuning (current loop, velocity loop gains) may be needed, but the motion program logic itself generally does not require rewriting.

Q: Is the physical footprint identical to the unit being replaced?
A: Yes. The WIN5-R53/A/K006 maintains the same panel-mount dimensions and DIN rail compatibility as the WIN5 Series standard form factor, so no control cabinet modifications or additional mounting hardware are required.

Q: What communication protocols does this drive support?
A: The WIN5-R53/A/K006 supports CANopen, RS-232, and RS-485 — the same protocol stack used across the WIN5 Series platform. This ensures compatibility with Parker motion controllers, third-party PLCs, and HMI systems already deployed in your facility.

Q: How do I handle the transition from a discontinued model with no documentation?
A: TOPNLMS provides pre-shipment functional testing documentation for each WIN5-R53/A/K006 unit. Our technical team can assist with parameter migration guidance based on your legacy drive’s configuration backup or nameplate data.

Warranty Assurance

Every Parker WIN5-R53/A/K006 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional pre-shipment inspection to verify power-on operation, communication interface integrity, and I/O response. Units are packed in anti-static, shock-resistant packaging suitable for international air and sea freight.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement dispatch or repair support with a target response time of 1–3 business days. Our after-sales team is reachable via email and phone to assist with installation queries, parameter configuration, and compatibility verification — reducing your reliance on OEM support channels for discontinued or hard-to-source Parker WIN5 Series components.

For bulk procurement, project-based orders, or urgent replacement requirements, contact our sales team directly to confirm stock availability, lead time, and freight options from our Xiamen warehouse.
