Parker TBF60/5R Replacement for Compax Series

Product Overview

Parker TBF60/5R Replacement for Compax Series: Smooth Transition & Legacy System Compatibility

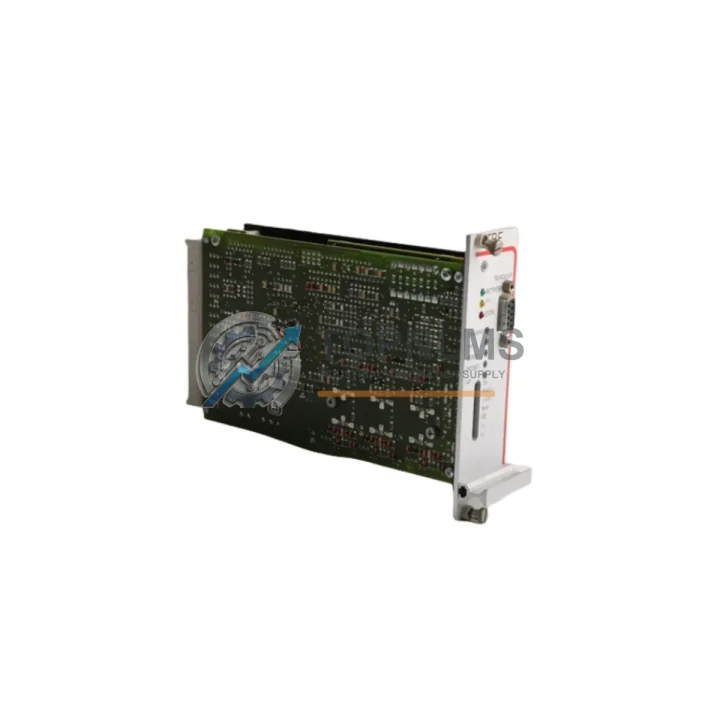

The Parker TBF60/5R is a 5-axis servo controller module from the Parker Hannifin Compax series, widely deployed in precision motion control applications across CNC machining centers, packaging lines, semiconductor handling equipment, and multi-axis robotic cells. As the TBF60/5R approaches end-of-life or becomes increasingly difficult to source through standard distribution channels, plant engineers and procurement teams face mounting pressure to identify a reliable, drop-in replacement that preserves existing wiring infrastructure, retains compatibility with legacy programming environments, and minimizes unplanned downtime during the transition.

TOPNLMS supplies the Parker TBF60/5R as a direct replacement and upgrade solution for facilities currently operating Compax-series motion control systems. Each unit is sourced from verified supply chains, subjected to pre-shipment functional verification, and backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. Our inventory is maintained in Xiamen, China, enabling rapid dispatch to customers across Asia-Pacific, Europe, and the Americas.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Compax-based motion system to the TBF60/5R rarely involves swapping a single module in isolation. In practice, the upgrade process touches multiple layers of the control architecture. During pre-migration audits conducted at customer sites, our technical team consistently identifies the following components as critical to a smooth transition.

The Parker Compax3 servo drive is the most common companion unit to the TBF60/5R in multi-axis installations. Where existing Compax3 drives remain serviceable, the TBF60/5R can be integrated without replacing the drive layer, preserving the existing motor cabling and encoder wiring. In cases where the Compax3 drive is also approaching end-of-life, coordinated replacement of both the controller module and the drive ensures firmware version alignment and eliminates inter-module communication errors that frequently arise from mixed-revision hardware.

The Parker ACR9000 motion controller is frequently found in the same control cabinet as TBF60/5R installations, particularly in applications requiring centralized multi-axis coordination. When migrating from an older ACR-series controller, the TBF60/5R’s CANopen interface allows it to be integrated into the existing network topology without rewiring the field bus segment. Engineers should verify node addressing and baud rate settings during commissioning to avoid conflicts with other CANopen devices on the same segment.

Terminal blocks and Parker Compax series I/O expansion modules are another area requiring attention. The TBF60/5R interfaces with the rack’s I/O backplane through the standard Compax connector system. Where additional digital or analog I/O capacity is needed — for example, when integrating new safety interlocks or position sensors — supplementary I/O modules can be added to the same rack without modifying the TBF60/5R’s configuration. This is particularly relevant in retrofit projects where the original machine design did not anticipate the I/O demands of modernized safety standards.

Power supply modules within the Compax rack, such as the Parker PS24 or equivalent 24 VDC logic supply modules, should be inspected and load-tested prior to commissioning the TBF60/5R. Aging capacitors in legacy power supply modules can cause voltage ripple that manifests as intermittent faults in the servo controller, particularly during high-acceleration motion profiles. Replacing the power supply module as part of the TBF60/5R installation is a low-cost measure that significantly reduces the risk of post-commissioning failures.

For facilities that rely on Parker SSD or Eurotherm DC drive systems in adjacent control cabinets, the TBF60/5R’s RS-485 interface can be configured to communicate with these drives using standard Modbus RTU protocol, enabling coordinated speed and torque control across mixed-technology drive systems without requiring a gateway device.

Programming cables — specifically the Parker Compax RS-232 programming cable compatible with the TBF60/5R’s serial port — are required for initial parameter upload and firmware verification. Customers who have lost or damaged their original programming cables should source a replacement before scheduling the commissioning window, as on-site improvisation with generic serial cables frequently results in communication errors due to incorrect handshaking pin assignments.

Where the existing installation includes a Parker or third-party HMI panel communicating with the Compax system via RS-232 or CANopen, the TBF60/5R’s communication parameters must be configured to match the HMI’s expected node address and baud rate. In most cases, this is a software-only change that can be completed within the Parker Motion Planner environment without hardware modification.

Finally, facilities upgrading from discontinued Compax variants should review their signal isolation and surge protection arrangements. Older installations sometimes lack adequate transient voltage suppression on encoder and I/O signal lines. Installing DIN-rail-mounted signal isolators on critical feedback lines before commissioning the TBF60/5R is a best practice that reduces the risk of encoder signal corruption in electrically noisy environments such as those found near large VFDs or welding equipment.

Retrofit Guidance FAQ

Q: Can the TBF60/5R be installed in an existing Compax rack without mechanical modification?
A: Yes. The TBF60/5R uses the standard Compax rack slot form factor and connector pinout. Physical installation requires no drilling, cutting, or bracket fabrication. The module slides into the rack slot and secures with the standard captive screw mechanism.

Q: Will existing motor wiring need to be changed?
A: In most cases, no. The TBF60/5R is pin-compatible with the Compax rack’s motor output connectors. However, customers should verify that motor cable shielding is properly terminated at the rack end, as the TBF60/5R’s EMC performance depends on correct shield grounding. Refer to the Parker Compax wiring guide for shield termination requirements.

Q: Is the TBF60/5R compatible with IEC 61131-3 programs written for earlier Compax modules?
A: The TBF60/5R supports the Parker Motion Planner programming environment and is compatible with IEC 61131-3 structured text and function block programs developed for the Compax platform. Minor parameter adjustments may be required to account for differences in axis scaling or velocity loop tuning between hardware revisions. A full program validation cycle on a test bench is recommended before live commissioning.

Q: What communication protocols does the TBF60/5R support?
A: The TBF60/5R supports RS-232, RS-485 (Modbus RTU), and CANopen. Protocol selection and node addressing are configured via the Parker Motion Planner software. Customers migrating from RS-232-only installations can upgrade to CANopen without hardware changes, enabling integration with modern fieldbus networks.

Q: How much physical space does the TBF60/5R require in the control cabinet?
A: The TBF60/5R occupies a single standard Compax rack slot. No additional clearance beyond the standard Compax rack ventilation requirements is needed. Customers with fully populated racks should verify slot availability before ordering.

Q: What is the recommended procedure for replacing a failed TBF60/5R in a live production environment?
A: Document the existing parameter set using Parker Motion Planner before removing the failed module. Install the replacement TBF60/5R, upload the saved parameter file, verify encoder feedback signals, and perform a low-speed jog test on each axis before returning the machine to production. Total replacement time for an experienced technician is typically 2–4 hours including parameter verification.

Warranty Assurance

Every Parker TBF60/5R supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, component failures, and operational malfunctions arising under normal industrial use conditions as defined in the Parker Compax series technical documentation.

Pre-shipment testing: Each unit undergoes a functional verification process prior to dispatch, including power-on self-test, communication interface verification, and visual inspection for physical damage. Units that do not pass pre-shipment testing are quarantined and not dispatched.

Replacement support: In the event of a warranty claim, TOPNLMS will arrange priority dispatch of a replacement unit upon receipt and inspection of the returned module. Our standard warranty replacement lead time is 3–5 business days from claim approval, subject to stock availability.

After-sales response: Our technical support team is available via email and telephone to assist with installation questions, parameter configuration, and commissioning guidance. Response time for technical inquiries is within 1 business day.

Procurement assurance: TOPNLMS maintains buffer stock of high-demand Compax series components to support urgent replacement requirements. Customers with critical production dependencies are encouraged to contact us to discuss consignment stock arrangements or priority supply agreements.

For procurement inquiries, technical specifications, or warranty claims, contact our team directly.
