Parker HPX15T-XAAA-2 DT-03047-202 Original Industrial Spare CTC HPX Compatible

Product Overview

Parker HPX15T-XAAA-2 DT-03047-202 Original Industrial Spare CTC HPX Compatible: System Stability Through Proven HMI Replacement

In industrial automation environments, the human-machine interface is the critical bridge between operators and control systems. When a Parker HPX15T-XAAA-2 DT-03047-202 HMI panel fails or degrades, production lines halt, troubleshooting becomes guesswork, and every hour of downtime compounds operational losses. Sourcing an original, tested replacement unit — rather than a generic substitute — is the single most effective action a maintenance team can take to restore system stability and operator confidence.

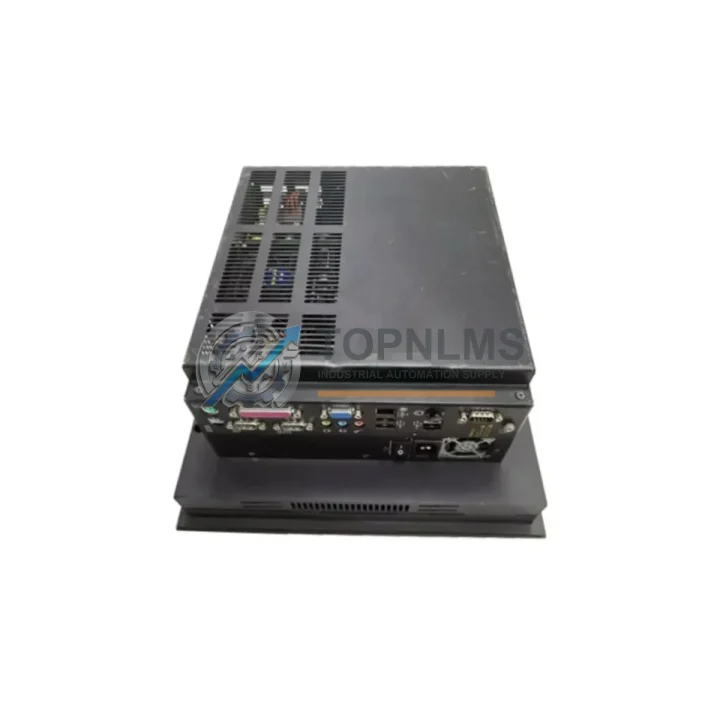

The Parker HPX15T-XAAA-2 DT-03047-202 is a 15-inch CTC HPX Series color touch panel designed for demanding industrial environments. It integrates seamlessly into Parker-based control architectures, supporting the communication protocols, display resolutions, and environmental tolerances that plant engineers specified at commissioning. Replacing it with an original unit eliminates compatibility risk, preserves existing HMI project files, and avoids costly re-engineering of operator screens.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled HMI replacement should never be treated as an isolated event. The HPX15T-XAAA-2 DT-03047-202 sits at the top of an interconnected electrical and communication chain, and a thorough maintenance window is the ideal opportunity to inspect and pre-stock the components most likely to cause the next unplanned outage.

Begin with the power supply feeding the HMI panel. Parker and third-party 24 VDC DIN-rail power supplies in the same control cabinet are subject to the same thermal cycling and load stress as the HMI itself. Inspecting or replacing the panel power supply module during the same maintenance window eliminates a common root cause of HMI brownouts and erratic touchscreen behavior. Similarly, the communication cable connecting the HMI to the PLC or motion controller — typically a shielded RS-232 or RS-485 cable — should be inspected for insulation cracking, connector corrosion, and continuity. A degraded communication cable can cause intermittent screen freezes that are frequently misdiagnosed as HMI hardware failure.

While the control cabinet is open, maintenance teams should verify the condition of the Parker or compatible PLC CPU module driving the HMI. In CTC HPX-based systems, the controller and HMI share a tightly coupled communication architecture; a CPU module with aging firmware or marginal memory can cause display anomalies that appear to originate from the HMI panel. Checking the I/O modules — both digital input modules and analog output modules — connected to the same rack or backplane is equally important, as signal integrity issues in the I/O layer often surface as erratic process values on the HMI screen.

Terminal blocks and DIN-rail mounted relay modules within the same electrical circuit deserve attention during any HMI replacement job. Loose terminal connections cause voltage drops that stress the HMI power input, while failing relay modules can generate electrical noise that corrupts serial communication. Inspecting and torquing all terminal connections, and pre-stocking a set of compatible relay modules, is a low-cost insurance policy against the next service call.

For facilities running older Parker CTC systems, the communication module or gateway card that bridges the HMI network to a supervisory SCADA or DCS layer is a critical single point of failure. Stocking a spare communication module alongside the HPX15T-XAAA-2 DT-03047-202 ensures that a gateway failure does not extend a planned HMI swap into a multi-day outage. Signal isolators on analog input channels feeding the HMI display should also be tested for drift, as aged isolators introduce measurement offsets that undermine operator trust in displayed process values.

Finally, the HMI backlight and touch overlay are wear components with defined service lives. Facilities that operate 24/7 should maintain at least one spare HPX15T-XAAA-2 DT-03047-202 unit in local inventory, alongside spare fuse modules for the control cabinet’s 24 VDC distribution rail. A blown fuse on the HMI supply circuit is a five-minute fix with a spare on hand — and a multi-hour production loss without one.

Strategic Replacement Solutions

The Parker HPX15T-XAAA-2 DT-03047-202 is a direct original replacement for aging CTC HPX Series panels installed in the 2000s and 2010s. Many facilities continue to operate these systems well beyond their original design life because the control logic, operator screens, and process recipes embedded in the HMI project represent years of engineering investment that is expensive to migrate to a newer platform.

Sourcing an original Parker unit — rather than a remanufactured or compatible substitute — preserves full compatibility with existing HMI project files, communication configurations, and operator training. There is no need to remap I/O tags, reconfigure communication parameters, or retrain operators. The replacement unit installs in the existing panel cutout, connects to the existing cable harness, and loads the existing project file without modification.

For facilities managing a fleet of CTC HPX-based machines, a strategic approach is to standardize on a single spare unit that covers multiple machines sharing the same HMI model. The HPX15T-XAAA-2 DT-03047-202 can serve as a rotating spare across multiple production lines, reducing total spare parts inventory cost while maintaining rapid response capability. Pairing this unit with a documented swap procedure — including communication parameter backup, project file archive, and IP address record — reduces mean time to repair to under 30 minutes for a trained technician.

For facilities considering a longer-term migration to a newer HMI platform, maintaining original spare units during the transition period is essential. Migration projects routinely extend beyond their planned timelines, and a single HMI failure during a migration window can force an unplanned cutover that compromises both the old and new systems. Original spare units provide the operational buffer that allows migrations to proceed on schedule rather than under emergency pressure.

Support FAQ

Q1: Is this unit tested before shipment?
Yes. Every Parker HPX15T-XAAA-2 DT-03047-202 unit is powered on and functionally tested prior to shipment. Basic display, touch response, and communication port integrity are verified. A test report is available upon request. All units ship with a 12-month quality warranty covering manufacturing defects and functional failures under normal operating conditions.

Q2: Will this unit load my existing HMI project file without modification?
As an original Parker CTC HPX Series unit, the HPX15T-XAAA-2 DT-03047-202 is fully compatible with project files developed for the same model. Communication parameters, tag databases, and screen layouts transfer without remapping. We recommend backing up your existing project file before any HMI replacement as a standard precaution.

Q3: How many spare units should we stock for a multi-machine facility?
For facilities with 3–10 machines sharing the same HMI model, one rotating spare unit is typically sufficient with a documented swap procedure. For facilities with more than 10 machines, or those operating in remote locations with long lead times, two spare units are recommended to maintain a buffer during the warranty claim or repair cycle of a failed unit.

Q4: What is the lead time and shipping method?
In-stock units ship within 1–3 business days via DHL, FedEx, or UPS Express. Tracking information is provided upon dispatch. For urgent requirements, expedited same-day dispatch is available — contact us directly to confirm stock availability and arrange priority shipment.
