Parker GV6-U12E-NK Replacement/Upgrade for GV6 Series

Product Overview

Parker GV6-U12E-NK Replacement/Upgrade for GV6 Series: Smooth Migration from Legacy Servo Systems

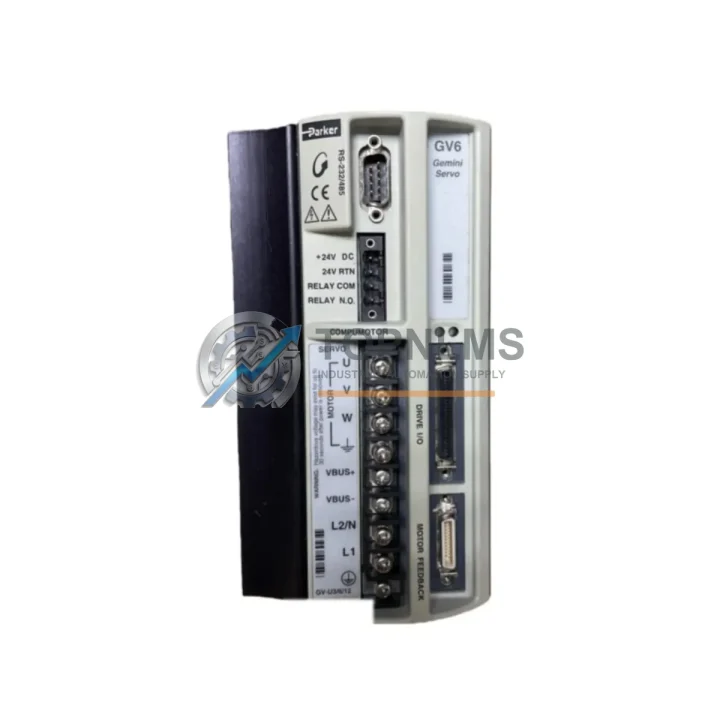

The Parker GV6-U12E-NK is a 12A Digital AC Servo Drive from Parker Hannifin’s GV6 Series, featuring native EtherNet/IP communication for seamless integration into modern industrial control architectures. For facilities running aging Parker GV6, Compax3, or OEM-branded servo platforms, this unit represents the most direct path to restoring motion control capability without redesigning the surrounding control system. Whether you are replacing a failed drive, upgrading from an earlier GV6 variant, or migrating from a discontinued servo amplifier, the GV6-U12E-NK is engineered to slot into your existing mechanical and electrical infrastructure with minimal disruption.

Industrial plants operating Parker GV6-U12E-NK drives typically integrate them within multi-axis servo systems managed by a Parker ACR9000 or ACR7000 motion controller, or via an Allen-Bradley ControlLogix PLC using the EtherNet/IP Add-On Profile (AOP). The drive accepts standard resolver or encoder feedback from Parker servo motors such as the MPP or MPJ series, and its 12A continuous output rating covers a broad range of rotary and linear servo motor applications in packaging, semiconductor handling, and precision assembly lines.

When migrating from an older GV6-U12E (non-EtherNet/IP variant) or from a Parker Compax3 S025V4 drive, engineers frequently find that the GV6-U12E-NK retains the same 37-pin D-sub I/O connector pinout and identical DIN-rail or panel-mount footprint, which eliminates the need to re-terminate control wiring or modify the control cabinet backplane. The 24 VDC logic supply input is unchanged, and the AC power input range (120–240 VAC single-phase or three-phase depending on configuration) matches legacy GV6 hardware, so existing transformer and fusing arrangements remain valid.

EtherNet/IP connectivity on the GV6-U12E-NK replaces the older RS-232/RS-485 serial links used on first-generation GV6 drives. If your existing motion program was written in Parker’s ACR Basic or MotionSuite software communicating over serial, the migration path involves exporting axis parameters, importing them into the EtherNet/IP-compatible ACR firmware, and reassigning the communication node address. No changes to the servo tuning parameters (Kp, Ki, Kd, velocity feedforward) are required, as the GV6-U12E-NK uses the same closed-loop algorithm structure. For sites using a Rockwell Automation ControlLogix or CompactLogix controller, the drive’s EtherNet/IP AOP can be imported directly, and the axis tag structure maps identically to other Logix-compatible servo drives.

Control cabinet space is a common concern during servo drive replacement projects. The GV6-U12E-NK occupies the same physical envelope as the GV6-U12E and GV6-U12E-NI variants, so no additional DIN rail space or ventilation clearance is required. Heat dissipation specifications are equivalent, meaning existing cabinet thermal management—whether forced-air cooling or heat exchanger—remains adequate. If your retrofit involves replacing multiple axes simultaneously, the GV6-U12E-NK can be mounted adjacent to other GV6 Series drives sharing a common DC bus, reducing overall cabinet wiring complexity and improving energy recovery during deceleration.

For multi-axis systems, the GV6-U12E-NK is commonly deployed alongside the Parker GV6-U3E-NK (3A variant) for auxiliary or low-inertia axes, and the GV6-U30E-NK (30A variant) for high-torque spindle or gantry axes. Shared-bus configurations also benefit from a Parker regenerative bus supply module, which conditions the DC bus voltage across all drives in the cabinet. Terminal block wiring to the motor power connector follows the standard U/V/W phase sequence, and the brake output relay (24 VDC, 1A) is pin-compatible with Parker MPP motor holding brakes, eliminating the need for external relay rewiring.

From a programming and commissioning standpoint, the GV6-U12E-NK is supported by Parker’s MotionSuite development environment and the ACR firmware suite. Auto-tuning routines can be executed directly from the software wizard, and the drive’s onboard fault log (accessible via EtherNet/IP or the front-panel USB port) provides detailed diagnostic codes that map directly to the GV6 Series hardware manual. For sites without on-site Parker-certified engineers, TOPNLMS provides pre-shipment parameter backup files upon request, allowing your maintenance team to restore a known-good configuration immediately after installation.

Procurement teams evaluating the GV6-U12E-NK as a replacement for a discontinued or end-of-life servo drive should note that TOPNLMS maintains verified stock sourced from authorized distribution channels. Each unit undergoes functional testing prior to shipment, including power-on self-test, encoder feedback verification, and EtherNet/IP node enumeration. Units are shipped in anti-static packaging with original documentation where available. Lead times are typically 1–3 business days for in-stock units, with express international shipping available to minimize production downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful GV6-U12E-NK retrofit rarely involves the servo drive alone. In most multi-axis control cabinets, the drive operates as part of a coordinated system that includes the Parker ACR9000 multi-axis motion controller, which manages trajectory planning and synchronization across all GV6 Series axes via EtherNet/IP. If the ACR controller firmware predates EtherNet/IP support, a firmware update or controller replacement with the ACR9000-P4 variant is recommended before commissioning the GV6-U12E-NK.

On the motor side, the GV6-U12E-NK is fully compatible with Parker MPP-Series and MPJ-Series servo motors. If the existing motor’s resolver cable is damaged or non-standard length, Parker’s pre-assembled resolver cable assemblies (CBL-RES-xxx) can be ordered to match the exact cabinet-to-motor distance, avoiding field-spliced connections that introduce noise into the feedback loop.

For sites migrating from a serial-based architecture, a Parker SER-ETH gateway module can bridge legacy RS-232 devices—such as older HMI panels or barcode scanners—to the EtherNet/IP network, preserving existing operator interface investments. Similarly, if the control cabinet includes a Parker I/O expansion module (such as the GV6-L or a Compax3 I/O option card), these can be retained and wired to the GV6-U12E-NK’s 37-pin I/O connector using the existing terminal block assignments.

Power distribution within the cabinet should be reviewed during the retrofit. A Parker regenerative bus supply or a compatible 24 VDC SITOP power supply module ensures stable logic power across all drives. If the cabinet uses a shared AC line filter for EMC compliance, verify that the filter’s rated current covers the combined inrush of all GV6 drives on the bus. Signal isolation between the PLC analog output and the drive’s torque/velocity reference input can be maintained using a DIN-rail signal isolator (e.g., Phoenix Contact MINI MCR series), which is particularly important in environments with high-frequency VFD noise on the cabinet ground plane.

Finally, for sites that require a programming interface during commissioning without a networked PC, a Parker USB-to-serial programming cable (CBL-RJ11-USB) connected to the drive’s front-panel port allows direct parameter access via MotionSuite, independent of the EtherNet/IP network state. This is especially useful during initial power-up and fault diagnostics in the field.

Retrofit Guidance FAQ

Q: Can I reuse my existing motor wiring when replacing a GV6-U12E with the GV6-U12E-NK?
A: Yes. The motor power connector (U/V/W/PE) and resolver/encoder feedback connector pinouts are identical between GV6-U12E variants. No re-termination is required at the drive end. Verify cable insulation integrity and shield continuity before powering up.

Q: Do I need to rewrite my motion program for EtherNet/IP?
A: Not entirely. ACR Basic programs written for serial communication can be adapted by reassigning the communication port variable and updating the node address. Axis parameter sets (tuning gains, travel limits, homing sequences) are fully portable and can be exported from the legacy drive via MotionSuite before decommissioning.

Q: Is the GV6-U12E-NK compatible with Allen-Bradley ControlLogix?
A: Yes. The drive’s EtherNet/IP interface supports the CIP Motion profile. Import the Parker GV6 AOP into Studio 5000 Logix Designer, assign the drive’s IP address, and configure the axis properties. The axis tag structure is compatible with standard Logix motion instructions (MAJ, MAS, MAM, etc.).

Q: What physical space does the GV6-U12E-NK require in the control cabinet?
A: The GV6-U12E-NK uses the same DIN-rail footprint and panel-mount hole pattern as the GV6-U12E. No cabinet modification is required. Maintain the manufacturer-specified minimum clearance (50mm top/bottom, 10mm sides) for adequate airflow.

Q: How do I handle the transition from RS-485 multi-drop to EtherNet/IP?
A: Remove the RS-485 daisy-chain wiring from the legacy drives. Each GV6-U12E-NK requires a dedicated RJ45 port on a managed Ethernet switch. Assign a static IP address to each drive using the front-panel rotary switches or via MotionSuite’s network configuration wizard. Use a separate VLAN for motion control traffic to isolate it from plant IT networks.

Q: Can the GV6-U12E-NK share a DC bus with older GV6 drives?
A: Yes, provided the bus supply module is rated for the combined peak current of all drives on the bus. The GV6-U12E-NK’s DC bus connector is pin-compatible with the GV6 bus bar system. Verify bus capacitance and regenerative energy ratings before mixing drive generations on a shared bus.

Q: What if my application requires STO (Safe Torque Off) functionality?
A: The GV6-U12E-NK includes a hardware enable input (HW Enable) on the 37-pin I/O connector that can be wired to a safety relay output for STO-equivalent behavior. For full SIL 2 / PLd compliance, consult Parker’s functional safety documentation and verify with your local safety authority.
