Panasonic NA2-N16P Replacement/Upgrade for NA2 Series

Product Overview

Panasonic NA2-N16P Replacement/Upgrade for NA2 Series: Smooth Transition from Legacy Safety Systems

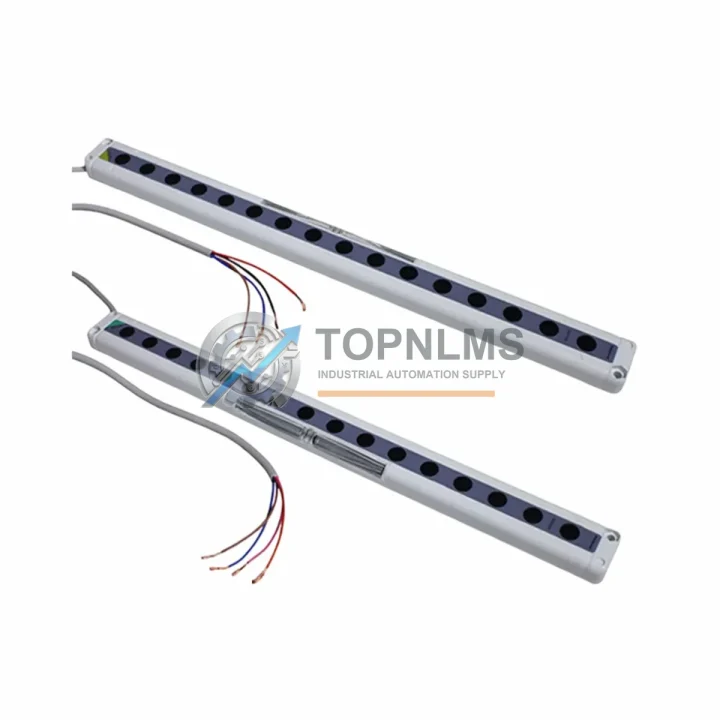

The Panasonic NA2-N16P is a 16-beam safety light curtain controller designed for area sensing and personnel protection in industrial automation environments. As legacy safety systems age and original equipment manufacturers discontinue support for older models, facilities running Panasonic NA2 Series safety light curtains face increasing pressure to source reliable replacement units or plan a structured upgrade path. The NA2-N16P serves as a direct replacement for worn, damaged, or end-of-life NA2 Series controllers, enabling a smooth transition with minimal rewiring, reprogramming, or downtime.

Whether your facility is migrating from an earlier NA2 variant, integrating the controller into a modernized safety PLC architecture, or simply replacing a failed unit on the production floor, the NA2-N16P delivers the compatibility and performance required for seamless continuity. Its 16-beam configuration covers standard guarding zones found in press lines, robotic cells, conveyor entry points, and assembly stations — making it one of the most widely deployed safety light curtain controllers in the Panasonic NA2 product family.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful NA2-N16P installation rarely involves the controller alone. In most retrofit and modernization projects, the safety light curtain controller works in conjunction with a broader set of components that must be evaluated for compatibility before commissioning. When migrating from an older NA2 Series installation, engineers typically review the NA2-N16 emitter and receiver bar assemblies first — confirming that the existing optical heads remain serviceable and that the M12 cable harness can be reused without modification. In many cases, the original emitter/receiver pair can be retained, reducing the scope of the replacement to the controller unit only.

For facilities integrating the NA2-N16P into a safety PLC architecture, the controller’s dual-channel OSSD outputs connect directly to safety relay modules such as the Panasonic SF-C11 or equivalent third-party safety relays, which then interface with the machine’s main contactor or servo drive enable circuit. Where the existing safety relay is also aging, a concurrent replacement of the safety relay module is advisable to avoid a secondary failure shortly after the light curtain controller is restored.

In control cabinet installations, the NA2-N16P mounts on standard 35 mm DIN rail alongside other safety and control components. Engineers migrating from older systems should verify that the cabinet’s 24 VDC power supply — often a Panasonic or IDEC DIN rail power supply unit — provides sufficient current headroom for the controller and its connected I/O. If the existing power supply is undersized or nearing end of life, replacing it concurrently with the NA2-N16P eliminates a common source of nuisance tripping after commissioning.

Communication with the upstream PLC or safety controller is handled through hardwired discrete I/O. Facilities running Mitsubishi MELSEC safety PLCs, Siemens S7-300 F-series, or Omron NX/NJ safety controllers will find the NA2-N16P’s OSSD outputs straightforward to wire into existing safety input modules. Where the safety input module itself is being replaced as part of a broader I/O modernization, Panasonic FP-X safety I/O modules or equivalent safety-rated digital input cards provide a compatible interface. Signal isolation between the light curtain output and the PLC input can be achieved using DIN rail-mounted signal isolators or safety-rated optocouplers where required by the system architecture.

For applications where the NA2-N16P is being installed as part of a larger machine safety upgrade — for example, alongside a new servo drive system or a robot cell guarding retrofit — the controller’s muting input terminals allow integration with muting sensors and muting lamps, enabling material flow through the guarded zone without triggering a safety stop. Muting sensor pairs, typically photoelectric sensors mounted at the zone entry point, should be selected to match the response time and logic requirements of the NA2-N16P muting function as specified in the Panasonic NA2 Series technical manual.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring when replacing an older NA2 Series controller with the NA2-N16P?
A: In most cases, yes. The NA2-N16P uses the same M12 connector pinout as the NA2 Series emitter and receiver bars. Verify the cable shield grounding and confirm that the existing cable length does not exceed the NA2-N16P’s specified maximum sensing distance for your beam pitch configuration.

Q: Do I need to reprogram my PLC after installing the NA2-N16P?
A: No PLC reprogramming is required if the replacement is a like-for-like swap. The NA2-N16P presents the same OSSD dual-channel output behavior as its predecessors. If you are changing the safety category or adding muting functionality, a safety function validation and PLC logic review will be required per IEC 62061 or ISO 13849-1.

Q: Is the NA2-N16P compatible with my existing safety relay module?
A: The NA2-N16P’s OSSD outputs are compatible with standard safety relay modules that accept dual-channel PNP inputs at 24 VDC. Confirm the input current requirements of your safety relay against the NA2-N16P’s output current specification before wiring.

Q: What is the physical installation space required?
A: The NA2-N16P mounts on 35 mm DIN rail. Its dimensions are consistent with the NA2 Series controller family, so existing DIN rail space in the control cabinet is typically sufficient for a direct swap without panel modification.

Q: How do I handle the communication protocol if my system uses a fieldbus?
A: The NA2-N16P uses hardwired OSSD outputs and does not natively support fieldbus protocols such as PROFIBUS, DeviceNet, or EtherNet/IP. If fieldbus integration is required, a safety gateway module — such as a Pilz PSSuniversal or equivalent — can be used to bridge the OSSD output to the fieldbus network.

Q: What testing is required after installation?
A: After installation, perform a full functional test of the safety light curtain system per the NA2 Series commissioning procedure: verify beam alignment, confirm OSSD output switching under test object insertion, validate muting function if applicable, and document the safety function validation as required by your local machinery safety standard.

Warranty Assurance

Every NA2-N16P unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including power-on testing, OSSD output confirmation, and visual inspection for physical integrity. Units that fail to meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers experiencing production downtime. Our technical team is available to assist with installation queries, wiring verification, and compatibility confirmation before and after shipment. Replacement units for valid warranty claims are dispatched within 3 business days of claim approval.

We maintain stock of NA2-N16P and related NA2 Series components to support urgent replacement requirements. Express shipping options are available to destinations worldwide, with standard lead times of 3–7 business days for most regions. All units are shipped with original manufacturer packaging and documentation where available.

For procurement inquiries, bulk pricing, or technical pre-sales support, contact our team directly.
