YOKOGAWA PALR12151 Replacement for CENTUM VP Series

Product Overview

YOKOGAWA PALR12151 Replacement for CENTUM VP Series: Smooth Migration & Legacy DCS Upgrade

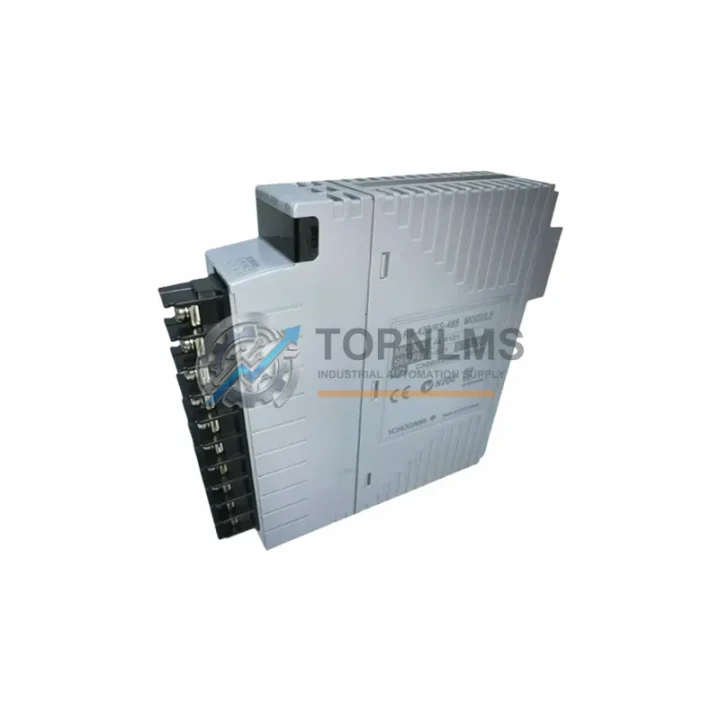

The YOKOGAWA PALR12151 is a serial communication module engineered for the CENTUM VP Distributed Control System platform. For process plants and manufacturing facilities still operating aging CENTUM CS 3000 installations or early-revision CENTUM VP field control stations, the PALR12151 provides a validated, drop-in upgrade path that preserves existing wiring infrastructure, serial communication protocols, and control cabinet layouts — substantially reducing migration risk, engineering hours, and unplanned production downtime.

When your DCS backbone depends on RS-232C or RS-422/RS-485 serial links to interface with field analyzers, flow computers, third-party PLCs, or legacy instrumentation, replacing a failed or end-of-life serial communication module demands a part that is electrically and functionally identical to the original. The PALR12151 meets this requirement precisely. It installs directly into the standard YOKOGAWA Vnet/IP field control station (FCS) node chassis without mechanical modification, accepts the same terminal block wiring, and operates over the same serial protocols already defined in your existing FCS builder configuration — meaning no re-engineering of the control strategy, no new function block programming, and no changes to the HMI alarm definitions.

For procurement engineers and instrument technicians managing critical spare inventories, the PALR12151 is a high-priority line item. Serial communication module failures in a CENTUM VP system can isolate entire subsystems — gas chromatographs, custody transfer flow computers, or third-party motor control centers — from the DCS supervisory layer. Stocking a verified replacement unit eliminates the lead-time risk associated with sourcing obsolete or discontinued modules from the OEM channel.

Compatibility Comparison Table

Seamless Upgrade Solutions

A CENTUM VP serial communication module replacement rarely occurs in isolation. Field engineers performing a PALR12151 swap typically conduct a concurrent audit of adjacent modules within the same FCS node unit. The YOKOGAWA ALR111 analog input module and ALR121 analog output module share the same backplane power distribution rail, making a rack-level inspection during the PALR12151 replacement a standard and prudent practice. If the broader migration scope involves transitioning from a CS 3000 chassis to a current-generation CENTUM VP cabinet, the YOKOGAWA AFV10D field control unit provides the updated processing backbone while retaining full compatibility with existing I/O terminal wiring — eliminating the need for field rewiring during the cutover.

In plants where the PALR12151 serial port connects to a third-party gas chromatograph, Coriolis flow computer, or online analyzer, the module typically operates alongside a YOKOGAWA PFCS100 field communication server to bridge legacy serial data streams into the Vnet/IP Ethernet backbone. Where galvanic isolation is required between the DCS serial interface and field instruments located in hazardous or electrically noisy environments, an inline signal isolator or RS-485 repeater is inserted at the terminal block — the PALR12151’s differential RS-422/485 signaling supports this topology without additional software configuration.

Power supply integrity is a critical checkpoint during any module swap. The YOKOGAWA PW481 DCS power supply module should be verified for output voltage stability before and after PALR12151 installation, as voltage transients during module insertion can affect initialization sequencing. For sites also running a CENTUM VP HIS (Human Interface Station), no HMI reconfiguration is required after a direct module replacement — serial communication function block definitions in the FCS builder remain intact and active.

For facilities executing a phased migration from CS 3000 to CENTUM VP, the YOKOGAWA LFCS2 field control station and associated node unit expansion racks provide the physical infrastructure into which the PALR12151 integrates seamlessly. Procurement teams managing critical spare inventories should also consider stocking the YOKOGAWA PALR12151 alongside complementary high-criticality components such as the ALR111 analog input module, PW481 power supply, and relevant CENTUM VP I/O terminal assemblies to support rapid field replacement without dependency on international OEM lead times.

Retrofit Guidance FAQ

Q: Can I replace the PALR12151 without modifying existing field wiring?
A: Yes. The PALR12151 uses the same terminal block pin-out as the module it replaces. Isolate power to the node unit, remove the legacy module, insert the PALR12151, and restore power — no wiring changes are required in the field junction box or control cabinet.

Q: Do I need to re-download the FCS control strategy after replacement?
A: In most cases, a module-level re-initialization via the CENTUM VP Engineering Environment is sufficient. A full FCS download is only required if the module slot address or serial communication function block parameters have been modified.

Q: Is the PALR12151 compatible with Modbus RTU devices on the serial port?
A: Yes. The module supports Modbus RTU over RS-232C and RS-485, consistent with the original CENTUM VP serial communication specification. Existing Modbus device address maps, baud rate settings, and parity configurations are preserved without modification.

Q: What physical space does the PALR12151 occupy in the control cabinet?
A: It occupies a single standard YOKOGAWA FCS module slot. No additional DIN rail space, external mounting bracket, or cabinet modification is required.

Q: How do I verify correct operation after installation?
A: Use the CENTUM VP Engineering Environment to check module status indicators and communication diagnostics. The HIS alarm summary will clear serial communication fault alarms once the module is correctly initialized and the connected field device responds on the configured serial port.

Q: Can the PALR12151 be used in a CS 3000 chassis?
A: The PALR12151 is specified for CENTUM VP. For CS 3000 installations, confirm chassis backplane and slot compatibility with your system documentation or contact TOPNLMS before ordering.

Warranty Assurance

Every YOKOGAWA PALR12151 unit dispatched by TOPNLMS is covered by a 12-month warranty from the date of confirmed delivery. Prior to shipment, each module undergoes functional verification including power-on self-test, communication port continuity check, and visual inspection of connector integrity and PCB condition. Units that do not pass pre-shipment inspection are not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched from our Xiamen warehouse with priority freight to minimize plant exposure to extended downtime.

All units ship in anti-static ESD packaging with individual serial number documentation to support your plant’s spare parts traceability and approved vendor list requirements. Customs documentation, commercial invoices, and packing lists are provided as standard for all international shipments. Pre-shipment inspection reports and functional test certificates are available upon request for procurement teams with formal QA requirements.

Bulk orders for critical spare stock are welcome. Contact our team to discuss lead times, volume pricing, and consignment stocking arrangements.
