Pacific Scientific PC832-001-T Original Industrial Spare PC800 Compatible

Product Overview

Pacific Scientific PC832-001-T Original Industrial Spare PC800 Compatible: Ensuring System Stability in Demanding Automation Environments

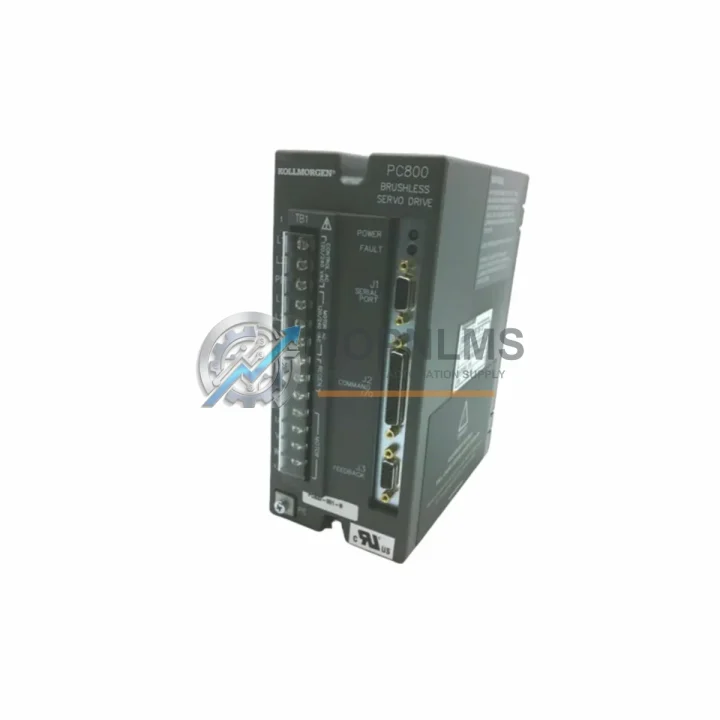

The Pacific Scientific PC832-001-T is an original brushless AC servo drive from the PC800 series, engineered for precision motion control in industrial automation systems. Whether you are managing a scheduled maintenance window, responding to an unplanned shutdown, or building a strategic spare parts inventory, the PC832-001-T delivers the electrical performance and form-factor compatibility required to restore your servo axis to full operation without system redesign or software reconfiguration. For maintenance engineers and procurement teams operating legacy motion control systems, sourcing a verified original replacement unit is the single most effective way to minimize mean time to repair (MTTR) and protect production continuity.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive failure rarely occurs in isolation. In most industrial control cabinets, the PC832-001-T operates as part of a tightly integrated motion control ecosystem. When performing a drive replacement or scheduled inspection, experienced maintenance teams treat the event as an opportunity to audit the entire servo axis and adjacent electrical circuits — a practice that significantly reduces the probability of a secondary failure within the same maintenance cycle.

Begin by inspecting the servo motor feedback cable and encoder connector. Degraded shielding or intermittent contacts on the feedback harness are a leading cause of drive fault codes that are frequently misdiagnosed as drive failures. At the same time, verify the condition of the 24 VDC control power supply module feeding the drive’s logic section; a supply operating at the edge of its voltage tolerance will cause erratic enable/disable behavior and can shorten drive IGBT lifespan. If the cabinet houses multiple axes, check the shared DC bus capacitor bank or regenerative braking resistor — these components absorb energy during deceleration and degrade silently over time.

For the I/O interface, inspect the terminal block wiring on the drive’s analog command input and digital I/O connector. Loose terminations on the ±10 VDC velocity reference signal introduce velocity ripple that manifests as mechanical vibration at the load. If your system uses a PLC analog output module to generate the velocity command — common in Siemens S7-300/400 or Allen-Bradley ControlLogix architectures — verify the output channel calibration and confirm the module’s output impedance is within the drive’s input specification.

The RS-232 configuration cable and PC-based commissioning software (Pacific Scientific’s MotionLink or equivalent) should be available on-site before the replacement drive is installed. Parameter cloning from a backup file eliminates the risk of manual entry errors during recommissioning. If no parameter backup exists, document all drive parameters from the faulted unit before powering it down — many parameters remain readable even on a faulted drive.

During the cabinet inspection, also evaluate the EMC line filter on the drive’s AC input. A degraded filter allows high-frequency switching noise to propagate back onto the facility power bus, which can cause nuisance trips on adjacent PLC CPU modules or HMI panels. Finally, check the contactor and motor overload relay in the motor branch circuit; these components are often overlooked during servo drive replacements but are subject to the same thermal cycling and contact wear as the drive itself.

Procurement teams building a strategic spare parts inventory for PC800-series installations should consider stocking the PC832-001-T alongside compatible signal isolator modules for the analog command circuit and a spare encoder feedback connector kit. For multi-axis systems, a single spare drive covering the most common current rating in the installation provides the highest inventory efficiency per dollar invested.

Strategic Replacement Solutions

The PC832-001-T is a direct form-fit-function replacement for earlier PC800-series variants including the PC830-001-T and PC834-001-T, sharing the same mounting footprint, connector pinout, and parameter structure. This backward compatibility is a critical advantage for facilities operating legacy machinery where the original drive model has been discontinued or is available only through the secondary market.

For systems originally commissioned with older Pacific Scientific SC-series or 6000-series drives, the PC832-001-T can serve as an upgrade path with appropriate parameter mapping and, in some cases, minor wiring adaptation at the feedback connector. This approach extends the operational life of the host machine by 5–10 years without requiring a full motion control system redesign — a compelling value proposition when the alternative is a capital-intensive machine retrofit.

In multi-axis gantry, conveyor, or rotary indexing applications, replacing a single failed axis with a verified original unit — rather than a generic third-party substitute — preserves the tuning symmetry between axes and eliminates the risk of incompatible current loop bandwidth that can cause mechanical resonance or following error faults on adjacent axes. The PC832-001-T’s original firmware and parameter defaults are matched to Pacific Scientific R-series motor characteristics, ensuring stable closed-loop performance from first power-on.

All units shipped from TOPNLMS undergo pre-shipment functional testing including power-on verification, enable/disable sequencing, and parameter readback confirmation. Units are packed in anti-static packaging with desiccant and shipped with a test report. Standard lead time is 1–3 business days for in-stock units, with expedited shipping available for emergency breakdown situations.

Support FAQ

Q1: Is the PC832-001-T covered by a warranty, and what does it include?
Yes. All PC832-001-T units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions and includes return shipping for warranty claims. Units that fail within the warranty period are replaced or refunded at the buyer’s discretion.

Q2: How do I verify compatibility before ordering?
The PC832-001-T is compatible with all Pacific Scientific R-series brushless servo motors rated for the drive’s continuous output current. Confirm the motor nameplate current rating, feedback type (encoder or resolver), and supply voltage against the drive specifications above. If you have the original drive’s parameter file or a photo of the nameplate, our technical team can confirm compatibility before shipment — contact us at [email protected].

Q3: Can I transfer parameters from my failed drive to the replacement unit?
Yes, provided the failed drive is still capable of communicating via RS-232. Use Pacific Scientific’s MotionLink software to upload the parameter set from the faulted drive and download it to the replacement unit. If the failed drive is non-communicative, TOPNLMS can supply a standard parameter template for the PC832-001-T based on your motor model — contact us with your motor part number.

Q4: What is the recommended inventory strategy for PC800-series drives?
For facilities with 3 or more PC800-series axes, we recommend maintaining at least one spare PC832-001-T per current rating tier in use. Given the drive’s discontinuation risk and the lead times associated with sourcing original units on the secondary market, a proactive inventory position of 1–2 units per site significantly reduces the expected cost of unplanned downtime over a 3–5 year horizon. Contact us for volume pricing on multi-unit orders.
