Pacific Scientific K42HLHN-LNK-NS-01 Replacement K Series

Product Overview

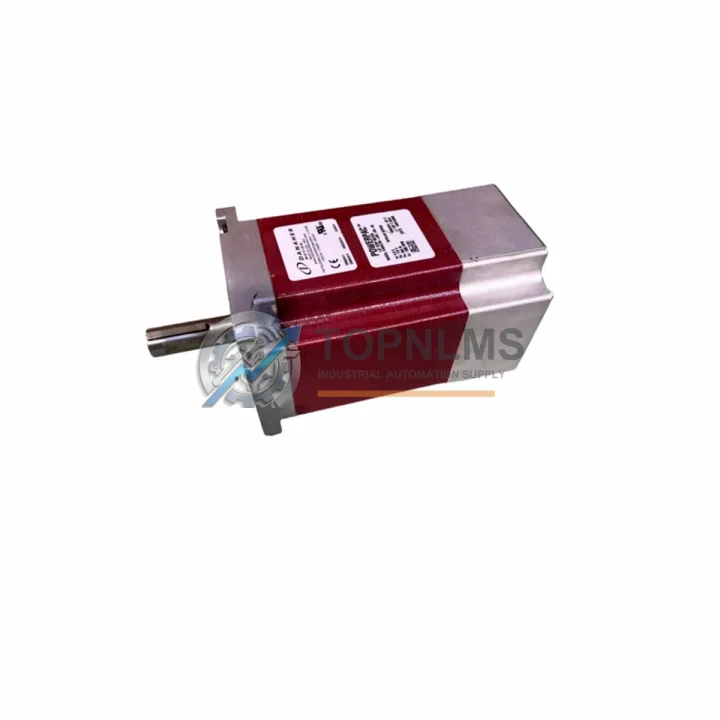

Pacific Scientific K42HLHN-LNK-NS-01 Replacement K Series: Seamless Transition from Legacy Motion Control Systems

When your production line depends on precise motion control, an unexpected stepper motor failure or the discontinuation of a legacy drive component can bring operations to a standstill. The Pacific Scientific K42HLHN-LNK-NS-01 is a NEMA 17 frame, 2-phase hybrid stepper motor from the renowned K Series — a platform widely deployed across CNC machining centers, semiconductor handling equipment, medical automation, and precision positioning systems. Whether you are replacing a failed unit, upgrading an aging motion control cabinet, or migrating away from an end-of-life drive architecture, TOPNLMS maintains verified stock of this exact model to support your retrofit or emergency replacement project.

The K42HLHN-LNK-NS-01 features a standard NEMA 17 (42 mm) bolt pattern, making it dimensionally interchangeable with a broad range of legacy and current-generation stepper motors. Its 2-phase bipolar winding configuration is directly compatible with the majority of stepper drive modules in service today, including Pacific Scientific’s own SC series drives and third-party microstepping drives that accept standard 4-wire or 8-wire motor connections. Engineers migrating from older Pacific Scientific P/H Series motors or from competing NEMA 17 units will find that the K42HLHN-LNK-NS-01 slots into existing motor mounts without mechanical modification in most installations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful stepper motor replacement rarely involves the motor alone. In most K Series retrofit projects, engineers also evaluate the associated drive and control infrastructure to ensure the entire motion axis performs reliably after the swap. When replacing the K42HLHN-LNK-NS-01, the following components are commonly reviewed or replaced in parallel.

The Pacific Scientific SC Series stepper drive is the native drive platform for K Series motors and remains the preferred pairing for this motor. If the existing SC drive is also aging or showing fault codes, replacing both the motor and drive simultaneously eliminates the risk of a second unplanned downtime event shortly after the motor swap. For systems where the SC drive is no longer available, a compatible third-party microstepping drive accepting standard step/direction input and rated for the motor’s current and voltage specifications can serve as a functional substitute.

In multi-axis systems, the motion controller or indexer card — often a Pacific Scientific or third-party pulse-output controller — should be verified for compatibility with the replacement motor’s holding torque and step resolution. If the system previously operated at full-step or half-step resolution, upgrading to a microstepping drive module during the same retrofit window can improve positioning smoothness without requiring changes to the mechanical load or the PLC program logic.

The motor cable and connector assembly is a frequently overlooked element in stepper motor replacements. The K42HLHN-LNK-NS-01 uses a standard 4-pin motor connector; if the existing cable is worn, pinched, or shows signs of insulation degradation, replacing the motor cable at the same time as the motor prevents nuisance faults after reinstallation. TOPNLMS can advise on compatible cable specifications for your installation environment.

For installations where the K42HLHN-LNK-NS-01 is mounted inside a control cabinet or enclosed machine frame, verifying the available mounting depth and shaft clearance before ordering is recommended. The K Series NEMA 17 body length is a key dimension — if the legacy motor was a shorter-stack variant, confirm that the replacement body length fits within the existing mechanical envelope. In tight-space retrofits, a flexible shaft coupling or a revised motor bracket may be required.

Systems that include a Pacific Scientific RP Series or equivalent servo amplifier in adjacent axes should also be checked for shared power supply loading. Adding a replacement stepper motor to a shared 24 VDC or 48 VDC bus requires confirming that the power supply module has sufficient headroom for the motor’s peak current draw during acceleration. If the bus is already near capacity, a dedicated DIN-rail power supply module for the stepper axis is a straightforward solution.

Where the motion system interfaces with a PLC — such as a Mitsubishi MELSEC, Siemens S7, or Allen-Bradley ControlLogix platform — the pulse output module or high-speed counter card driving the stepper axis should be confirmed to support the step frequency required for the application’s target velocity and acceleration profile. No changes to the PLC program are typically required when performing a like-for-like motor replacement, but if the replacement motor has a different step angle or inductance, the drive tuning parameters may need adjustment.

Finally, for systems using a signal isolator or optocoupler board between the PLC output and the stepper drive input, verify that the isolator’s maximum pulse frequency is not a bottleneck for the new drive’s microstepping resolution. Upgrading the isolator board during the retrofit is a low-cost step that prevents intermittent positioning errors at higher speeds.

Retrofit Guidance FAQ

Q: Can I wire the K42HLHN-LNK-NS-01 directly to my existing stepper drive without rewiring?
A: In most cases, yes. The K Series uses a standard bipolar winding configuration. If your existing drive accepts a 4-wire bipolar motor, the wiring is typically a direct swap. Verify the phase current rating of your drive matches or exceeds the motor’s rated current before powering up.

Q: Do I need to modify my PLC program after replacing the motor?
A: A like-for-like replacement of the K42HLHN-LNK-NS-01 with the same model requires no PLC program changes. The step/direction interface is unchanged. If you are also changing the drive’s microstepping resolution, update the pulse-per-revolution parameter in your motion controller accordingly.

Q: Is the K42HLHN-LNK-NS-01 compatible with third-party microstepping drives?
A: Yes. The motor’s standard bipolar winding is compatible with any microstepping drive that accepts a 4-wire motor connection and is rated for the motor’s phase current and voltage. Confirm the drive’s current rating and set the drive’s current limit to match the motor’s rated phase current.

Q: What is the physical installation space requirement?
A: The motor uses a standard NEMA 17 (42 mm) bolt pattern. Measure the existing motor’s body length (stack length) and confirm the replacement fits within your machine’s motor pocket or mounting bracket. The shaft diameter and length should also be verified against your existing coupling.

Q: Can this motor replace a Pacific Scientific P Series or H Series NEMA 17 motor?
A: The K Series shares the NEMA 17 bolt pattern with P and H Series motors, making mechanical installation straightforward in most cases. Electrical compatibility depends on the winding current and voltage ratings — compare the motor datasheets and adjust drive settings accordingly.

Q: How do I verify communication protocol compatibility?
A: The K42HLHN-LNK-NS-01 operates on a standard step/direction pulse interface. There is no fieldbus or serial protocol involved at the motor level. Protocol compatibility is determined by the drive and controller, not the motor itself.

Warranty Assurance

Every Pacific Scientific K42HLHN-LNK-NS-01 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including winding resistance checks, insulation testing, and shaft runout inspection to confirm it meets the original manufacturer’s performance specifications.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed defect. Our technical support team is available to assist with installation questions, wiring verification, and drive compatibility checks before and after delivery. We understand that unplanned downtime in industrial environments carries significant operational cost, and our goal is to minimize your exposure from the moment you place an order.

Orders are processed and dispatched from our Xiamen warehouse, with express shipping options available for urgent replacement requirements. We support international shipments to customers in Southeast Asia, Europe, the Middle East, and the Americas. Lead time for in-stock units is typically 1–3 business days from order confirmation.

For volume procurement, spare parts program inquiries, or technical pre-sales support, contact our team directly. We maintain safety stock of high-demand K Series components to support planned maintenance programs and emergency replacement needs.
