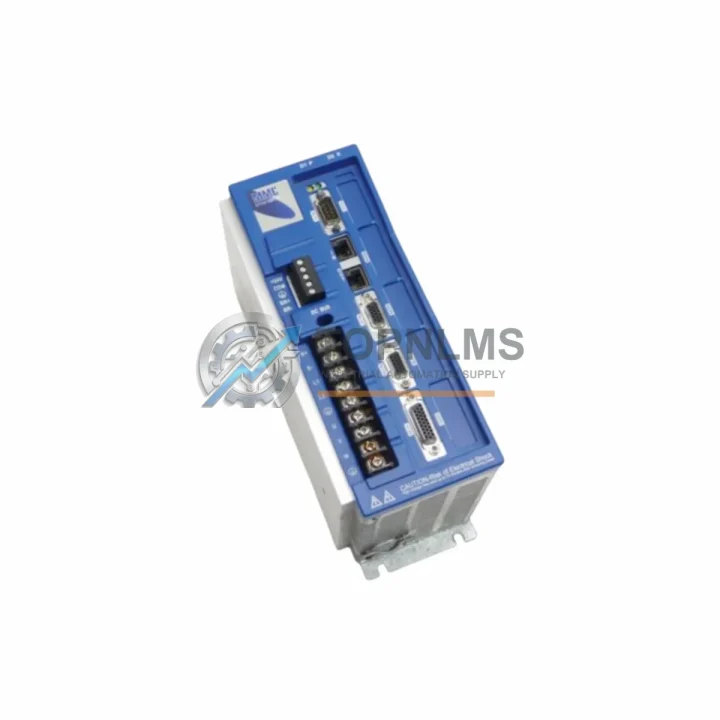

ORMEC SAC-SW217/EP SAC-SW217/E Original Industrial Spare ServoWire Compatible

Product Overview

ORMEC SAC-SW217/EP & SAC-SW217/E Original Industrial Spare ServoWire Compatible: System Stability and Industrial Spare Maintenance Value

The ORMEC SAC-SW217/EP and SAC-SW217/E are single-axis servo amplifiers from ORMEC’s ServoWire drive family — a proven platform widely deployed in precision motion control applications across manufacturing, packaging, semiconductor handling, and industrial robotics. When a servo amplifier fails on the production floor, every minute of unplanned downtime translates directly into lost output and escalating maintenance costs. Sourcing a verified original replacement unit — rather than an untested substitute — is the fastest path back to full system operation.

The SAC-SW217/EP and SAC-SW217/E are functionally equivalent variants within the same ServoWire axis module family, differentiated by connector configuration. Both units interface directly with ORMEC’s ServoWire network architecture, accepting motion commands from the host controller and delivering closed-loop torque, velocity, and position control to the connected servo motor. Their compact single-axis form factor makes them a standard building block in multi-axis control cabinets where space efficiency and modular serviceability are critical design requirements.

At TOPNLMS, every SAC-SW217/EP and SAC-SW217/E unit is sourced from verified supply channels, individually inspected prior to dispatch, and covered by a 12-month warranty. Units are shipped with full packaging protection and can be dispatched globally within standard lead times. For maintenance engineers managing aging ORMEC-based systems, having a confirmed spare on the shelf eliminates the single largest risk factor in servo drive failure scenarios: procurement delay.

Critical Technical Specs

Preventive Maintenance Strategy

A servo amplifier failure rarely occurs in isolation. In a ServoWire-based motion system, the SAC-SW217/EP or SAC-SW217/E operates as part of a tightly integrated electrical and communication architecture. When scheduling a replacement or conducting a planned shutdown inspection, maintenance engineers should treat the servo amplifier swap as an opportunity to audit the full axis assembly and adjacent control cabinet components.

Begin with the ServoWire network cabling connecting the axis module to the motion coordinator. Cable insulation degradation, connector oxidation, and intermittent continuity faults are among the most common root causes of axis faults that are incorrectly attributed to the amplifier itself. Inspect and, where necessary, replace the network cables and their termination connectors before commissioning the new drive unit.

The 24VDC control power supply feeding the axis module logic circuits should be verified for output stability and ripple. An aging or undersized power supply module can cause erratic drive behavior, fault codes, and premature component wear. If the power supply is more than five years old or shows any sign of output instability, replacement during the same maintenance window is strongly recommended.

Check the motor feedback cable — the encoder or resolver cable running between the servo motor and the SAC-SW217 axis module. Damaged shielding, bent connector pins, or intermittent signal loss on the feedback line will prevent the new amplifier from achieving stable closed-loop control. Verify cable continuity and shield integrity before powering up the replacement unit.

Inspect the I/O interface wiring at the axis module terminal connections. Loose terminals, corroded contacts, and miswired enable or fault-reset signals are a frequent source of commissioning delays after a drive replacement. Tighten all terminal screws and verify signal assignments against the original wiring diagram.

If the control cabinet houses a fuse module or circuit protection assembly for the servo drive power circuit, verify fuse continuity and check for signs of thermal stress on the fuse holders. A blown or weakened fuse protecting the drive’s AC input is sometimes the actual cause of the amplifier fault — replacing the drive without addressing the fuse condition risks immediate repeat failure.

For multi-axis systems, review the status of adjacent axis modules on the same ServoWire network. A fault on one axis can propagate communication errors across the network, masking secondary faults on neighboring drives. Use the system’s diagnostic interface to clear all axis fault logs and verify that each axis initializes cleanly after the replacement is installed.

Where the system includes a motion coordinator or host PLC managing the ServoWire network, confirm that the controller firmware and axis configuration parameters are backed up before the maintenance window begins. Restoring axis tuning parameters, motion profiles, and I/O mappings from a verified backup is significantly faster than re-commissioning from scratch. If the host controller battery or memory backup module is approaching end of life, this is an appropriate time to replace it alongside the servo amplifier.

Finally, inspect the control cabinet thermal management — door-mounted filters, internal fans, and heat exchanger units. Servo amplifiers are sensitive to elevated ambient temperatures, and a blocked filter or failed cooling fan is a common contributing factor in drive failures. Clean or replace filters and verify fan operation as part of every planned maintenance intervention.

Strategic Replacement Solutions

The ORMEC ServoWire platform, while no longer in active production, remains operational in a significant installed base of precision motion systems worldwide. OEM support for legacy ORMEC drives has been discontinued, making the availability of verified original spare units the primary factor determining whether an aging ServoWire system can continue operating or must be retired prematurely.

The SAC-SW217/EP and SAC-SW217/E are direct drop-in replacements for failed units of the same part number. Because they are original ORMEC components — not third-party remanufactured substitutes — they retain full compatibility with the ServoWire network protocol, the original axis configuration parameters, and the motor feedback interface. No firmware modifications, parameter re-mapping, or network reconfiguration is required. The replacement unit accepts the existing axis configuration and resumes operation with the same performance characteristics as the original.

For maintenance teams managing multiple ServoWire axes, the most effective strategy is to maintain at least one verified spare SAC-SW217 unit per system. The cost of a single unplanned production stoppage — including lost output, emergency procurement premiums, and expedited freight — typically exceeds the cost of holding a spare unit by a significant margin. Planned spare inventory eliminates the procurement delay that converts a manageable maintenance event into an extended production outage.

For facilities operating multiple ORMEC-based systems, consolidating spare procurement across sites reduces per-unit cost and simplifies inventory management. TOPNLMS supports multi-unit orders with consistent lead times and can provide documentation packages — including inspection records and warranty certificates — suitable for maintenance management systems and audit requirements.

Support FAQ

Q: Is the SAC-SW217/EP a direct replacement for the SAC-SW217/E?
A: The two variants share the same core servo amplifier architecture and ServoWire network interface. The primary difference is the connector configuration. In most installations, the /EP and /E variants are interchangeable with minor wiring adaptation at the connector. Confirm your cabinet wiring diagram before substituting one variant for the other.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. Each unit is inspected prior to dispatch. In the event of a warranty claim, TOPNLMS provides replacement or repair support. Contact [email protected] with your order reference and a description of the fault.

Q: How is the unit tested before shipment?
A: All units undergo visual inspection, connector integrity verification, and functional checks prior to packaging. Units are shipped in anti-static protective packaging with physical protection appropriate for international freight. Inspection documentation is available on request.

Q: How should I manage spare inventory for a multi-axis ServoWire system?
A: The recommended approach is to hold one verified spare per system for critical axes, and to review spare stock annually as part of the preventive maintenance cycle. For facilities with three or more ServoWire systems, a shared pool of two to three spare units typically provides adequate coverage while minimizing carrying cost. TOPNLMS can support scheduled replenishment orders with consistent lead times.
