ORMEC SAC-SW210/E Replacement Upgrade for ServoWire

Product Overview

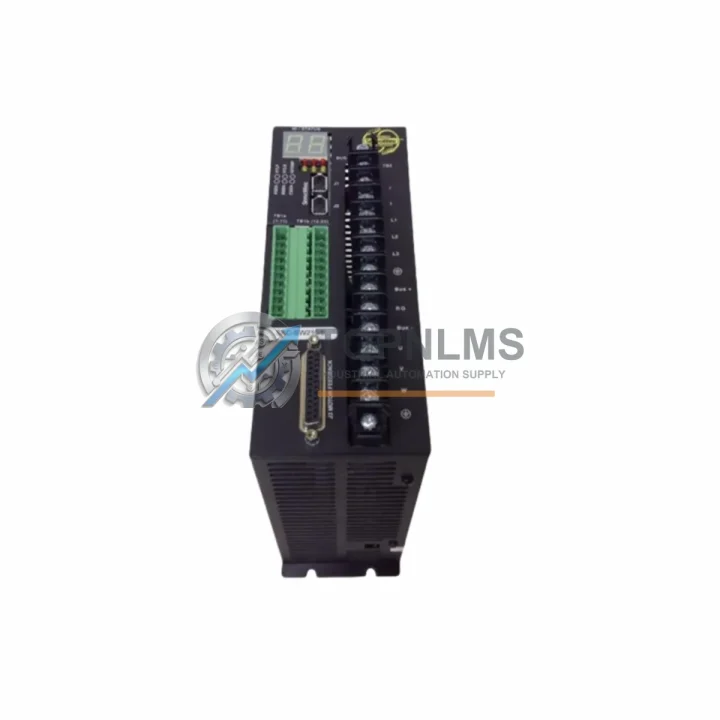

ORMEC SAC-SW210/E Replacement Upgrade for ServoWire — Smooth Transition, Zero Compromise

When a ServoWire-based motion control system goes down, every minute of unplanned downtime translates directly into production loss. The ORMEC SAC-SW210/E AC servo drive is a precision-engineered amplifier designed for the ORMEC ServoWire distributed servo architecture — and sourcing a verified replacement unit is the fastest path back to full operation. At TOPNLMS, we stock original ORMEC SAC-SW210/E drives, fully tested and ready to ship, so your maintenance team can execute a clean swap without redesigning the control cabinet or rewriting motion programs.

The SAC-SW210/E belongs to ORMEC’s SAC (ServoWire Amplifier Controller) family, which uses the proprietary ServoWire serial communication bus to coordinate multi-axis motion from a central ORMEC motion controller. This architecture was widely deployed in packaging machinery, semiconductor handling, precision assembly lines, and web-tension control systems throughout the 1990s and 2000s. Many of these installations remain in active production today, making reliable access to original replacement drives a critical supply chain priority.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SAC-SW210/E replacement rarely happens in isolation. The ServoWire bus connects multiple amplifier nodes back to a central ORMEC motion controller — typically an ORMEC PC-based controller or an ORMEC MMC (Multi-axis Motion Controller) — and the health of the entire motion network depends on every node and cable segment performing correctly. Before or during a drive replacement, experienced maintenance engineers routinely inspect the ServoWire bus cable and termination resistors, since a degraded cable can cause the new drive to fault immediately after installation, creating a false impression of a defective replacement unit.

The motor feedback loop is equally critical. The ORMEC-compatible servo motor encoder cable connecting the SAC-SW210/E to the servo motor should be inspected for continuity and shielding integrity. A damaged encoder cable is a common root cause of drive faults that are misdiagnosed as amplifier failures. If the motor itself is suspect, pairing the replacement drive with a verified ORMEC-compatible AC servo motor eliminates variables and accelerates commissioning.

On the power supply side, the DC bus capacitor bank and the AC line filter or EMC filter module upstream of the drive should be evaluated during any planned maintenance window. Aged capacitors and degraded line filters are frequent contributors to nuisance trips and premature drive failures in legacy ServoWire cabinets. Replacing the SAC-SW210/E while leaving a failing line filter in place simply transfers the fault to the new unit.

For multi-axis ServoWire systems, it is also advisable to audit the ORMEC SAC-SW series amplifiers on adjacent axes — such as the SAC-SW105/E or SAC-SW420/E — since drives of the same age and duty cycle tend to fail within similar timeframes. Proactive replacement of at-risk adjacent axes during a scheduled shutdown is far more cost-effective than responding to sequential unplanned failures. Similarly, the ORMEC I/O expansion modules and digital I/O terminal blocks within the same control cabinet should be inspected for loose terminals, oxidized contacts, and thermal stress damage.

If the application involves a human-machine interface (HMI) connected to the ORMEC controller for operator control and diagnostics, verifying HMI communication integrity after the drive swap is a standard commissioning step. In modernization projects where the ORMEC controller itself is being replaced, a signal isolator or protocol converter may be required to bridge the ServoWire bus to a contemporary EtherCAT, PROFIBUS, or EtherNet/IP motion network.

Retrofit Guidance FAQ

Q: Can I replace the SAC-SW210/E without modifying the wiring harness?
A: Yes. The SAC-SW210/E uses the same connector pinout as earlier SAC-SW series revisions. Power, motor, encoder, and ServoWire bus connections are direct drop-in. No wiring modifications are required in a like-for-like replacement.

Q: Do I need to reprogram the ORMEC controller after installing the replacement drive?
A: No controller reprogramming is required. The SAC-SW210/E node address is set via DIP switch on the drive itself, matching the address of the unit being replaced. The ORMEC motion controller recognizes the node automatically on power-up.

Q: Is the SAC-SW210/E compatible with both resolver and encoder feedback motors?
A: The SAC-SW210/E is designed for encoder feedback. If your application uses resolver-based servo motors, confirm the specific drive variant (some SAC-SW series drives support resolver input via an optional feedback module). Contact TOPNLMS with your motor nameplate data for compatibility verification before ordering.

Q: What if my system uses a mix of SAC-SW210/E and other SAC-SW amplifier ratings on the same ServoWire bus?
A: Mixed-rating ServoWire networks are standard in multi-axis ORMEC installations. Each amplifier node operates independently on the bus. Replacing a single SAC-SW210/E node does not affect the operation of adjacent SAC-SW105/E, SAC-SW315/E, or SAC-SW420/E nodes on the same network.

Warranty Assurance

Every ORMEC SAC-SW210/E unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, communication bus response check, and output stage inspection. Units that do not pass our pre-shipment test protocol are not offered for sale.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or repair support with a target response time of 1–3 business days. Our after-sales team is reachable directly via email and phone to coordinate return logistics, technical verification, and expedited replacement shipment. We understand that servo drive failures in production environments are time-critical, and our warranty process is designed to minimize the administrative burden on your maintenance team.

For customers managing multi-site or multi-machine fleets of ORMEC ServoWire systems, TOPNLMS offers volume procurement support, consignment stock arrangements, and advance replacement programs. Contact our sales team to discuss inventory planning tailored to your maintenance schedule and installed base.
