OPTO22 SNAP-AIMA-I Replacement Upgrade for SNAP PAC

Product Overview

OPTO22 SNAP-AIMA-I Replacement Upgrade for SNAP PAC: Seamless Migration from Legacy Analog I/O Systems

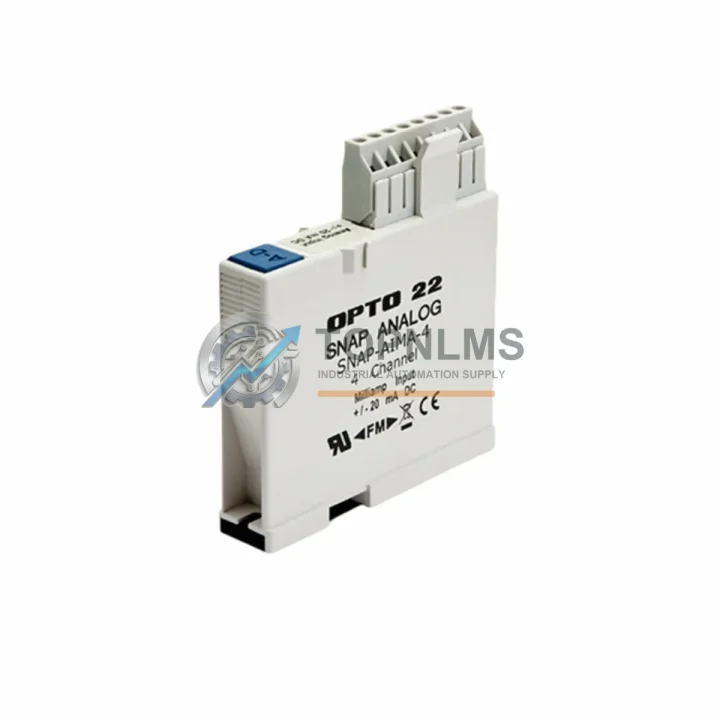

The OPTO22 SNAP-AIMA-I is a 4-channel analog current input module designed for the SNAP PAC System — one of the most widely deployed distributed control architectures in process automation, building management, and industrial monitoring applications. As legacy SNAP I/O racks age and original modules reach end-of-service life, facilities engineers and procurement teams are actively seeking verified replacement units that can be installed without reprogramming, rewiring, or reconfiguring the host controller. The SNAP-AIMA-I fulfills that requirement precisely: it slots directly into any standard SNAP mounting rack, interfaces with the SNAP PAC R-Series or S-Series brain via the existing backplane, and is immediately recognized by PAC Control or PAC Manager without firmware changes.

For sites running older SNAP-B3 or SNAP-B6 mounting racks alongside a SNAP PAC R1 or SNAP PAC S1 brain, the SNAP-AIMA-I integrates without mechanical modification. The module accepts 4–20 mA current loop signals across all four channels simultaneously, making it a direct functional equivalent to discontinued or damaged SNAP-AIMA units from earlier production runs. Engineers migrating from the original SNAP-AIMA (non-isolated variant) should verify channel-to-channel isolation requirements before substitution, as the SNAP-AIMA-I provides per-channel isolation that the base SNAP-AIMA does not — a meaningful upgrade for noisy industrial environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SNAP PAC analog I/O migration rarely involves a single module swap. In practice, field engineers replacing a failed or end-of-life SNAP-AIMA-I will simultaneously audit adjacent modules in the same rack. Common co-replacement items include the SNAP-AIMA-8 for applications requiring eight analog current input channels in a single slot, and the SNAP-AOVA for analog voltage output channels that share the same rack and backplane. Where the control system also handles digital signals, the SNAP-IDC5 discrete input module and SNAP-OAC5 AC output module are frequently replaced in the same maintenance window to standardize the rack’s module generation.

For sites where the SNAP PAC R1 or SNAP PAC S1 brain itself is approaching end-of-service, the SNAP-AIMA-I remains fully compatible with the replacement SNAP PAC EB1 or SNAP PAC EB2 Ethernet brain, allowing a phased migration strategy: replace the I/O modules first, validate signal integrity, then upgrade the brain without touching field wiring. This approach minimizes production downtime and reduces the risk of commissioning errors.

Communication infrastructure is equally important during migration. Sites using the SNAP PAC system over Ethernet will typically retain their existing network topology, but those upgrading from serial-based legacy controllers may need to introduce a SNAP-SCM-232 or SNAP-SCM-485 serial communication module to bridge legacy field devices during the transition period. Similarly, if the control cabinet includes a SNAP-PS5 or SNAP-PS24 power supply module, verifying its output capacity against the updated rack load — particularly when adding isolated modules like the SNAP-AIMA-I — is a standard commissioning step.

For applications where signal conditioning is required between field transmitters and the SNAP rack, inline signal isolators or loop-powered signal conditioners are commonly installed at the terminal block level. These components do not affect SNAP-AIMA-I compatibility but should be documented in the as-built drawings during the retrofit. HMI integration, whether via a Weintek, Proface, or third-party panel running Modbus TCP or OPC-UA over the same Ethernet network as the SNAP PAC brain, requires no changes when the SNAP-AIMA-I replaces a same-generation analog input module.

Retrofit Guidance FAQ

Q: Do I need to reconfigure PAC Control after installing the SNAP-AIMA-I?
A: No. The SNAP-AIMA-I is recognized automatically by PAC Control and PAC Manager when installed in a compatible SNAP rack. Existing I/O point configurations, scaling, and PID loop references remain valid without modification, provided the replacement module occupies the same rack slot as the original.

Q: Is the field wiring compatible with the SNAP-AIMA-I terminal block?
A: Yes. The SNAP-AIMA-I uses the standard SNAP removable terminal block. Existing 4–20 mA field wiring can be transferred directly from the outgoing module’s terminal block to the replacement unit. No re-termination or cable extension is required in standard installations.

Q: Can the SNAP-AIMA-I be installed in older SNAP-B3 or SNAP-B6 racks?
A: Yes. The SNAP-AIMA-I is mechanically and electrically compatible with all standard SNAP mounting racks, including the SNAP-B3 (3-position), SNAP-B6 (6-position), and SNAP-B10W (10-position wireless-capable) variants. No rack modification is required.

Q: What is the communication protocol between the SNAP-AIMA-I and the PAC brain?
A: The SNAP-AIMA-I communicates via the SNAP proprietary backplane protocol. No Ethernet, Modbus, or PROFIBUS configuration is required at the module level. The PAC brain handles all protocol translation to the supervisory network.

Q: Does the per-channel isolation on the SNAP-AIMA-I affect installation in mixed-signal racks?
A: No. The per-channel isolation is an internal feature that prevents ground loops between field devices. It does not affect rack slot assignment, backplane communication, or adjacent module operation. Mixed racks containing digital and analog modules continue to function normally.

Q: What if my original module is a SNAP-AIMA (non-isolated) — is the SNAP-AIMA-I a direct replacement?
A: Functionally yes. Both modules accept 4–20 mA signals on four channels and use the same rack and backplane interface. The SNAP-AIMA-I adds per-channel isolation, which is a passive improvement. No software or wiring changes are required for the substitution.

Warranty Assurance

Every SNAP-AIMA-I unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including backplane interface continuity, analog channel signal response, and terminal block integrity checks. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial acknowledgment. Replacement logistics are coordinated from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and destination.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices upon request. Bulk orders for MRO stocking programs are supported with lead-time commitments and reserved inventory arrangements.

Contact our technical sales team before purchase if you require cross-reference confirmation, compatibility verification for a specific rack or brain revision, or expedited shipping arrangements for emergency plant shutdowns.
