OPTEK CONTROL-4000-C4221-EX-EN-D Ruggedized Safety Module

Product Overview

OPTEK CONTROL-4000-C4221-EX-EN-D Ruggedized Safety Module: Industrial Resilience in Hazardous Environments

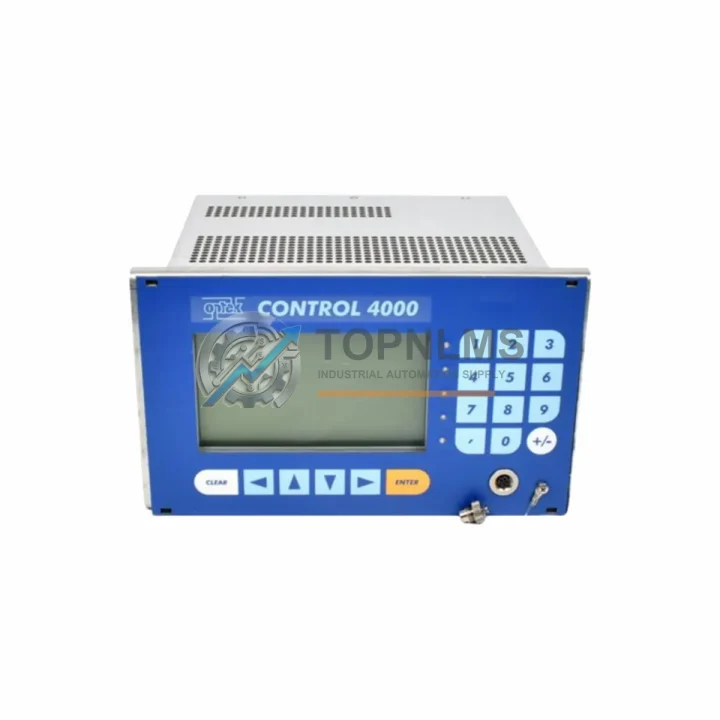

The OPTEK CONTROL-4000-C4221-EX-EN-D-C4000-EX is a high-performance photometric safety converter engineered for continuous, reliable operation in the most demanding industrial environments. As part of the OPTEK C4000-EX series, this unit is purpose-built for hazardous and explosive atmospheres — delivering certified safety performance where standard equipment cannot operate. Whether deployed in oil and gas processing, chemical plants, mining operations, or heavy manufacturing, this module provides the rugged, fail-safe photometric detection that critical infrastructure demands.

Designed to EN safety standards and carrying full Ex-zone certification, the CONTROL-4000-C4221-EX-EN-D integrates seamlessly into safety-rated control architectures. Its onboard display enables real-time diagnostics and status monitoring without requiring additional HMI hardware, reducing installation complexity and improving response time during field maintenance. The unit is engineered to withstand high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and strong electromagnetic interference — conditions routinely encountered in continuous production lines and heavy industrial sites.

Rugged Specifications Table

Comprehensive Protection Solutions

In hazardous-area installations, the CONTROL-4000-C4221-EX-EN-D-C4000-EX rarely operates in isolation. It is typically integrated into a broader safety and control architecture that must collectively meet zone-rated requirements. The C4000-EX transmitter and receiver heads are the natural pairing — together they form a complete Ex-certified safety light curtain system capable of personnel and object detection in explosive atmospheres. The photometric converter processes the optical signals from these field devices and outputs clean, safety-rated switching signals to the upstream control layer.

At the safety logic level, this converter interfaces with safety relay modules such as the PILZ PNOZ series or equivalent EN 954-1 / ISO 13849-compliant safety relays, which monitor the OSSD outputs and trigger machine stop functions. In more complex architectures, the output feeds directly into a safety PLC — for example, a Siemens S7-300F or S7-1500F with F-CPU and F-I/O modules — where the safety program manages zone interlocking, muting logic, and restart conditions.

Power supply integrity is critical in Ex-rated environments. The CONTROL-4000-C4221-EX-EN-D requires a stable, regulated 24 VDC supply, and installations typically use Ex-rated or barrier-isolated power supplies — such as a Phoenix Contact QUINT-PS or Pepperl+Fuchs Zener barrier module — to ensure galvanic isolation between the hazardous zone and the safe-area control cabinet. Surge protection devices and EMC filters are commonly installed upstream to protect the converter from transient voltages generated by variable frequency drives, large motor starters, or welding equipment operating nearby.

Terminal blocks and field wiring accessories within the control cabinet must also meet Ex requirements. Weidmüller or Phoenix Contact Ex-rated terminal blocks are commonly used to terminate the field cables from the C4000-EX sensor heads, ensuring that the wiring interface maintains zone compliance. Cable glands with appropriate IP and Ex ratings seal cable entries into the junction box or control cabinet, preventing ingress of dust, moisture, and flammable gases.

For installations requiring remote diagnostics or integration with plant-level SCADA systems, a communication gateway or fieldbus coupler — such as a Profibus DP or Profinet I/O module — can be added to the safety PLC rack, allowing the safety status of the C4000-EX system to be monitored from the control room without compromising the integrity of the Ex-rated field installation.

Application in Critical Infrastructure

The OPTEK CONTROL-4000-C4221-EX-EN-D-C4000-EX is deployed across a wide range of critical industrial sectors where personnel safety and process continuity are non-negotiable.

Oil & Gas: In upstream and downstream processing facilities, Ex-rated safety light curtain systems protect operators working near pressurized vessels, pump stations, and compressor halls. The C4000-EX converter ensures that any intrusion into a defined hazard zone immediately triggers a safe-state output, isolating the relevant process section without requiring manual intervention.

Mining & Mineral Processing: Underground and surface mining operations expose control equipment to extreme dust concentrations, mechanical shock, and wide temperature swings. The rugged construction of the CONTROL-4000-C4221-EX-EN-D allows it to maintain reliable photometric detection even in coal dust or silica-laden atmospheres, where standard safety sensors would fail prematurely.

Power Generation & Utilities: In turbine halls, switchgear rooms, and substation environments, electromagnetic interference from high-voltage switching events can disrupt sensitive electronics. The EMI-hardened design of the C4000-EX series ensures that safety detection remains stable and unaffected by these transient events, maintaining the integrity of the safety function throughout the plant’s operational cycle.

Water & Wastewater Treatment: Pump stations and chemical dosing areas in water treatment plants often involve corrosive atmospheres and high humidity. The sealed, Ex-rated enclosure of the CONTROL-4000-C4221-EX-EN-D protects internal electronics from moisture ingress and chemical vapors, ensuring long service life with minimal maintenance intervention.

Metallurgy & Steel Production: Continuous casting lines, rolling mills, and furnace areas subject control equipment to intense radiant heat, vibration, and airborne metal particles. The C4000-EX photometric converter’s robust design tolerates these conditions, providing consistent safety zone monitoring across multi-shift, 24/7 production schedules.
