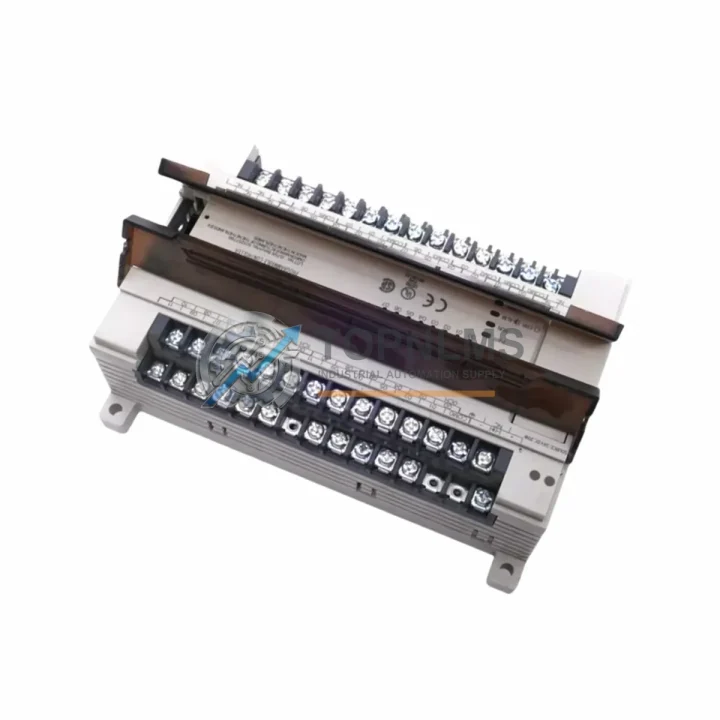

OMRON TPM1A-40CDT-D-V1 Replacement for CPM1A Series

Product Overview

OMRON TPM1A-40CDT-D-V1 Replacement for CPM1A Series: Seamless Migration & Upgrade Solution

The OMRON TPM1A-40CDT-D-V1 is a high-performance CPU unit within the CPM1A Series compact PLC platform, designed for discrete control applications in manufacturing, packaging, material handling, and process automation. As legacy CPM1A installations age and original units reach end-of-life or become increasingly difficult to source, the TPM1A-40CDT-D-V1 serves as the authoritative replacement and upgrade path — preserving existing wiring infrastructure, I/O architecture, and ladder logic programs while delivering reliable, field-proven performance.

This unit provides 40 I/O points (24 DC inputs / 16 transistor outputs), powered by a 24 VDC supply, and communicates via the OMRON Host Link (C-mode) and Peripheral Bus protocols. Its compact DIN-rail form factor fits directly into existing CPM1A control cabinet layouts without requiring panel modifications, making it the preferred choice for maintenance engineers seeking to minimize retrofit scope and downtime exposure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CPM1A system migration involves more than swapping the CPU unit. In most field installations, the TPM1A-40CDT-D-V1 is deployed alongside a range of companion components that must be verified or replaced as part of the upgrade scope.

For I/O expansion, the CPM1A-20EDT1 and CPM1A-8ED expansion I/O units connect directly to the TPM1A-40CDT-D-V1 via the side expansion bus connector, preserving the existing I/O map without requiring program address remapping. Engineers migrating from older CPM1A configurations with relay output expansion modules such as the CPM1A-20EDR1 should verify output type compatibility before reuse.

Communication infrastructure is equally critical. The CPM1A-CIF01 RS-232C adapter and CPM1A-CIF11 RS-422A/485 adapter remain fully compatible with the TPM1A-40CDT-D-V1 peripheral port, enabling continued SCADA, HMI, and host computer connectivity without protocol conversion. For installations using OMRON NT-series HMI panels — such as the NT31C or NT631C — the existing NT Link or Host Link wiring can be retained without modification.

Power supply integrity is a common failure point in aging control cabinets. When replacing the CPU unit, it is advisable to inspect or replace the 24 VDC panel power supply — units such as the S8VS-06024 OMRON Switch Mode Power Supply are commonly paired with CPM1A systems and provide stable regulated DC power within the same cabinet footprint.

For programming and commissioning, the CS1W-CN226 or XW2Z-200S-CV peripheral port programming cables are required to upload or download ladder logic programs via CX-Programmer. Retaining the original program file and performing a full I/O check after installation is standard practice before returning the system to production.

In applications where signal isolation is required between field devices and the PLC input circuit — particularly in environments with high electrical noise from variable frequency drives or servo amplifiers — inline signal isolators or surge suppressors should be installed on the input wiring harness to protect the TPM1A-40CDT-D-V1 input circuitry.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing with TPM1A-40CDT-D-V1?
Yes. The TPM1A-40CDT-D-V1 uses the same terminal block layout and I/O pinout as the original CPM1A 40-point CPU units. No rewiring is required for standard installations. Verify terminal torque specifications and inspect wire insulation condition before reconnection.

Q: Is my existing CX-Programmer ladder logic program compatible?
Yes. Programs written for CPM1A series CPUs are fully compatible with the TPM1A-40CDT-D-V1. Upload the existing program via the peripheral port using a compatible programming cable, verify I/O address assignments, and perform a full functional test before resuming production.

Q: What communication protocols does the TPM1A-40CDT-D-V1 support?
The unit supports OMRON Host Link (C-mode) via the RS-232C peripheral port and can be extended to RS-422A/485 multi-drop networks using the CPM1A-CIF11 adapter. It is compatible with NT Link for direct HMI connectivity and supports standard FINS command communication for host computer integration.

Q: Will the TPM1A-40CDT-D-V1 fit in my existing control cabinet without modification?
In the vast majority of CPM1A installations, yes. The unit mounts on standard 35 mm DIN rail and occupies the same physical footprint as the original CPM1A 40-point CPU. Verify clearance for the expansion bus connector and peripheral port cable routing before final installation.

Q: How do I handle the transition from a relay output CPM1A to the transistor output TPM1A-40CDT-D-V1?
The TPM1A-40CDT-D-V1 provides NPN transistor (sink) outputs rated at 24 VDC / 0.3 A per point. If the legacy system used relay output modules to drive AC loads or high-current DC loads, intermediate relay modules or solid-state relays must be installed on the output wiring to maintain load compatibility. Review the output load specifications for each output point before commissioning.

Q: What is the recommended procedure for minimizing downtime during replacement?
Pre-stage the TPM1A-40CDT-D-V1 with the verified program loaded and I/O configuration confirmed before the maintenance window. Perform a controlled shutdown of the existing system, swap the CPU unit, reconnect field wiring, restore power, and execute a full I/O verification cycle. Typical swap time for a prepared technician is under 30 minutes.

Warranty Assurance

Every TPM1A-40CDT-D-V1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional outgoing inspection including power-on verification, I/O point continuity check, and communication port test to confirm operational integrity.

In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support with priority processing for production-critical orders. Our technical team is available to assist with installation questions, compatibility verification, and commissioning guidance throughout the warranty period and beyond.

Orders are processed and dispatched from Xiamen, China, with international express shipping available to minimize lead time for urgent replacement requirements. Stocking quantities are maintained to support immediate dispatch for standard orders. For large-volume procurement or project-based requirements, please contact our sales team directly to discuss availability, lead time, and pricing.
