OMRON G9D-301 Replacement/Upgrade Solution for G9D Series

Product Overview

OMRON G9D-301 Replacement/Upgrade Solution for G9D Series: Smooth Transition from Legacy Safety Systems

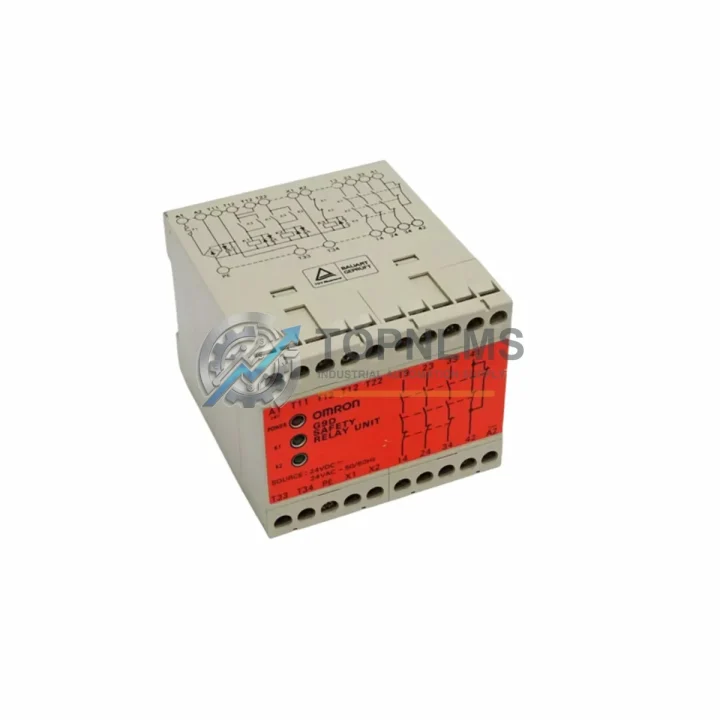

The OMRON G9D-301 is a dual-channel safety relay module engineered for critical machine safety applications, including emergency stop (E-stop) circuits, light curtain interfaces, safety mat monitoring, and two-hand control systems. As industrial facilities worldwide accelerate the retirement of aging safety architectures, the G9D-301 has become the go-to replacement and upgrade solution for legacy OMRON G9S, G9SA, and G9SB series safety relays, as well as third-party equivalents from Pilz, Sick, and Schmersal that have reached end-of-life or are no longer supported under current IEC 62061 and ISO 13849-1 safety standards.

Whether your plant is migrating from a standalone relay-based safety circuit to a more integrated safety architecture, or simply replacing a failed or obsolete G9D-series module in an existing control cabinet, the G9D-301 delivers a direct, low-disruption upgrade path. Its compact DIN-rail form factor, standardized terminal layout, and broad input voltage compatibility (24 VDC) make it suitable for retrofitting into existing control panels without requiring significant rewiring or cabinet modifications.

For facilities running OMRON CJ2M, CS1D, or NX-series safety PLCs, the G9D-301 integrates cleanly into the broader OMRON safety ecosystem. It can be used alongside OMRON NE1A-series Safety Network Controllers and communicates status signals that are compatible with DeviceNet Safety and EtherNet/IP Safety protocols, enabling centralized safety diagnostics without replacing the entire safety architecture. Engineers migrating from hardwired relay logic to a hybrid safety PLC topology will find the G9D-301 particularly valuable as a bridge component during phased modernization projects.

In terms of wiring compatibility, the G9D-301 maintains the same dual-channel input configuration as its predecessors in the G9D family, accepting normally-closed (NC) contact inputs from E-stop pushbuttons, rope-pull switches, and safety gate interlock switches. The output relay contacts are rated for safety-critical loads, and the module’s internal cross-fault detection logic meets the requirements for Category 3 and Category 4 safety functions as defined by ISO 13849-1. This means existing field wiring from legacy G9D or G9SA installations can typically be reused without modification, significantly reducing retrofit labor costs and minimizing production downtime during changeover.

Physical installation is equally straightforward. The G9D-301 mounts on standard 35 mm DIN rail and occupies the same panel footprint as the G9D-301’s predecessor models, making it a drop-in mechanical replacement in most control cabinet configurations. For applications where cabinet space is constrained — particularly in older machine tool panels or compact packaging line control enclosures — this dimensional compatibility is a critical advantage over alternative safety relay brands that may require panel cutout modifications or additional mounting hardware.

Power supply requirements are met by standard 24 VDC OMRON S8VS or S8VK-series DIN-rail power supply modules, which are commonly already present in G9D-series installations. No additional power conditioning or isolation is required in most retrofit scenarios, further simplifying the upgrade process.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful G9D-301 retrofit rarely involves a single component. In practice, modernization projects that incorporate the G9D-301 typically also address adjacent components in the same safety circuit or control cabinet. For E-stop circuit upgrades, engineers frequently pair the G9D-301 with OMRON A22E-series emergency stop pushbutton assemblies, which provide the dual-channel NC contact inputs required by the relay’s input stage. Where light curtain integration is involved, OMRON F3SG-R series safety light curtains are a natural complement, offering OSSD (Output Signal Switching Device) outputs that interface directly with the G9D-301’s input terminals without additional signal conditioning.

For installations migrating from older hardwired relay panels to a more structured safety architecture, OMRON NE1A-SCPU01 Safety Network Controllers are commonly deployed alongside the G9D-301 to provide centralized safety logic management over DeviceNet Safety networks. In larger machine lines where multiple safety zones must be coordinated, OMRON G9SP-series configurable safety controllers offer a scalable alternative that can supervise multiple G9D-301 modules across a single safety network segment.

Terminal wiring for the G9D-301 retrofit is typically handled using OMRON XW5T-series push-in terminal blocks or equivalent Phoenix Contact PTFIX distribution blocks, which simplify multi-conductor connections in compact cabinet layouts. Where signal isolation between the safety relay output and downstream PLC input cards is required — particularly in older CJ1M or CS1-series PLC installations — OMRON G3RV-series solid-state relay modules or dedicated signal isolators are used to protect the PLC’s I/O modules from inductive load transients.

Programming cable connections for safety PLC configuration during commissioning are typically made using OMRON CS1W-CN226 or USB-CIF02 programming cables, which allow engineers to upload and verify safety programs on-site without disrupting the broader control system. For HMI integration, OMRON NS-series or NB-series touch panels provide real-time safety status visualization, displaying G9D-301 relay state, fault codes, and reset prompts directly on the operator interface.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a G9SA-301 with the G9D-301?
A: Yes. The G9D-301 uses the same dual-channel NC input configuration as the G9SA-301. In most installations, existing field wiring from E-stop buttons, rope-pull switches, and safety gate interlocks can be reconnected directly to the G9D-301 terminals without modification. Always verify terminal labeling against the G9D-301 wiring diagram before energizing.

Q: Is the G9D-301 compatible with EtherNet/IP Safety networks?
A: The G9D-301 supports hardwired safety output contacts and can provide status signals compatible with DeviceNet Safety and EtherNet/IP Safety architectures when used in conjunction with an OMRON NE1A or G9SP safety controller. Direct EtherNet/IP Safety node functionality requires the safety controller as an intermediary.

Q: Does the G9D-301 fit in the same panel space as the G9D or G9SB series?
A: Yes. The G9D-301 shares the same DIN-rail mounting footprint as the G9D and G9SB series modules. No panel cutout modifications or additional mounting hardware are required for a direct mechanical replacement.

Q: What safety category does the G9D-301 support?
A: The G9D-301 supports safety functions up to Category 4 / PLe as defined by ISO 13849-1, and SIL 3 as defined by IEC 62061, making it suitable for the highest-risk machine safety applications including press brakes, robotic cells, and automated guided vehicle (AGV) systems.

Q: Can the G9D-301 be used with third-party safety light curtains?
A: Yes. The G9D-301 accepts standard OSSD outputs from safety light curtains compliant with IEC 61496, including models from Sick, Keyence, Banner, and Schmersal, in addition to OMRON F3SG-R series curtains.

Q: What is the commissioning procedure after installation?
A: After wiring, perform a functional test of all safety input channels (E-stop, light curtain, gate interlock) by actuating each device and verifying that the G9D-301 de-energizes its output contacts correctly. Verify the manual or automatic reset function per the application’s risk assessment. Document all test results per ISO 13849-2 validation requirements.

Warranty Assurance

Every OMRON G9D-301 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including input channel response testing, output contact continuity checks, and cross-fault detection validation. Units that do not meet OMRON’s original performance specifications are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, minimizing production downtime for our customers. Our after-sales support team is available to assist with installation troubleshooting, wiring verification, and compatibility questions throughout the warranty period.

For procurement teams managing spare parts inventories, TOPNLMS maintains stock of G9D-301 units and related G9D-series components to support both planned maintenance schedules and emergency breakdown replacements. Volume pricing and blanket order arrangements are available for OEM customers and system integrators.

All units are shipped with original OMRON packaging, product documentation, and a TOPNLMS inspection certificate. Export documentation including commercial invoices, packing lists, and certificates of origin are provided for international shipments.
