OMRON CPM2C-20CDT1C-D Replacement Solution for CPM2C Series: Seamless Migration & Smooth Transition

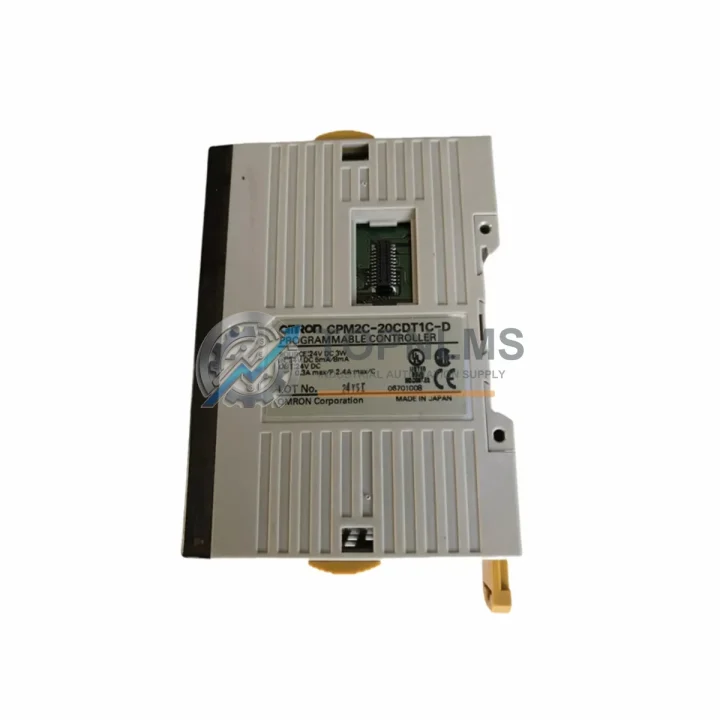

The OMRON CPM2C-20CDT1C-D is a compact, high-performance programmable logic controller from OMRON’s CPM2C Series, designed for space-constrained control cabinet installations where reliable I/O density and transistor output performance are critical. As legacy CPM1, CPM1A, and CPM2A systems reach end-of-life or become increasingly difficult to source, industrial facilities are actively migrating to the CPM2C platform to preserve program logic, reduce rewiring costs, and extend the operational lifespan of their control systems.

This product page is specifically structured to support engineers and procurement teams planning a controlled migration from discontinued or aging OMRON compact PLC models to the CPM2C-20CDT1C-D, with full attention to wiring compatibility, communication protocol continuity, power supply requirements, and physical installation constraints.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy OMRON compact PLC to the CPM2C-20CDT1C-D typically involves more than a one-for-one controller swap. In practice, the upgrade process touches multiple layers of the control system architecture, and selecting compatible peripheral components upfront dramatically reduces commissioning time and the risk of unplanned downtime.

For facilities currently running CPM1A or CPM2A controllers with expansion I/O, the transition to the CPM2C platform requires replacing legacy expansion units with CPM2C-compatible I/O expansion modules such as the CPM2C-8EDC (8-point DC I/O expansion) or the CPM2C-16EDTC (16-point transistor expansion). These modules connect directly to the CPM2C-20CDT1C-D’s expansion bus and restore the original I/O count without additional wiring harnesses.

Communication continuity is a key concern during any PLC migration. The CPM2C-20CDT1C-D retains the standard RS-232C peripheral port, meaning existing CS1W-CN226 or XW2Z-series programming cables used with CX-Programmer remain fully compatible. Engineers can upload, verify, and re-download ladder programs without purchasing new programming adapters, significantly reducing migration overhead.

For installations where the legacy system communicated over a DeviceNet or CompoBus/S network, the CPM2C-CIF01 RS-232C adapter or the CPM2C-CIF11 RS-422A/485 adapter can be fitted to extend the CPM2C-20CDT1C-D’s communication reach to match the original network topology. This is particularly relevant in multi-drop configurations where the PLC serves as a slave node on a larger OMRON SYSMAC network.

Power supply compatibility deserves careful attention. The CPM2C-20CDT1C-D operates exclusively on DC 24V, so facilities migrating from AC-powered CPM1A units (100–240V AC models) will need to install a dedicated S8VS-series or S8VK-series OMRON switching power supply within the control cabinet. These compact DIN-rail-mounted PSUs are well-suited to the space constraints typical of CPM2C installations and provide stable regulated DC output with built-in overload protection.

Where analog signal conditioning is required alongside the digital I/O of the CPM2C-20CDT1C-D, engineers frequently pair the controller with CPM2C-MAD11 analog I/O expansion units or external signal isolators and transmitters to interface with 4–20 mA process sensors. This combination preserves the analog measurement capability of the original system without requiring a full DCS-level upgrade.

For HMI continuity, the CPM2C-20CDT1C-D communicates natively with OMRON NB-series or NS-series HMI panels via the RS-232C port using the Host Link (FINS) protocol. Existing HMI screen projects developed for CPM1A or CPM2A systems can typically be reused with minor address mapping adjustments, preserving the operator interface investment made in the original system design.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing a CPM1A-20CDR-A with the CPM2C-20CDT1C-D?
A: Input wiring is generally compatible since both units use DC 24V NPN-type inputs with the same terminal pitch. Output wiring requires verification — the CPM2C-20CDT1C-D uses transistor (NPN sink) outputs, whereas the CPM1A-20CDR-A uses relay outputs. Inductive loads previously driven by relay contacts will require flyback diode protection or an interposing relay when connected to transistor outputs.

Q: Will my existing CX-Programmer ladder program run on the CPM2C-20CDT1C-D without modification?
A: In most cases, yes. CX-Programmer supports both CPM2A and CPM2C device types, and ladder logic using standard instructions (LD, OUT, TIM, CNT, MOV, etc.) transfers directly. Special function blocks or high-speed counter configurations may require re-parameterization to match the CPM2C-20CDT1C-D’s specific counter input assignments.

Q: How do I handle the physical size difference when retrofitting into an existing control cabinet?
A: The CPM2C-20CDT1C-D has a compact profile optimized for DIN rail mounting. In most standard 35mm DIN rail cabinets, the unit fits within the same horizontal space as a 20-point CPM1A or CPM2A unit. Verify the depth clearance (minimum 90mm recommended behind the DIN rail) and ensure adequate ventilation spacing above and below the unit per OMRON installation guidelines.

Q: What communication protocol does the CPM2C-20CDT1C-D support for SCADA integration?
A: The unit supports OMRON Host Link (FINS over RS-232C) natively. For Modbus RTU or Ethernet/IP integration, an external protocol gateway or communication adapter is required. The CPM2C-CIF01 adapter enables RS-232C extension, while third-party gateways can bridge to Modbus TCP or EtherNet/IP for SCADA connectivity.

Q: Can the CPM2C-20CDT1C-D replace a CPM2C-20CDT-D directly?
A: The CPM2C-20CDT1C-D and CPM2C-20CDT-D share the same I/O count and form factor. The key difference is the output configuration suffix — verify the transistor output type (NPN vs PNP) matches your field device requirements before substitution.

Warranty Assurance

Every OMRON CPM2C-20CDT1C-D unit supplied by TOPNLMS is backed by a 12-month replacement warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, I/O point continuity check, and communication port validation to ensure the module arrives ready for immediate installation.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides direct replacement support with priority processing. Our after-sales response team is reachable via email and phone to assist with fault diagnosis, return authorization, and expedited replacement shipment. We maintain bonded stock of CPM2C-series modules to minimize lead times for warranty replacements.

For procurement teams managing planned maintenance schedules or emergency breakdown sourcing, TOPNLMS offers consolidated invoicing, packing list documentation, and export-compliant shipping from Xiamen, China to global destinations. Standard lead time for in-stock units is 3–5 business days with DHL Express, FedEx International Priority, or sea freight options available depending on order volume and urgency.

All units are shipped in original or equivalent anti-static protective packaging with individual serial number documentation to support traceability requirements in regulated industries including automotive, pharmaceutical, food processing, and utilities.
