OMRON CPM1A-40CDT-D-V1 Original Industrial Spare CPM1A Compatible

Product Overview

OMRON CPM1A-40CDT-D-V1 Original Industrial Spare: System Stability & Maintenance Value

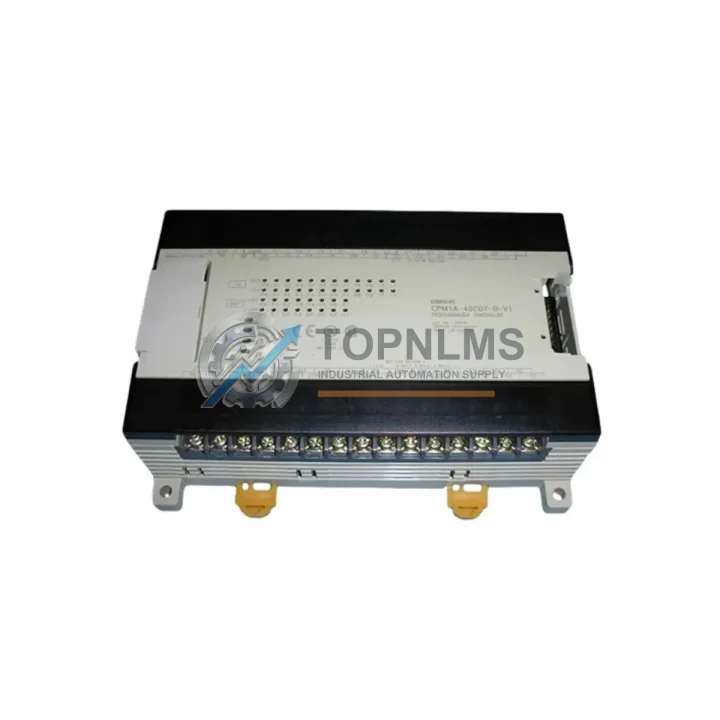

In modern manufacturing and process automation environments, the reliability of a programmable logic controller is the backbone of uninterrupted production. The OMRON CPM1A-40CDT-D-V1 is a 40-point compact PLC unit from OMRON’s proven CPM1A series, featuring DC power input and transistor (NPN) output architecture. Designed for high-cycle discrete control applications, this controller is widely deployed across packaging lines, conveyor systems, injection molding machines, textile equipment, and general-purpose factory automation panels throughout Asia, Europe, and the Americas.

When a CPM1A-40CDT-D-V1 fails or reaches end-of-service life, every minute of unplanned downtime translates directly into production loss. Sourcing a verified original replacement unit — tested, serialized, and backed by a documented warranty — is the single most effective action a maintenance team can take to restore operations quickly and confidently. TOPNLMS stocks this unit as a ready-to-ship original spare, pre-tested before dispatch, with a 12-month quality warranty covering manufacturing defects and functional failure under normal operating conditions.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a PLC failure rarely occurs in isolation. The CPM1A-40CDT-D-V1 sits at the center of a control cabinet ecosystem, and a thorough preventive maintenance inspection should extend beyond the CPU unit itself. When scheduling a planned shutdown or responding to an unplanned fault, the following components in the same control circuit deserve simultaneous inspection and, where appropriate, proactive replacement.

The CPM1A-MAD01 analog I/O expansion unit is frequently paired with the CPM1A-40CDT-D-V1 in process control applications where analog signals from sensors or actuators must be read or written. Degraded analog modules are a common source of intermittent faults that are misdiagnosed as CPU errors. Similarly, CPM1A-8ET transistor output expansion units share the same output driver architecture and should be inspected for output point failures when the main CPU is being serviced.

The CPM1A power supply section — whether integrated or via an external 24VDC rail supply such as the S8VS series — should be load-tested during any CPM1A maintenance window. Voltage sag under load is a leading cause of PLC resets and memory corruption. Alongside the power supply, inspect the terminal blocks and wiring connectors on the I/O bus: loose or oxidized terminals on input circuits are a frequent source of false input signals that trigger nuisance faults.

For facilities running multiple CPM1A units networked via OMRON’s CompoBus/S (SRT2 series) or NT-series HMI panels, the communication cables and RS-232C adapters (such as the CS1W-CN226 or CIF01) should be checked for continuity and shielding integrity. A degraded communication link can cause the CPU to enter error mode even when the logic itself is sound.

Maintenance planners should also review the status of CPM1A-TS001/TS002 temperature sensor units if the application involves thermal monitoring. These units age in parallel with the CPU and are often overlooked until a temperature alarm fails to trigger. Finally, consider stocking a CPM1A-8ED digital input expansion unit as a bench spare — input modules absorb field-level electrical noise and are statistically more likely to fail before the CPU in harsh environments.

A complete cabinet inspection checklist for CPM1A-based panels should include: CPU unit, expansion I/O modules, power supply rail, terminal blocks, communication adapters, HMI connection cables, and any relay output modules (such as the G6B or G2R series relay modules) driven by the PLC’s transistor outputs. Addressing all of these during a single planned maintenance window dramatically reduces the probability of a secondary failure within the next 12–18 months.

Strategic Replacement Solutions

The CPM1A-40CDT-D-V1 has been in service in many facilities for over a decade. OMRON has transitioned its compact PLC lineup toward the CP1E and CP1L series, meaning that new CPM1A units are increasingly sourced through specialist industrial spare parts distributors rather than standard automation channels. This supply dynamic makes proactive inventory management critical for any facility still operating CPM1A-based control systems.

A direct like-for-like replacement with an original CPM1A-40CDT-D-V1 is always the lowest-risk path: no program modification, no I/O rewiring, no re-commissioning of expansion modules. The unit slots into the existing DIN rail position, accepts the same 24VDC supply, and communicates with existing HMI and SCADA systems without protocol changes. This is particularly valuable in regulated industries — food processing, pharmaceutical packaging, and automotive assembly — where any control system change may trigger a revalidation requirement.

For facilities planning a longer-term migration to CP1E or CP1L platforms, maintaining a buffer stock of CPM1A-40CDT-D-V1 units provides the operational runway needed to plan and execute a controlled migration without emergency pressure. A recommended buffer for high-criticality lines is two units per control cabinet, with one unit kept in a sealed anti-static bag in the spare parts room and one unit installed as the active controller.

TOPNLMS sources CPM1A-40CDT-D-V1 units directly from verified supply channels, performs incoming inspection and functional testing on each unit, and ships with full documentation including test records and warranty certificate. Lead time from order confirmation to dispatch is typically 1–3 business days for in-stock units.

Support FAQ

Q1: Is this unit an original OMRON product or a compatible substitute?
This is an original OMRON CPM1A-40CDT-D-V1 unit — not a clone, compatible, or remanufactured substitute. Each unit is sourced from verified supply channels and undergoes incoming inspection before dispatch. Original units ensure full compatibility with CPM1A expansion modules, OMRON programming software (CX-Programmer), and existing field wiring without modification.

Q2: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions (within specified voltage, temperature, and load parameters). If a unit fails within the warranty period, contact TOPNLMS at [email protected] with your order number and a description of the fault. We will arrange return shipping and dispatch a replacement unit upon verification.

Q3: How do I verify compatibility before installation?
Confirm that your application requires a 40-point DC-input, transistor (NPN) output CPM1A CPU. Check the existing unit’s label for the model number CPM1A-40CDT-D-V1. Verify your power supply provides stable 24VDC within the specified tolerance. If you are replacing a unit mid-program, back up the existing program via CX-Programmer before removal. The replacement unit will accept the same program upload without modification.

Q4: Can I order multiple units for inventory stocking, and what is the lead time?
Yes — TOPNLMS supports bulk and multi-unit orders for spare parts inventory programs. In-stock units ship within 1–3 business days. For larger quantities or scheduled delivery programs, contact us directly at [email protected] or +86 18359293191 to discuss availability and pricing. We recommend maintaining at least one buffer unit per active CPM1A-based control cabinet to eliminate emergency sourcing delays.
