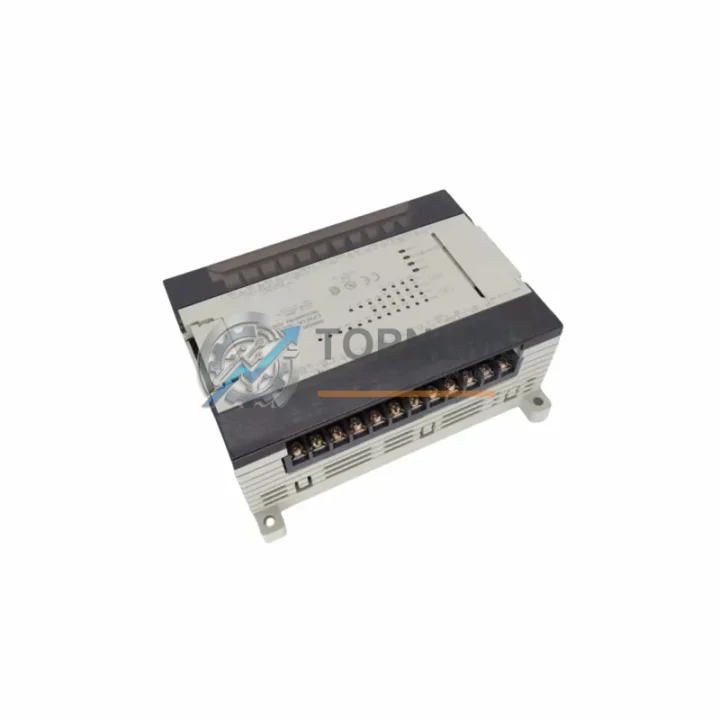

OMRON CPM1A-30CDT-D-V1 Ruggedized NPN Output Module

Product Overview

OMRON CPM1A-30CDT-D-V1 Ruggedized NPN Output Module: Industrial Resilience for Harsh Environments

The OMRON CPM1A-30CDT-D-V1 is a high-performance compact programmable logic controller engineered for continuous, reliable operation in the most demanding industrial environments. Featuring 30 I/O points with NPN transistor output architecture, this unit is purpose-built for applications where uptime is non-negotiable — from high-temperature foundry floors and dust-laden mining galleries to vibration-intensive heavy press lines and moisture-rich water treatment facilities.

As part of OMRON’s proven CPM1A Series, the CPM1A-30CDT-D-V1 delivers the processing speed, I/O density, and environmental tolerance that industrial engineers and procurement specialists demand. Whether you are replacing a failed controller on a critical production line or building redundancy into a new control cabinet, this module ships tested, verified, and backed by a 12-month warranty.

Rugged Specifications Table

Comprehensive Protection Solutions

The CPM1A-30CDT-D-V1 is rarely deployed in isolation. In a fully integrated control cabinet, it operates alongside a range of complementary OMRON and compatible industrial components that together form a robust, fault-tolerant automation system.

For expanded I/O capacity, the CPM1A-20EDR1 and CPM1A-8ED expansion I/O units connect directly to the CPM1A bus, extending digital input and output points without requiring a separate controller. In applications where analog process variables — such as temperature, pressure, or flow — must be monitored, the CPM1A-MAD01 analog I/O expansion unit integrates seamlessly, providing 2 analog inputs and 1 analog output within the same compact form factor.

Power integrity is critical in harsh environments. The S8VS-06024 and S8VK-G06024 OMRON industrial DIN-rail power supplies deliver stable 24VDC to the CPM1A-30CDT-D-V1 and its peripheral devices, maintaining clean power even when upstream voltage fluctuates due to heavy motor loads or grid instability. In facilities with significant electromagnetic interference — such as those running large variable frequency drives (VFDs) or high-current welding equipment — pairing the controller with a dedicated line filter and surge suppressor is standard practice to protect the CPU and I/O circuits.

For communication and supervisory control, the CPM1A-30CDT-D-V1 supports OMRON’s Host Link protocol via its RS-232C port, enabling integration with OMRON NS-series HMI panels and SCADA systems. In multi-node networks, the CPM1A-CIF01 RS-232C adapter and CPM1A-CIF11 RS-422A/485 adapter extend connectivity to longer cable runs and multi-drop configurations — essential in large plant layouts where the PLC cabinet may be located far from the operator station.

Safety-critical installations often require the CPM1A-30CDT-D-V1 to work in conjunction with dedicated safety relays and emergency stop modules. OMRON’s G9SA series safety relay units provide category 3 or 4 safety circuit monitoring for light curtains, two-hand controls, and E-stop buttons, with their output contacts wired directly into the PLC’s input terminals for status feedback. Terminal blocks from the OMRON XW5T series and compatible Phoenix Contact or Weidmüller DIN-rail terminal modules provide secure, vibration-resistant field wiring termination within the control cabinet.

For installations requiring motion control, the CPM1A-30CDT-D-V1’s high-speed counter inputs (up to 20 kHz) support direct connection to incremental encoders and pulse-output servo drives, making it suitable for positioning tasks on conveyor indexers, packaging machines, and CNC auxiliary axes without requiring a dedicated motion controller.

Application in Critical Infrastructure

The OMRON CPM1A-30CDT-D-V1 has established a long service record across the most demanding sectors of critical infrastructure worldwide.

In oil and gas upstream operations, compact PLCs of this class are deployed in wellhead control panels, chemical injection skids, and pipeline valve actuator cabinets. The CPM1A-30CDT-D-V1’s wide operating temperature range and vibration tolerance make it suitable for remote field installations where ambient conditions are unpredictable and maintenance access is infrequent. Its low power consumption and DC-only power supply simplify integration with solar or battery-backed panel power systems common in remote locations.

In mining and mineral processing, the controller manages conveyor belt interlocks, crusher sequencing, and pump station automation. The combination of NPN transistor outputs and high-speed counter inputs allows direct interfacing with proximity sensors and encoder feedback from belt speed monitors — without additional signal conditioning hardware. The CPM1A-30CDT-D-V1’s shock and vibration ratings align with the mechanical stress profiles typical of underground and open-pit mining environments.

In power generation and substation automation, the CPM1A-30CDT-D-V1 is used for auxiliary equipment control — cooling fan sequencing, battery room ventilation, transformer tap-changer interlocking, and alarm annunciation. Its CE and UL certifications satisfy the compliance requirements of most utility-grade installations, and its compact DIN-rail footprint minimizes panel space in densely populated relay rooms.

In water and wastewater treatment, the controller manages pump station duty/standby sequencing, chemical dosing pump control, UV disinfection system interlocking, and level-based alarm outputs. The high-humidity tolerance (up to 90% RH non-condensing) is particularly relevant in wet well pump stations and chemical storage rooms where condensation is a persistent challenge for electronic equipment.

In metallurgy and steel production, the CPM1A-30CDT-D-V1 handles auxiliary automation tasks on rolling mill lines, ladle transfer cars, and furnace charging systems. Its EMI immunity is especially valuable in environments dominated by large electric arc furnaces and high-current bus bars that generate intense electromagnetic fields capable of disrupting less robust control hardware.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping for verified warranty claims.

Q2: How is each CPM1A-30CDT-D-V1 unit tested before shipment?
Every unit undergoes a multi-point functional inspection prior to dispatch. Testing includes power-on verification, I/O point continuity checks, communication port validation, and visual inspection for physical damage or counterfeit indicators. Units that do not pass all inspection criteria are quarantined and not shipped. A test report is available upon request for critical procurement applications.

Q3: Is the CPM1A-30CDT-D-V1 compatible with existing CPM1A expansion units and OMRON programming software?
Yes. The CPM1A-30CDT-D-V1 is fully compatible with all CPM1A Series expansion I/O units, including analog and digital expansion modules. It is programmed using OMRON CX-Programmer software (CX-One suite), which supports ladder diagram, function block, and structured text programming. Existing CPM1A programs can be uploaded, modified, and downloaded without hardware changes.

Q4: Can long-term supply and replacement support be guaranteed for this model?
We maintain dedicated stock of CPM1A-30CDT-D-V1 units to support ongoing maintenance and emergency replacement requirements. For facilities running CPM1A-based systems, we recommend establishing a spare parts agreement to ensure availability during planned shutdowns or unplanned failures. Contact us to discuss volume pricing, reserved stock arrangements, and lead time commitments for your site’s specific requirements.
