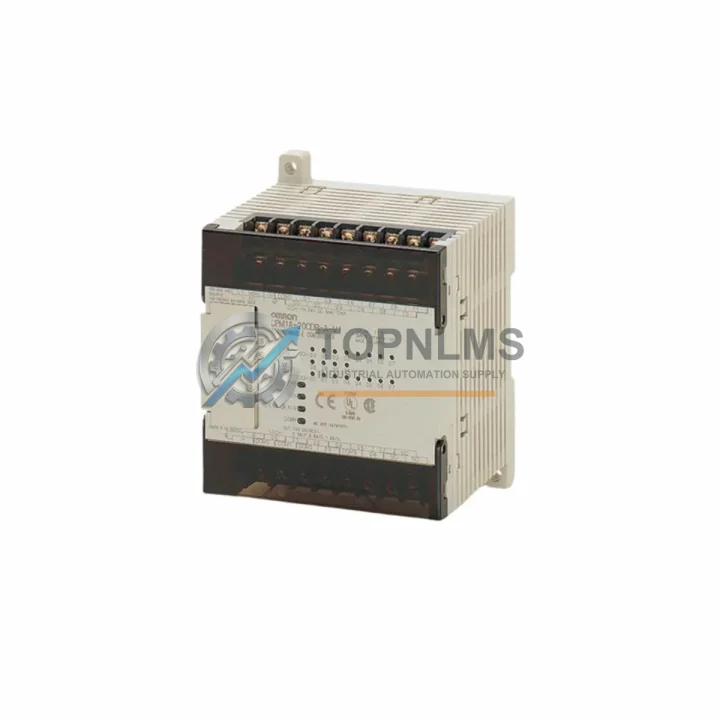

OMRON CPM1A-20CDR-A-V1 Ruggedized Relay Output PLC Module

Product Overview

OMRON CPM1A-20CDR-A-V1 Ruggedized Relay Output PLC Module for Harsh Industrial Environments

The OMRON CPM1A-20CDR-A-V1 is a compact, high-reliability programmable logic controller module engineered for continuous operation in the most demanding industrial environments. Featuring 20 I/O points with relay output configuration and AC power supply, this unit is purpose-built to deliver consistent, interference-resistant control performance across petrochemical plants, mining operations, power generation facilities, water treatment systems, and heavy manufacturing lines where downtime is never an option.

Designed as part of OMRON’s proven CPM1A series, the CPM1A-20CDR-A-V1 inherits a legacy of industrial resilience. Its relay output architecture provides galvanic isolation between the controller and field devices, making it inherently robust against voltage spikes, inductive load switching transients, and ground loop interference — conditions routinely encountered in motor control centers, conveyor drive panels, and high-current switching environments. The AC power input design further simplifies integration into standard industrial panel infrastructure without requiring additional DC conversion stages.

For facilities managing aging automation infrastructure, the CPM1A-20CDR-A-V1 represents exceptional spare-parts value: it is a direct drop-in replacement for failed or end-of-life CPM1A base units, preserving existing ladder logic, wiring, and cabinet layouts without costly re-engineering. TOPNLMS maintains dedicated stock of this module to support MRO procurement cycles, with pre-shipment functional testing, authenticity verification, and a 12-month quality warranty on every unit shipped.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated control architecture, the CPM1A-20CDR-A-V1 rarely operates in isolation. It is most commonly deployed alongside OMRON CPM1A expansion I/O units — such as the CPM1A-8ED (8-point DC input expansion) and the CPM1A-8ER (8-point relay output expansion) — to scale the I/O count without replacing the base CPU. This modular approach is especially valuable in phased automation projects where production lines are expanded incrementally, allowing engineers to add discrete I/O capacity while retaining the existing program and wiring infrastructure.

For communication-intensive applications, the CPM1A-20CDR-A-V1 interfaces seamlessly with OMRON’s CIF01 RS-232C adapter and supports Host Link protocol, enabling supervisory integration with SCADA systems and HMI panels. In facilities running mixed OMRON architectures, it can coexist within the same control cabinet as CJ2M or CP1E series PLCs, sharing common programming conventions and reducing engineering overhead during system upgrades.

Power integrity is critical in harsh environments. The CPM1A-20CDR-A-V1 is routinely paired with OMRON S8VS series industrial DIN-rail power supplies, which provide stable, regulated DC 24 V to field sensors and input circuits. In high-vibration environments such as mining conveyors or offshore platforms, supplementary surge protection devices and EMC filters are installed upstream to protect both the PLC and connected G2R or MY series relay modules from transient overvoltages and conducted interference.

For safety-critical zones, the CPM1A-20CDR-A-V1 is often integrated with OMRON G9SA safety relay units and F3SG safety light curtain controllers, forming a layered machine safety architecture that satisfies IEC 62061 and ISO 13849 requirements. Terminal block modules — such as OMRON XW2B series — provide organized, vibration-resistant wiring termination within the control cabinet, reducing the risk of loose connections under continuous mechanical stress and simplifying maintenance access during scheduled shutdowns.

In variable-speed drive applications, the CPM1A-20CDR-A-V1 coordinates with OMRON 3G3MX2 series inverters via discrete I/O signals, managing start/stop, fault reset, and speed reference switching for pump and fan control in water treatment and HVAC systems. This combination delivers energy-efficient, PLC-supervised motor management without requiring a dedicated fieldbus interface, making it accessible for facilities with limited network infrastructure.

Application in Critical Infrastructure

Oil & Gas and Petrochemical Plants: In upstream and midstream oil and gas facilities, the CPM1A-20CDR-A-V1 manages valve sequencing, pump interlocks, and emergency shutdown (ESD) pre-logic in environments characterized by explosive atmospheres, wide temperature swings, and persistent electromagnetic interference from high-power motors and variable frequency drives. Its relay output isolation ensures that field device faults do not propagate back into the controller logic, maintaining process integrity during fault conditions and protecting personnel in hazardous areas.

Mining and Mineral Processing: Underground and open-pit mining operations subject control equipment to extreme vibration, coal dust ingress, and humidity fluctuations. The CPM1A-20CDR-A-V1, installed in sealed IP54 or IP65 control enclosures, provides reliable conveyor belt control, crusher interlock management, and ventilation fan sequencing. Its compact footprint allows installation in space-constrained underground electrical rooms where larger DCS cabinets are impractical, and its shock resistance rating ensures continued operation through blasting-induced ground vibration.

Power Generation and Substation Automation: In thermal power plants and hydroelectric stations, the CPM1A-20CDR-A-V1 handles auxiliary equipment control — cooling water pumps, lube oil systems, and breaker status monitoring — where high-voltage switching events generate severe electromagnetic transients. The relay output design provides the necessary isolation to protect the CPU from these transients, ensuring continuous availability of auxiliary control functions even during grid fault events.

Water and Wastewater Treatment: Municipal water treatment facilities rely on the CPM1A-20CDR-A-V1 for dosing pump control, UV disinfection system sequencing, and sludge dewatering press management. The module’s tolerance for high-humidity environments and its ability to operate reliably on standard AC power simplifies installation in remote pump stations and chemical dosing rooms, where environmental conditions are consistently challenging and maintenance access is infrequent.

Metallurgy and Heavy Industry: Steel mills, aluminum smelters, and foundries present some of the harshest electrical environments in industry, with high-frequency interference from arc furnaces and induction heaters. The CPM1A-20CDR-A-V1’s noise immunity, combined with proper cabinet grounding and shielded cable practices, enables stable PLC operation for rolling mill auxiliary controls, ladle transfer car positioning, and cooling bed sequencing — applications where a single control failure can result in significant production loss and safety risk.

Security & Quality FAQ

Q1: What warranty coverage is provided for the OMRON CPM1A-20CDR-A-V1?
All CPM1A-20CDR-A-V1 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, we provide technical assessment, repair coordination, or unit replacement support to minimize your downtime.

Q2: How is each unit tested before shipment?
Every CPM1A-20CDR-A-V1 undergoes pre-shipment functional verification, including power-on testing, I/O point continuity checks, and communication port validation. Units sourced from authorized distribution channels are inspected for authenticity markers, firmware version consistency, and physical integrity. A test report is available upon request for critical infrastructure procurement.

Q3: Is the CPM1A-20CDR-A-V1 compatible with existing CPM1A expansion units and programming software?
Yes. The CPM1A-20CDR-A-V1 is fully compatible with all CPM1A series expansion I/O units and is programmed using OMRON CX-Programmer software (CX-One suite). Existing ladder logic programs developed for CPM1A base units can be transferred directly without modification, making this module an ideal drop-in replacement for aging or failed units in live production environments.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains dedicated stock of high-demand OMRON CPM1A series modules to support ongoing MRO (Maintenance, Repair & Operations) procurement. We offer priority allocation for customers with recurring requirements, and our technical team can assist with cross-referencing discontinued part numbers to compatible current-production alternatives where applicable. Contact us at [email protected] or +86 18359293191 to discuss volume pricing and lead time commitments.
