OMRON CP1H-X40DT-D Ruggedized CPU Module for Harsh Environments

Product Overview

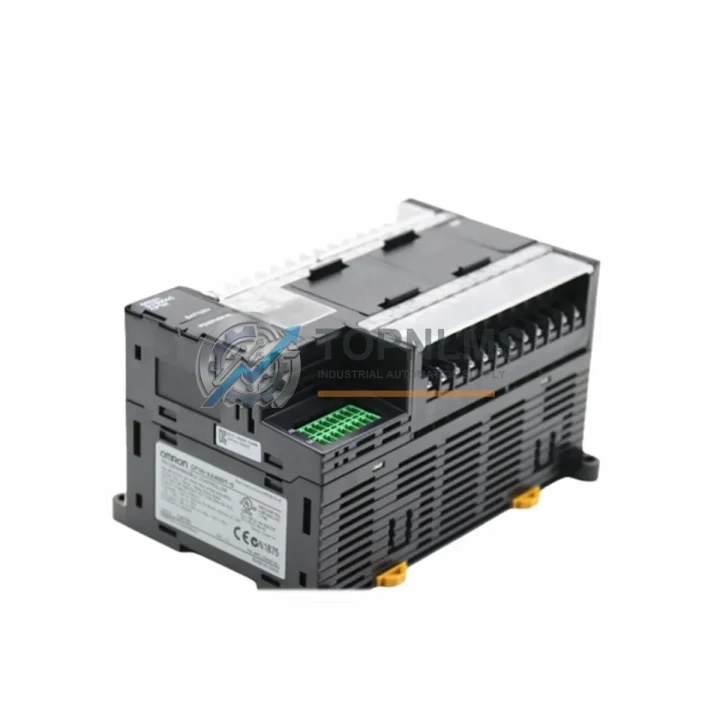

OMRON CP1H-X40DT-D Ruggedized CPU Module for Harsh Environments

The OMRON CP1H-X40DT-D is a high-performance, compact PLC CPU unit engineered for continuous, reliable operation in the most demanding industrial environments. Featuring 40 I/O points with NPN transistor output and a DC 24V power supply, this CP1H Series CPU module delivers the processing power and rugged resilience required for mission-critical automation in heavy industry, process control, and safety-sensitive applications.

Designed to withstand high-temperature fluctuations, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI), the CP1H-X40DT-D maintains stable cycle times and deterministic control logic even when installed in harsh plant environments. Its compact DIN-rail form factor makes it ideal for space-constrained control cabinets in oil & gas facilities, mining operations, water treatment plants, power distribution substations, and metallurgical processing lines.

With built-in high-speed pulse I/O, interrupt inputs, and support for structured ladder and function block programming via OMRON CX-Programmer, the CP1H-X40DT-D integrates seamlessly into both new automation projects and legacy system upgrades. Its robust CPU architecture supports real-time data acquisition, PID loop control, and motion sequencing — all within a single, field-proven module.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated control architecture, the CP1H-X40DT-D CPU module operates at the heart of a layered protection system. It connects directly to CP1W-40EDT NPN expansion I/O units to extend digital I/O capacity across large-scale production lines without sacrificing scan-cycle performance. For analog process control — such as temperature regulation in furnaces or pressure monitoring in hydraulic systems — the CP1W-MAD42 analog I/O unit pairs natively with the CP1H-X40DT-D to deliver 4–20 mA and 0–10V signal conditioning.

Power integrity is maintained through OMRON S8VK-series industrial switching power supplies, which provide stable DC 24V rail voltage even under fluctuating grid conditions common in heavy manufacturing environments. Upstream, OMRON G9SP-series safety controllers or NE1A-series safety network controllers can be integrated to enforce SIL-rated safety logic, ensuring the CP1H-X40DT-D operates within a certified safety architecture for machinery guarding and emergency stop circuits.

For field-level communication, the CP1H-X40DT-D supports CP1W-CIF11 RS-422/485 option boards for Modbus RTU communication with variable frequency drives (VFDs), OMRON 3G3MX2-series inverters, and third-party SCADA systems. In cabinet installations, OMRON G2R-series relay modules and XW2B terminal blocks provide clean signal isolation and wiring consolidation, reducing the risk of cross-talk and ground loops in high-noise environments. Where DeviceNet or EtherNet/IP connectivity is required, the CP1W-DNET21 DeviceNet master unit extends the CP1H platform into distributed I/O networks across large plant floors.

Together, these components form a cohesive, field-proven automation ecosystem — all sourced, tested, and stocked by TOPNLMS for rapid deployment.

Application in Critical Infrastructure

The CP1H-X40DT-D has established a strong track record across critical infrastructure sectors where unplanned downtime carries severe operational and safety consequences.

In oil and gas facilities, it controls wellhead automation, pipeline valve sequencing, and compressor station logic — environments characterized by explosive atmospheres, wide temperature swings, and persistent vibration from rotating machinery. When installed in appropriately rated enclosures, the CP1H-X40DT-D provides the deterministic control response required for safe process isolation and emergency shutdown coordination.

In mining operations, the module manages conveyor belt interlocks, crusher sequencing, and ventilation fan control in underground and open-pit environments where dust ingress, moisture, and mechanical shock are constant challenges. Its vibration-rated design and wide operating temperature range make it a preferred choice for mobile plant and fixed infrastructure alike.

In power generation and distribution substations, the CP1H-X40DT-D handles transformer cooling control, circuit breaker status monitoring, and auxiliary equipment sequencing. Its strong EMI immunity — compliant with IEC 61000-4 standards — ensures reliable operation in proximity to high-voltage switching equipment and large transformer banks.

In water and wastewater treatment plants, it orchestrates pump station control, chemical dosing sequences, and filtration cycle management. The module’s support for PID control loops and analog I/O expansion makes it well-suited for continuous process environments where precise flow and level regulation is essential.

In metallurgical and steel processing plants, the CP1H-X40DT-D withstands radiant heat, heavy vibration from rolling mills, and the intense electromagnetic fields generated by arc furnaces and induction heating systems — delivering consistent cycle times and fault-free operation across multi-shift, 24/7 production schedules.

Security & Quality FAQ

Q1: What warranty coverage is provided for the CP1H-X40DT-D?
All CP1H-X40DT-D units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for installation, commissioning, and fault diagnosis throughout the warranty period.

Q2: How is each unit tested before shipment?
Every CP1H-X40DT-D undergoes a pre-shipment functional verification process, including power-on testing, I/O point continuity checks, and communication port validation. Units are inspected for physical integrity and packaged in anti-static, shock-resistant materials to ensure they arrive in field-ready condition. A test report is available upon request for critical procurement projects.

Q3: Is the CP1H-X40DT-D compatible with existing OMRON CP1H and CP1E systems?
Yes. The CP1H-X40DT-D is fully compatible with the OMRON CP1W expansion unit family, including digital I/O units, analog modules, communication option boards, and special function units. It is programmable via OMRON CX-Programmer and CX-One software suite, ensuring seamless integration into existing CP1H-series architectures and straightforward migration from legacy CPM1A or CQM1H systems.

Q4: Can TOPNLMS support long-term supply and replacement needs?
Yes. TOPNLMS maintains dedicated stock of CP1H-series CPU modules and compatible expansion units to support both immediate replacement requirements and planned maintenance programs. We serve OEMs, system integrators, and end-user maintenance teams with consistent lead times, competitive pricing, and technical documentation. For volume procurement or long-term supply agreements, contact our team directly to discuss availability and scheduling.
