OMRON CP1E-N40SDR-A Ruggedized PLC CPU Module for Harsh Environments

Product Overview

OMRON CP1E-N40SDR-A Ruggedized PLC CPU Module for Harsh Environments

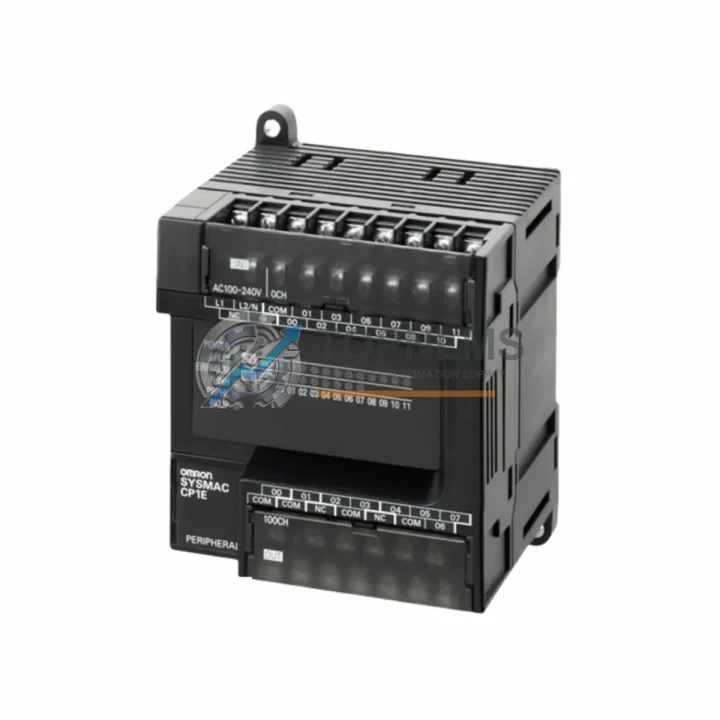

The OMRON CP1E-N40SDR-A is a compact, ruggedized programmable logic controller (PLC) CPU unit engineered for demanding industrial environments where reliability is non-negotiable. Featuring 40 I/O points with relay output and AC power supply, this CP1E Series module delivers consistent, high-integrity control performance across a wide range of harsh-environment applications — from high-temperature foundry floors and high-humidity water treatment facilities to dust-laden mining operations and vibration-intensive heavy manufacturing lines.

Designed to OMRON’s exacting industrial standards, the CP1E-N40SDR-A maintains stable operation under continuous electromagnetic interference (EMI), voltage fluctuations, and mechanical shock — conditions that routinely compromise lesser controllers. Its relay output architecture provides robust, galvanically isolated switching for inductive loads, motor starters, and solenoid valves, making it a trusted backbone for safety-critical and continuous-production control systems.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the CP1E-N40SDR-A rarely operates in isolation. It is most effective when integrated as part of a layered, protection-oriented control system. On the power supply side, pairing this CPU with an OMRON S8VS-series industrial switching power supply ensures clean, regulated 24 VDC for sensor and I/O circuits, shielding the CPU from upstream grid disturbances common in heavy industrial facilities.

For I/O expansion in larger panel configurations, the OMRON CP1W-40EDT expansion I/O unit and CP1W-16ER relay output expansion module extend the system’s reach without compromising the CP1E’s deterministic scan cycle. Where analog process variables — temperature, pressure, flow — must be monitored, the CP1W-MAD42 analog I/O unit integrates seamlessly, enabling closed-loop PID control directly within the CP1E environment.

Communication integrity in electrically noisy environments is maintained through the OMRON CP1W-CIF11 RS-422A/485 serial communication board, which supports Modbus RTU and OMRON Host Link protocols for reliable long-distance data exchange with SCADA systems, HMIs, and variable frequency drives (VFDs). For facilities already running OMRON DeviceNet or CompoNet networks, the corresponding CP1W communication option boards allow the CP1E-N40SDR-A to participate as a master or slave node without additional gateways.

Safety integrity is further reinforced when the CP1E-N40SDR-A is deployed alongside OMRON G9SA-series safety relay modules, which handle emergency-stop, light-curtain, and two-hand-control safety loops independently of the main PLC logic — a critical separation required by IEC 62061 and ISO 13849 in machinery safety applications. For motor and drive protection, OMRON 3G3MX2-series compact inverters communicate directly with the CP1E via RS-485, enabling coordinated speed control and fault diagnostics from a single programming environment.

Terminal connectivity within the control cabinet is standardized using OMRON XW5T-series push-in terminal blocks, which reduce wiring time and vibration-induced loosening — a persistent failure mode in mobile equipment and compressor skids. Together, these components form a cohesive, field-proven ecosystem that maximizes uptime and simplifies maintenance in the most demanding industrial settings.

Application in Critical Infrastructure

The CP1E-N40SDR-A has established a strong track record across critical infrastructure sectors where unplanned downtime carries severe operational and safety consequences.

In oil and gas upstream and midstream facilities, this module controls wellhead valve sequencing, compressor station auxiliary systems, and pipeline pig-launcher interlocks. Its relay outputs handle the high-inrush currents of solenoid-operated ball valves and motor-operated actuators without the contact degradation seen in transistor-output alternatives under inductive load conditions.

In mining and mineral processing, the CP1E-N40SDR-A manages conveyor belt interlocking, crusher feed control, and sump pump automation in environments characterized by pervasive coal dust, silica particulate, and ground vibration. Panel-mount installation within IP54 or IP65 enclosures — combined with the module’s inherent vibration resistance — ensures continuous operation through blasting cycles and heavy equipment movement.

In power generation and substation automation, the module serves as a local controller for auxiliary systems including cooling fans, battery room ventilation, and transformer oil pump sequencing. Its compliance with IEC 61000-4 EMC standards makes it suitable for installation in close proximity to high-voltage switchgear and bus bars.

In municipal and industrial water treatment, the CP1E-N40SDR-A automates dosing pump sequencing, UV disinfection system interlocking, and filter backwash cycles. Its wide operating humidity tolerance and resistance to chemical vapors — when housed in appropriate enclosures — make it a reliable choice for wet process areas.

In metallurgy and steel production, where ambient temperatures near furnaces and casting lines routinely approach the upper limits of standard industrial equipment, the CP1E-N40SDR-A’s 55 °C operating ceiling and robust thermal design support continuous 24/7 operation without forced cooling in most panel configurations.
