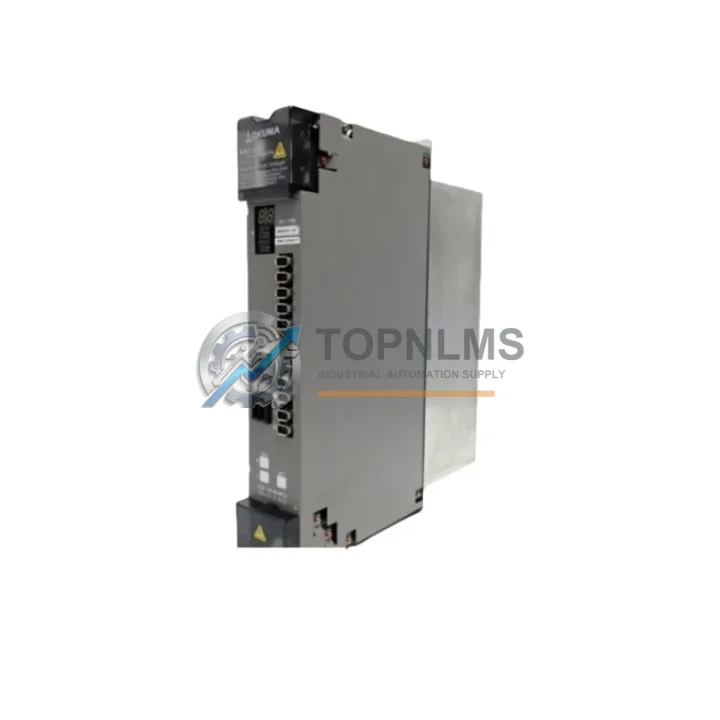

Okuma MIV0101A-1-B5 Ruggedized AC Servo Drive Module

Product Overview

Okuma MIV0101A-1-B5 Ruggedized AC Servo Drive Module: Industrial Resilience for Harsh Environments

The Okuma MIV0101A-1-B5 is a high-performance AC servo drive from Okuma’s proven MIV Series, engineered to deliver precise axis control and sustained reliability in the most demanding industrial environments. Designed as a dedicated axis amplifier for Okuma CNC systems, this module maintains stable servo loop performance under conditions of elevated temperature, high humidity, airborne particulate contamination, mechanical vibration, and electromagnetic interference — conditions routinely encountered in metalworking shops, heavy machining centers, and continuous production lines.

Whether deployed in a tightly integrated CNC control cabinet or as a replacement unit in an aging multi-axis servo system, the MIV0101A-1-B5 delivers the torque response, current regulation, and feedback fidelity that precision machining demands. Its compact form factor and standardized connector interface make it a direct-fit replacement for failed or degraded axis amplifiers in Okuma OSP-series CNC platforms, minimizing machine downtime and restoring full production capacity without costly retrofits.

Rugged Specifications Table

Comprehensive Protection Solutions

The MIV0101A-1-B5 does not operate in isolation — it is one critical node in a tightly coordinated servo and control architecture. In a fully configured Okuma CNC system, this axis amplifier works in concert with the Okuma OSP-P300S CNC controller, which issues real-time position and velocity commands via the proprietary MECHATROLINK or Fanuc-compatible serial bus. The servo feedback loop is closed through high-resolution Okuma BL-series absolute encoders mounted directly on the servo motor shaft, ensuring sub-micron positional accuracy even after extended power cycles.

Within the control cabinet, the MIV0101A-1-B5 is typically installed alongside companion axis amplifiers such as the Okuma MIV0201A-1-B5 (for higher-current axes) and the Okuma MIV0301A-1-B5, all sharing a common DC bus supplied by a regenerative power supply unit. This shared-bus topology improves energy efficiency and reduces heat dissipation in the cabinet. The DC bus is protected by coordinated Okuma PSM (Power Supply Module) units that handle regenerative braking energy and protect downstream amplifiers from voltage transients caused by rapid deceleration cycles.

For I/O integration, the MIV0101A-1-B5 interfaces with Okuma I/O expansion modules that manage machine tool limit switches, tool change signals, and safety interlock inputs. These I/O modules communicate over the internal CNC bus, ensuring deterministic signal timing critical for synchronized multi-axis operations. In installations where functional safety is mandated — such as those requiring SIL 2 compliance under IEC 62061 — the servo drive system is complemented by dedicated safety relay modules and safe torque-off (STO) circuits that provide hardware-level axis inhibit without requiring a full system power-down.

Communication integrity across the machine is maintained through Okuma OPUS communication boards and compatible industrial Ethernet switches rated for DIN-rail cabinet mounting. Where legacy RS-232 or RS-422 serial communication is still in use, serial communication interface cards bridge the MIV series amplifiers to upstream supervisory control systems. Terminal blocks and Phoenix Contact or equivalent DIN-rail terminal modules provide secure, vibration-resistant wiring termination points for all signal and power conductors entering the servo drive cabinet.

Application in Critical Infrastructure

The Okuma MIV0101A-1-B5 finds its most demanding deployments in sectors where machine downtime carries severe operational and financial consequences. In aerospace component manufacturing, this axis amplifier drives the precision feed axes of five-axis machining centers producing turbine blades, structural airframe brackets, and landing gear components — applications where positional repeatability of ±1 µm is non-negotiable and servo fault recovery must occur within milliseconds to prevent scrap.

In automotive powertrain production, MIV Series drives are embedded in transfer lines and flexible manufacturing cells running 24 hours a day, 365 days a year. The thermal management design of the MIV0101A-1-B5 allows it to sustain rated output current continuously without derating, even in poorly ventilated sub-panels where ambient temperatures routinely reach 45°C during summer production peaks.

In heavy metalworking and mold manufacturing environments, the drive contends with significant electromagnetic interference generated by large spindle motors, EDM machines, and induction heating equipment operating in close proximity. The MIV0101A-1-B5’s internal EMI filtering and the use of shielded motor cables with proper grounding practices ensure that servo position errors caused by conducted or radiated interference remain below detectable thresholds.

For energy sector applications — including turbine component machining for wind and gas power generation — the reliability of the servo axis directly impacts the dimensional accuracy of critical rotating parts. Procurement teams in these sectors prioritize suppliers who can demonstrate verified stock availability, pre-shipment functional testing, and a credible warranty program, all of which TOPNLMS provides as standard for every MIV0101A-1-B5 unit dispatched.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the MIV0101A-1-B5?
The 12-month warranty covers all verified manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the unit fails to perform to its rated specifications within the warranty period, TOPNLMS will provide a replacement unit or full refund after technical evaluation. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated input tolerance, or physical mishandling.

Q2: How is each unit tested before shipment?
Every MIV0101A-1-B5 unit undergoes a pre-shipment functional verification process that includes power-on self-test, output stage integrity check, encoder feedback signal validation, and communication bus response testing where applicable. Units that fail any test parameter are quarantined and not dispatched. A test report is available upon request for customers with quality management system requirements.

Q3: Is the MIV0101A-1-B5 compatible with my existing Okuma CNC system?
The MIV0101A-1-B5 is designed for integration within Okuma OSP-series CNC platforms that utilize the MIV Series servo amplifier architecture. Compatibility depends on the specific OSP controller version, DC bus configuration, and motor pairing in your installation. TOPNLMS technical support can assist with compatibility verification based on your machine model and existing servo system documentation — contact us before ordering if you have any uncertainty.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Yes. TOPNLMS maintains dedicated inventory of MIV Series components to support both emergency replacement and planned maintenance procurement programs. For customers managing fleets of Okuma CNC machines, we offer reserved stock arrangements and priority dispatch agreements. Contact our team to discuss volume pricing, lead time commitments, and consignment stocking options tailored to your maintenance schedule.
