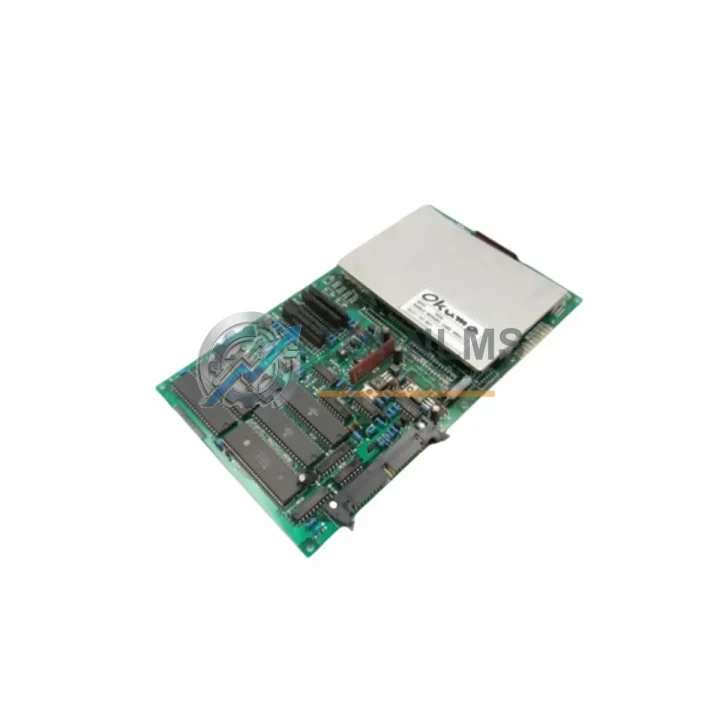

OKUMA E0227-702-008 Replacement for OSP-P Series

Product Overview

OKUMA E0227-702-008 Replacement for OSP-P Series: Seamless Transition & Legacy System Compatibility

When your OKUMA OSP-P Series CNC control system flags a memory board fault or your maintenance team identifies the E0227-702-008 as the root cause of an unplanned stoppage, every hour of downtime translates directly into lost production capacity. The E0227-702-008 is the dedicated memory board for OKUMA’s OSP-P platform — a control architecture widely deployed across turning centers, machining centers, and multi-axis CNC systems in precision manufacturing environments. This replacement unit is sourced, inspected, and dispatched to restore your machine to full operational status with minimal intervention on the shop floor.

The OSP-P control family — including OSP-P200L, OSP-P200M, OSP-P300L, and OSP-P300M variants — relies on the E0227-702-008 memory board to manage part program storage, parameter retention, and system initialization sequences. A failed or corrupted memory board in this position typically manifests as alarm codes related to memory read/write errors, failure to retain tool offsets after power cycling, or inability to load NC programs from external media. Replacing the E0227-702-008 with a verified unit resolves these fault conditions without requiring a full control replacement or costly field service intervention.

Compatibility Comparison Table

Seamless Upgrade Solutions

A memory board replacement on an OSP-P system rarely occurs in isolation. In practice, field engineers conducting a retrofit or emergency repair will often assess the condition of adjacent boards and modules within the same control cabinet. The OSP-P control architecture is modular by design, and the E0227-702-008 interfaces directly with the CPU board — typically an E4809-045 or equivalent OSP-P main processor card — which handles real-time interpolation and axis command generation. If the CPU board shows signs of capacitor aging or intermittent resets alongside the memory fault, addressing both simultaneously reduces the risk of a repeat stoppage.

The OSP-P I/O interface board, such as the E4809-032 series, manages the digital input/output signals between the CNC control and the machine’s relay logic, limit switches, and operator panel. During a memory board swap, it is good practice to verify that the I/O board’s connectors are seated correctly and that no alarm history points to I/O communication errors, as these can sometimes be misdiagnosed as memory faults. Similarly, the OSP-P communication board — responsible for RS-232C or Ethernet DNC connectivity — should be checked if the machine was previously used with a direct NC program transfer setup, since a memory board replacement may require re-establishing the DNC communication parameters.

For machines where the OSP-P control is paired with OKUMA’s proprietary servo drive system, the OKUMA Servo Drive Unit (SDU) and associated axis amplifier cards should be inspected as part of the broader maintenance window. The E0227-702-008 replacement does not affect servo tuning parameters stored in the drive units, but re-initialization of the CNC after a memory board swap may prompt the control to re-read axis parameters from the servo interface. Having the OKUMA parameter backup file — typically saved via the OSP-P’s built-in backup utility or an external programming device — on hand before the swap is strongly recommended.

The OSP-P operator panel interface board and the machine operator panel (MOP) itself are unaffected by the memory board replacement, but technicians should confirm that the panel’s E-stop circuit and mode selector signals are functioning correctly before returning the machine to production. In multi-axis configurations such as twin-turret or mill-turn centers, the OSP-P’s axis control cards — including the E4809-036 or similar interpolation expansion boards — should also be verified for firmware compatibility with the replacement memory board, particularly if the unit being installed carries a different firmware revision than the original.

For facilities managing a fleet of OKUMA machines, it is advisable to maintain a small buffer stock of the E0227-702-008 alongside other high-wear OSP-P components such as the battery backup unit (typically a 3.6V lithium cell assembly), the OSP-P power supply board, and the CNC cooling fan assembly. These components have predictable service lives and their simultaneous failure during a memory board event is not uncommon in machines with 10+ years of continuous operation.

Retrofit Guidance FAQ

Q: Do I need to re-enter all machine parameters after replacing the E0227-702-008?
A: Yes, in most cases. The memory board stores CNC parameters, tool offsets, and part programs. Always perform a full parameter backup using the OSP-P backup utility before removing the original board. If the original board has failed completely and no backup exists, OKUMA’s parameter defaults for your specific machine model will need to be re-entered manually — your machine’s maintenance manual contains the factory parameter list.

Q: Is the E0227-702-008 compatible with both OSP-P200 and OSP-P300 series controls?
A: The E0227-702-008 is designed for the OSP-P platform. Compatibility with specific OSP-P200 vs. OSP-P300 variants depends on the board revision. Please confirm your control’s model number and existing board revision before ordering. Our technical team can assist with cross-referencing.

Q: Will replacing the memory board affect my servo drive tuning or axis parameters?
A: Servo drive parameters stored within the SDU units are independent of the CNC memory board. However, axis parameters stored in the CNC (such as backlash compensation, pitch error compensation, and software travel limits) are held on the memory board and will need to be restored from backup after replacement.

Q: Can I replace the E0227-702-008 myself, or do I need a certified OKUMA technician?
A: The physical swap is straightforward — the board is a plug-in card with no soldering required. However, the parameter restoration process requires familiarity with the OSP-P interface. Facilities with in-house CNC maintenance staff typically handle this without external support. For first-time replacements, having the machine’s maintenance manual and a verified parameter backup file is essential.

Q: What alarms or symptoms indicate the E0227-702-008 needs replacement?
A: Common indicators include memory read/write alarm codes on the OSP-P display, failure to retain tool offsets or work coordinates after power-off, inability to load or save NC programs, and system boot failures where the control halts at the memory initialization stage. Intermittent alarms that clear on power cycle but recur are also a strong indicator of memory board degradation.

Q: How long does shipping take?
A: We ship from Xiamen, China. Standard international express delivery (DHL / FedEx) typically reaches most destinations within 3–7 business days. Expedited options are available for urgent requirements — contact us directly for lead time confirmation.

Warranty Assurance

Every E0227-702-008 replacement unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each board undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and component-level quality. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with a target response time of 1 business day for initial assessment. Defective units returned within the warranty period will be replaced at no additional cost, subject to confirmation that the fault is not attributable to installation error, electrical overstress, or physical damage. Detailed return and replacement procedures are provided at the time of purchase.

For procurement teams, TOPNLMS maintains stock of the E0227-702-008 and related OSP-P components to support both planned maintenance schedules and emergency breakdown requirements. Volume pricing and blanket order arrangements are available for facilities managing multiple OKUMA machines. All units are shipped with documentation confirming part number, inspection status, and warranty terms.

To place an order, request a quotation, or verify compatibility for your specific machine configuration, contact our technical sales team directly.
